ASUS PRO WS WRX90E-SAGE SE /AMD STR5,WRX90,PCIE 5.0,WS MB | 90MB1FW0-M0EAY0

The ASUS Pro WS WRX90E-SAGE SE EEB Motherboard. With support for AMD’s Ryzen Threadripper PRO 7000 WX-Series processors through the WRX90 chipset, up to 2TB of quad-channel DDR5 RAM across the eight RAM slots, and four M.2 storage slots, this motherboard can accommodate builds of varying performance to fit your needs. The Pro WS WRX90E-SAGE SE is compatible with both Windows 10 (64-bit) and 11 operating systems.

Form Factor and Expansion

The EEB form factor provides ample room for the larger Threadripper CPUs with up to 96-cores, eight RAM slots, and large VRMs that help cool your components. Six PCIe 5.0 x16 slots are perfect for storage expansion or powerful graphics cards, and there is one PCIe 5.0 x16 slot in x8 mode.

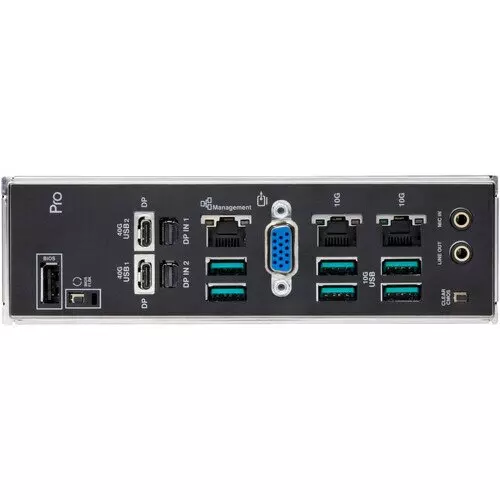

Rear I/O

The rear panel of the motherboard offers access to a wide variety of ports to enhance your workstation.
Two USB4 ports reach speeds up to 40 Gb/s for peripherals like external SSDs
Six USB-A 3.2 Gen 2 ports offer 10 Gb/s
A VGA output and two mini DisplayPort inputs connect the CPU’s integrated graphics to external displays.
Dual Intel 10 GbE Ethernet ports and a single Realtek Gigabit Ethernet port provide wired connections to the internet.
Two audio jacks allow you to access the Realtek ALC1220P 5.1 audio.

Long-Term Storage and Short-Term Memory

Four M.2 PCIe 5.0 x4 slots and four SATA III ports provide a well of potential long-term storage space. Additionally, a SlimSAS slot supports a range of NVMe devices such as industrial-grade drives, servers, and advanced networking equipment to help you build your digital asset library. Eight slots have ECC support and can utilize up to 2TB of quad-channel DDR5 RAM which greatly improves your workstation’s multitasking capabilities. This means running multiple applications at once, having multiple instances of applications open such as separate internet tabs or photoshop projects, and switching between them will perform more consistently.

Robust Power and Thermal Design

32+3+3+3 power stages with two 8-pin power connectors for the CPU provide plenty of power to the most important components of your build, while large multi-layered VRMs, heat sinks, and thermal pads keep the chipset, M.2 storage drives, and numerous PCIe slots cool.
Server-Grade IPMI Remote Management and Onboard BMC
A dedicated LAN port links to an onboard AST2600 BMC controller for hardware and software-level management. Additionally, the ASUS Control Center Express software enables real-time monitoring and management.

PCIe Q-Release Slim

The graphics card of your system can be removed by directly pulling up instead of pressing a PCIe latch for a streamlined and more consistent user experience.
