MSI PRO B650M-A WIFI | 911-7D77-007/011/12/017

SKU: N/A
Model Number: N/A
  • AM5 Micro-ATX Motherboard
  • AMD B650 Chipset
  • 4 x 2-Channel DDR5 Slots
  • 128GB Max Memory
  • Wi-Fi 6E
  • 2x PCI-E x16
  • 2x M.2
  • 1x HDMI
  • 1x DP
  • USB 23.2/2.0

610.00 AED

Quantity:

Payment Methods:

610.00 AED

Additional services:
Golf Simulator Solutions

Premium indoor golf simulator solutions with complete installation and support across Dubai & UAE.

325.00 AED

Flight Simulator Solutions

Professional flight simulator installation and support across Dubai & UAE.

325.00 AED

IT Support

Reliable IT support in the UAE for gaming, office, and PC environments.

215.00 AED

IT AMC Services

Proactive annual IT support services for businesses and gaming environments in Dubai & UAE.

100.00 AED

Coming Soon…

Quantity:

Payment Methods:

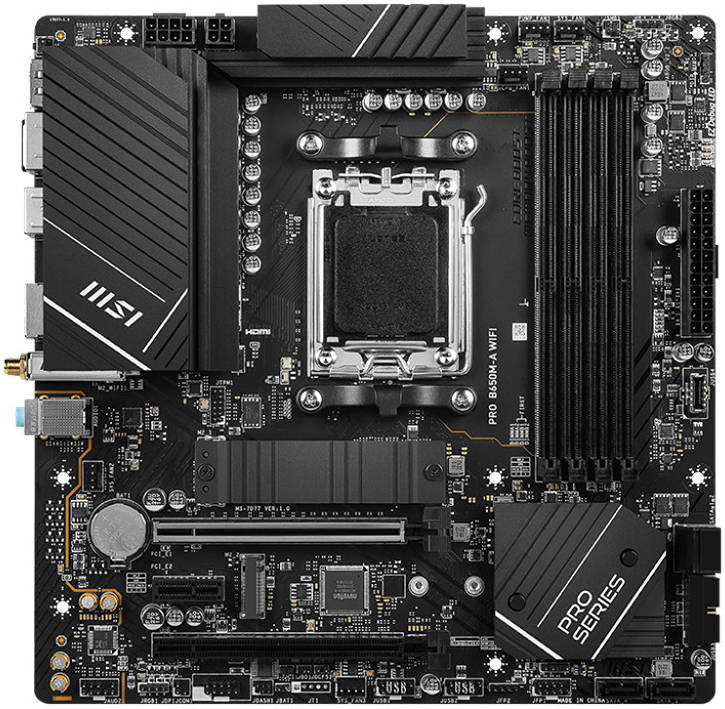

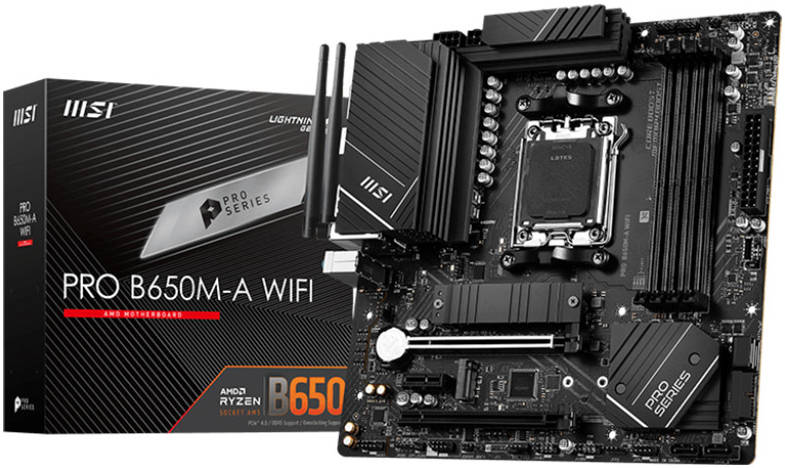

MSI PRO B650M-A WIFI

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

  • Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 7200+MHz (OC)
  • Enhanced Power Design: 8+2+1 Duet Rail Power System, 8 pin + 4 pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper
  • Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr
  • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Chipset AMD B650
CPU Supports AMD Ryzen™ 7000 Series Desktop Processors
Socket AM5
Memory • 1DPC 1R Max speed up to 6400+ MHz
• 1DPC 2R Max speed up to 5800+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 4000+ MHz
4x DDR5, Maximum Memory Capacity 128GB
Max. overclocking frequency:
Onboard Graphics 1x DisplayPort
1x HDMI
Support HDMITM 2.1, maximum resolution of 4K 60Hz
Supports DP1.4, maximum resolution of 4K 60Hz
Expansion Slots 1x PCI-E x1 slot
2x PCI-E x16 slot
PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
Storage 2x M.2 slot
4x SATA 6G port
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
RAID Support Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
USB 1x USB 3.2 Gen2 Type C (Front)
2x USB 3.2 Gen1 Type A (Front)
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
4x USB 3.2 Gen2 Type A (Rear)
LAN Realtek® 8125BG 2.5G LAN
Wireless AMD Wi-Fi 6E
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports MU-MIMO TX/RX
The Wireless module is pre-installed in the M.2 (Key-E) slot
Bluetooth Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11
Bluetooth v5.2
Audio 7.1-Channel High Definition Audio
Realtek® ALC897 Codec
Internal IO 1x Chassis Intrusion (JCI)
1x Com Port (JCOM)
1x CPU Fan
1x Front Audio (JAUD)
1x Power Connector(ATX_PWR)
1x Pump Fan
1x TPM pin header(Support TPM 2.0)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x Front Panel (JFP)
2x Power Connector(CPU_PWR)
2x RGB LED connector(JRGB)
3x System Fan
LED Features 4x EZ Debug LED

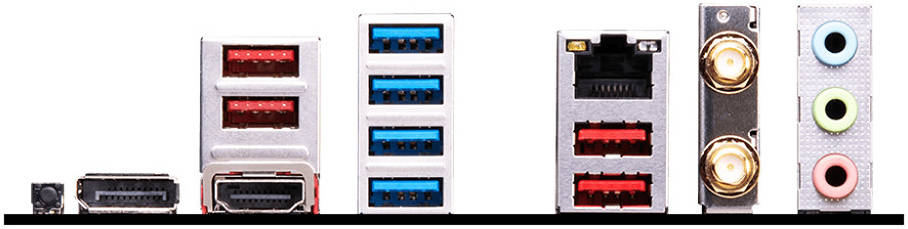

Back Panel I/O Ports 1 x DisplayPort
2.5G LAN
Audio Connectors
Flash BIOS Button
HDMI
USB 3.2 Gen 1 5Gbps (Type-A)
USB 3.2 Gen 2 10Gbps (Type-A)
Wi-Fi / Bluetooth
Operating System Support for Windows® 11 64-bit, Windows® 10 64-bit
