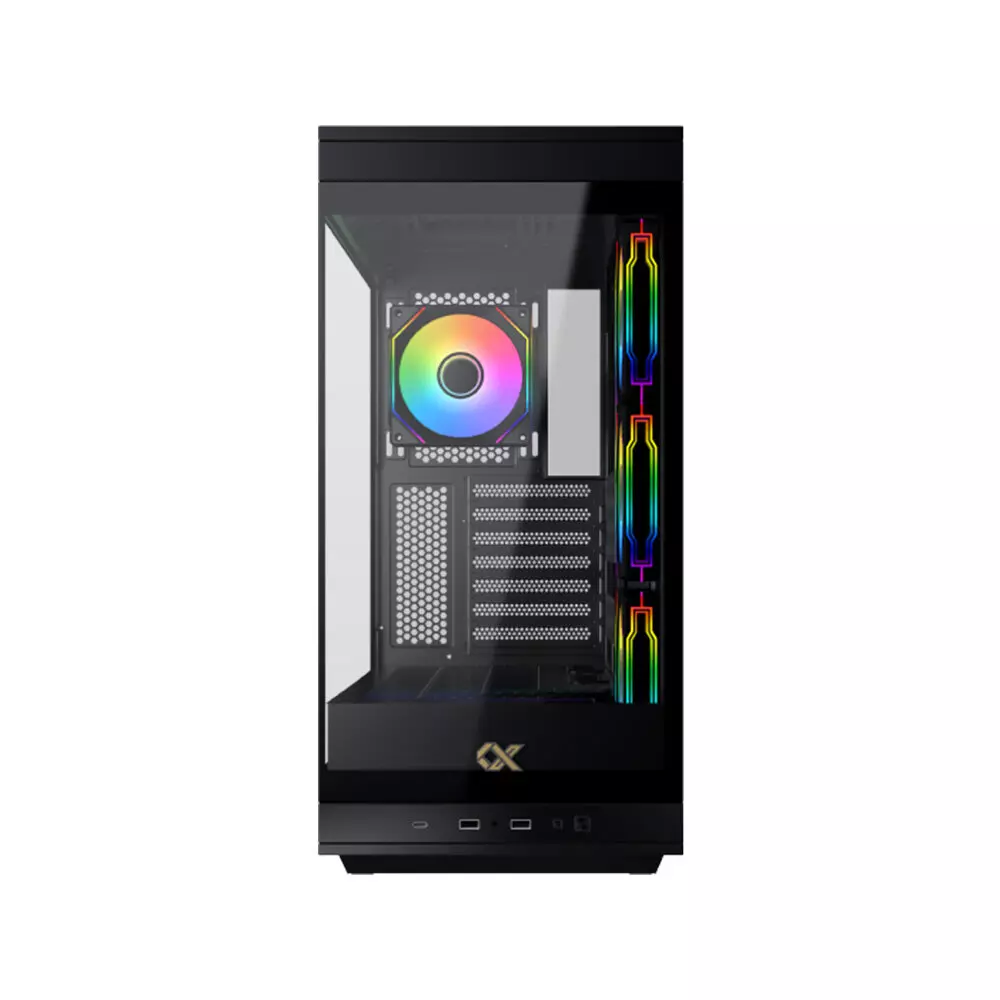

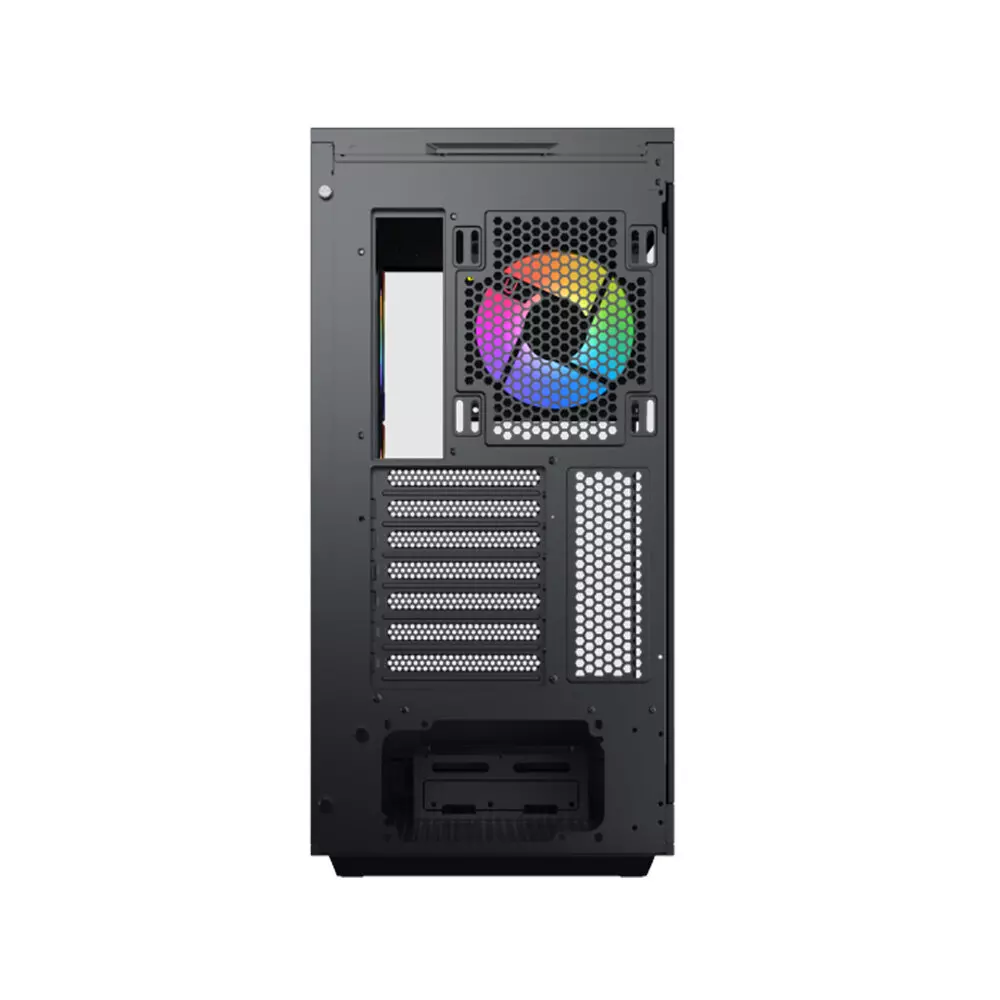

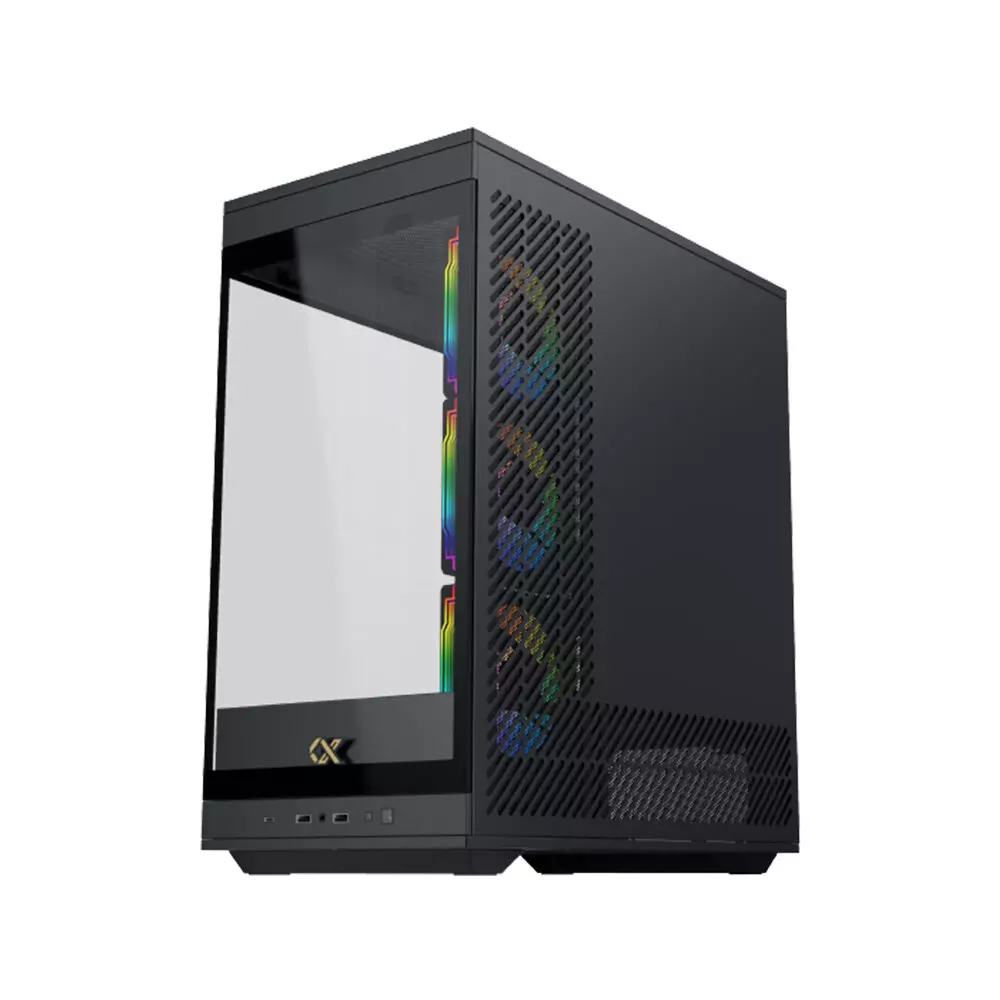

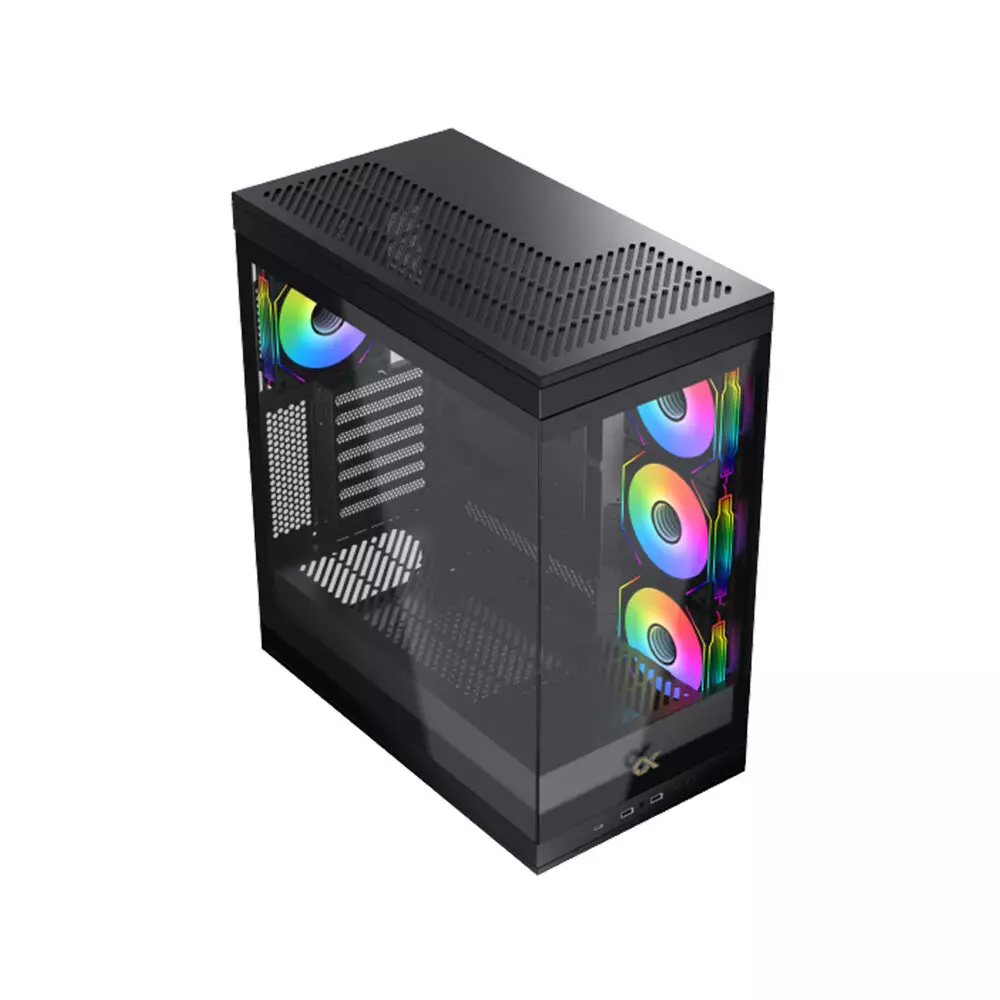

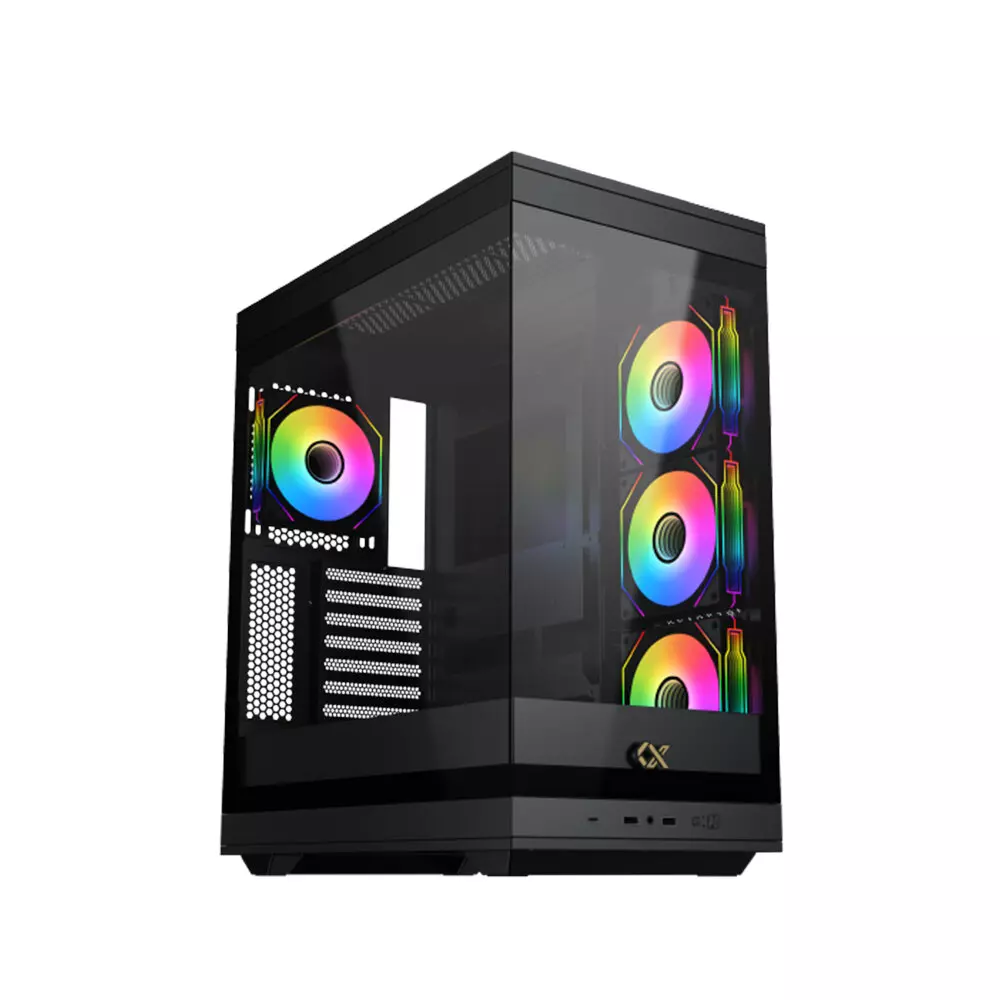

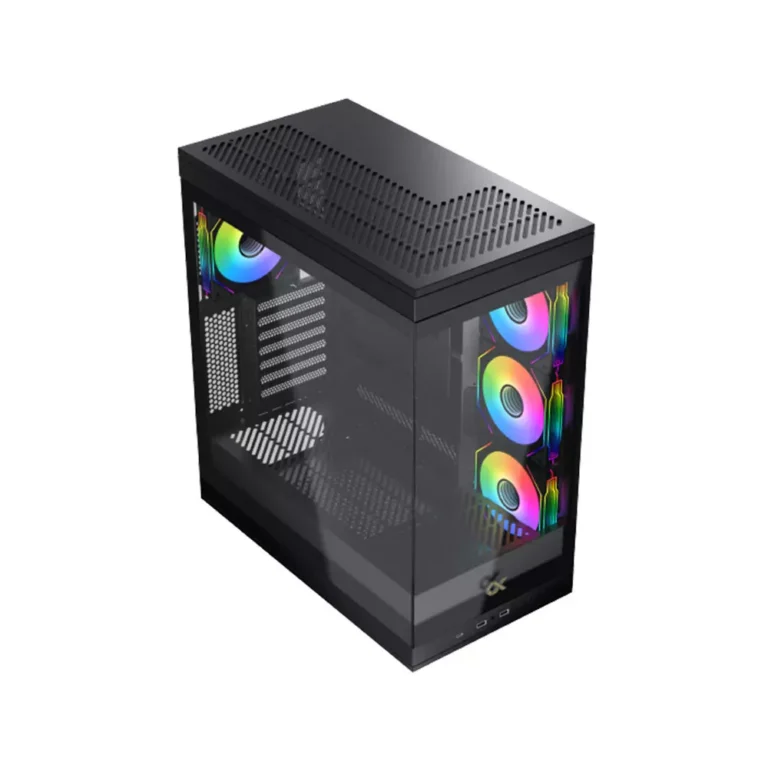

Xigmatek Meta Pre-Installed Fans TG E-ATX Case – Black | EN45066

Discover the Xigmatek Meta EN45066, a versatile and high‑performance E‑ATX gaming chassis that combines elegant aesthetics with robust cooling and flexible hardware compatibility. With dual tempered glass panels, multiple ARGB fans, and a design built for airflow, the Meta is engineered to support demanding builds while showcasing your components in style.

Overview & Design

• Motherboard Support: E‑ATX, ATX (with back‑plug support), Micro‑ATX & Mini‑ITX

• Tempered Glass Panels: Front and left side glass to expose internal components and RGB lighting

• Pre‑installed Fans: 4 × 120 mm ARGB fans (3 reversed mounted on the MB panel + 1 rear) for immediate lighting and airflow

• Mesh / Ventilation Design: Supporting “superior airflow and ventilation design” via mesh and strategically placed fan mounts

Cooling & Airflow Capabilities

• Fan / Cooling Support
    • Top: up to 3 × 120 mm or 2 × 140 mm
    • MB Panel: 3 × 120 mm (with option for 2 if using other layouts)
    • Rear: 1 × 120 mm

• Radiator / Liquid Cooling Support
    • Top: up to 280 / 360 mm radiator
    • MB Panel: 240 mm (when E‑ATX width ≤ 28.5 cm)
    • Rear: 120 mm radiator support

• Component Clearance / Limits
    • CPU cooler height: up to 175 mm
    • GPU (graphics card) maximum length: up to 400 mm
    • PSU (power supply) maximum length: 220 mm

Storage, Expansion & I/O

• Drive Bays & Storage
    • 3.5″ HDD cages: 2 units
    • 2.5″ SSD brackets: 2 units

• Expansion & GPU Options
    • 7 standard expansion slots
    • Supports vertical GPU installation for show builds

• Front I/O & Connectivity
    • 2 × USB 3.0 port
    • 1 × USB‑C port
    • HD Audio jack, Power and Reset buttons
