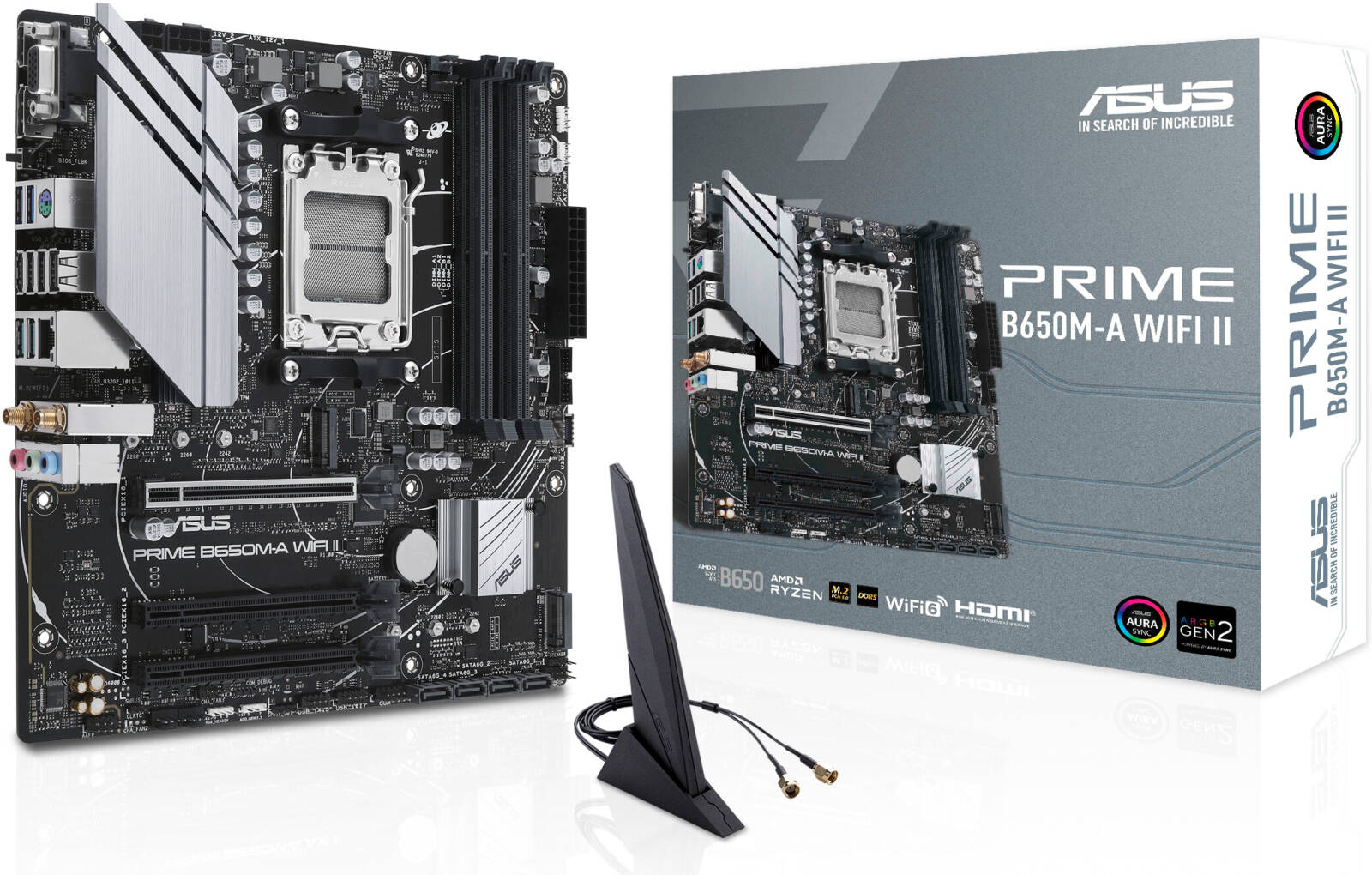

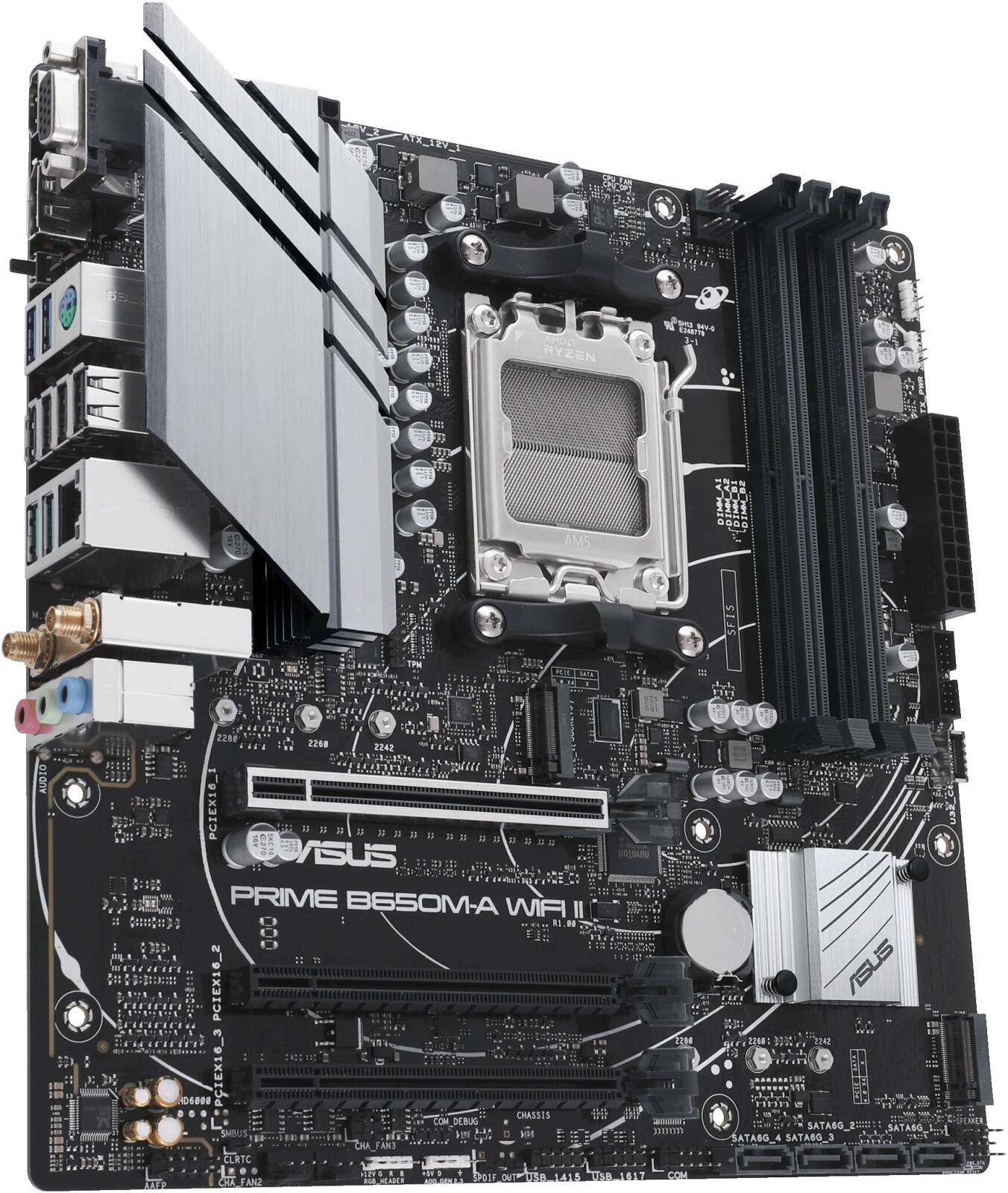

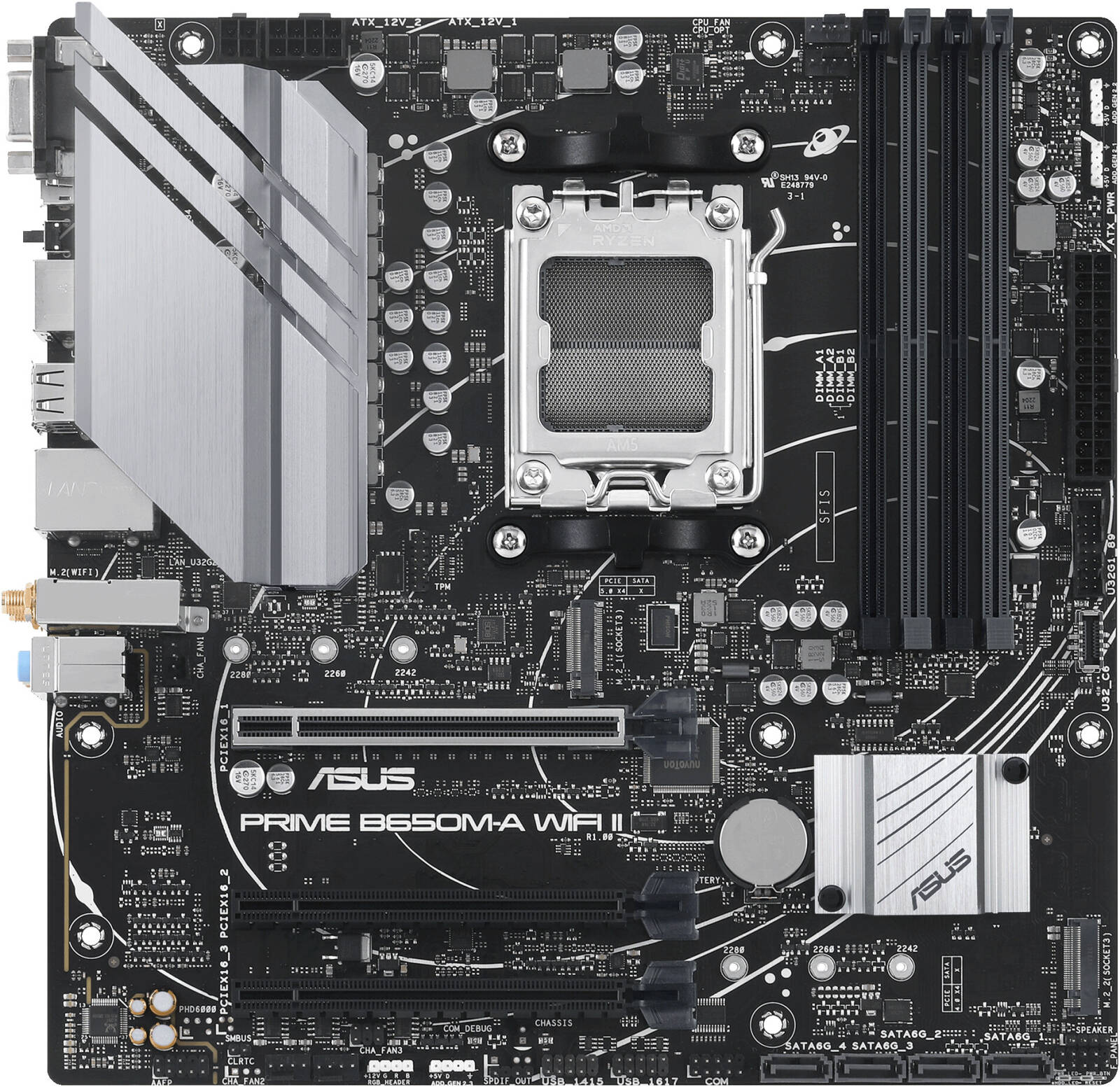

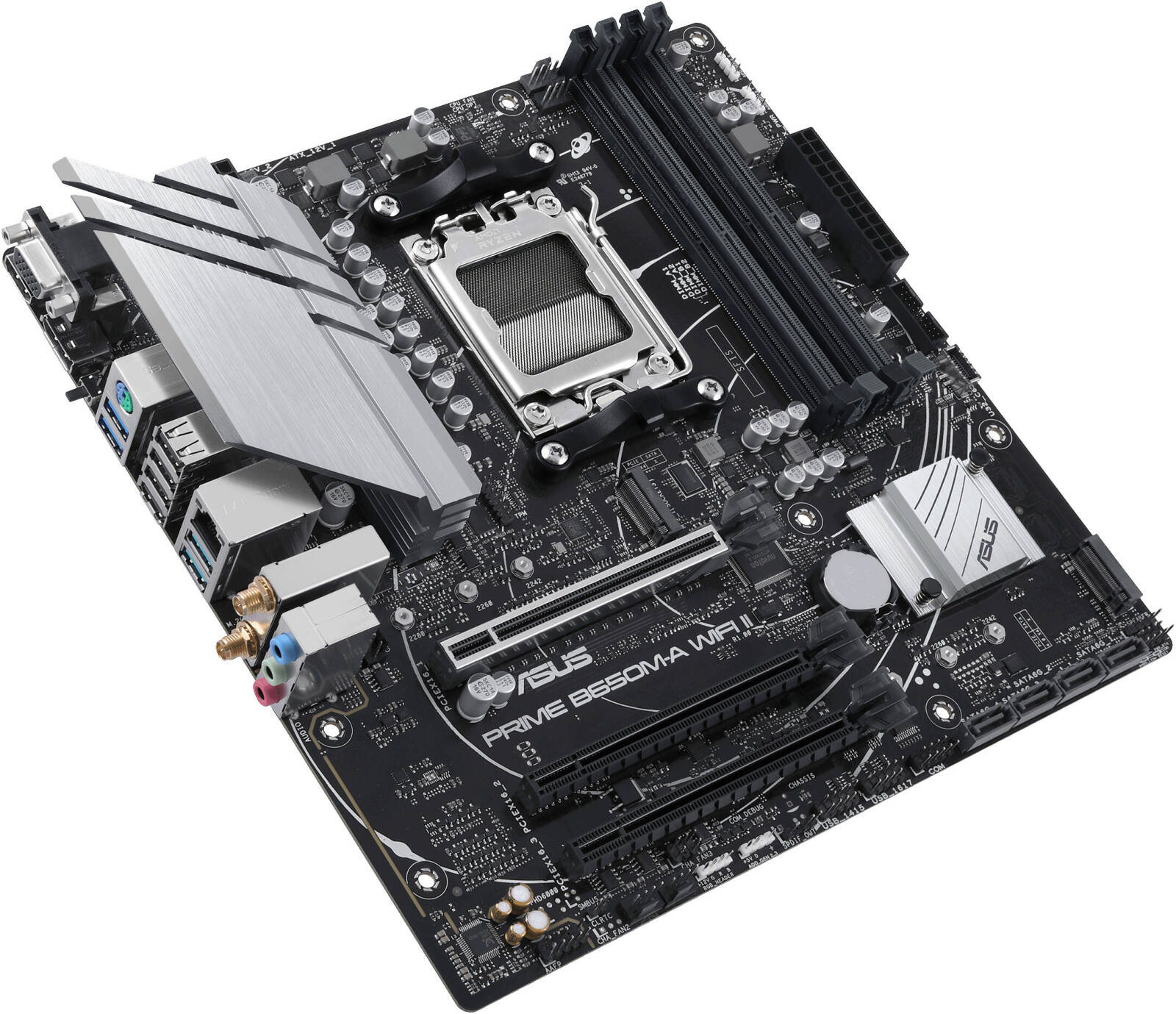

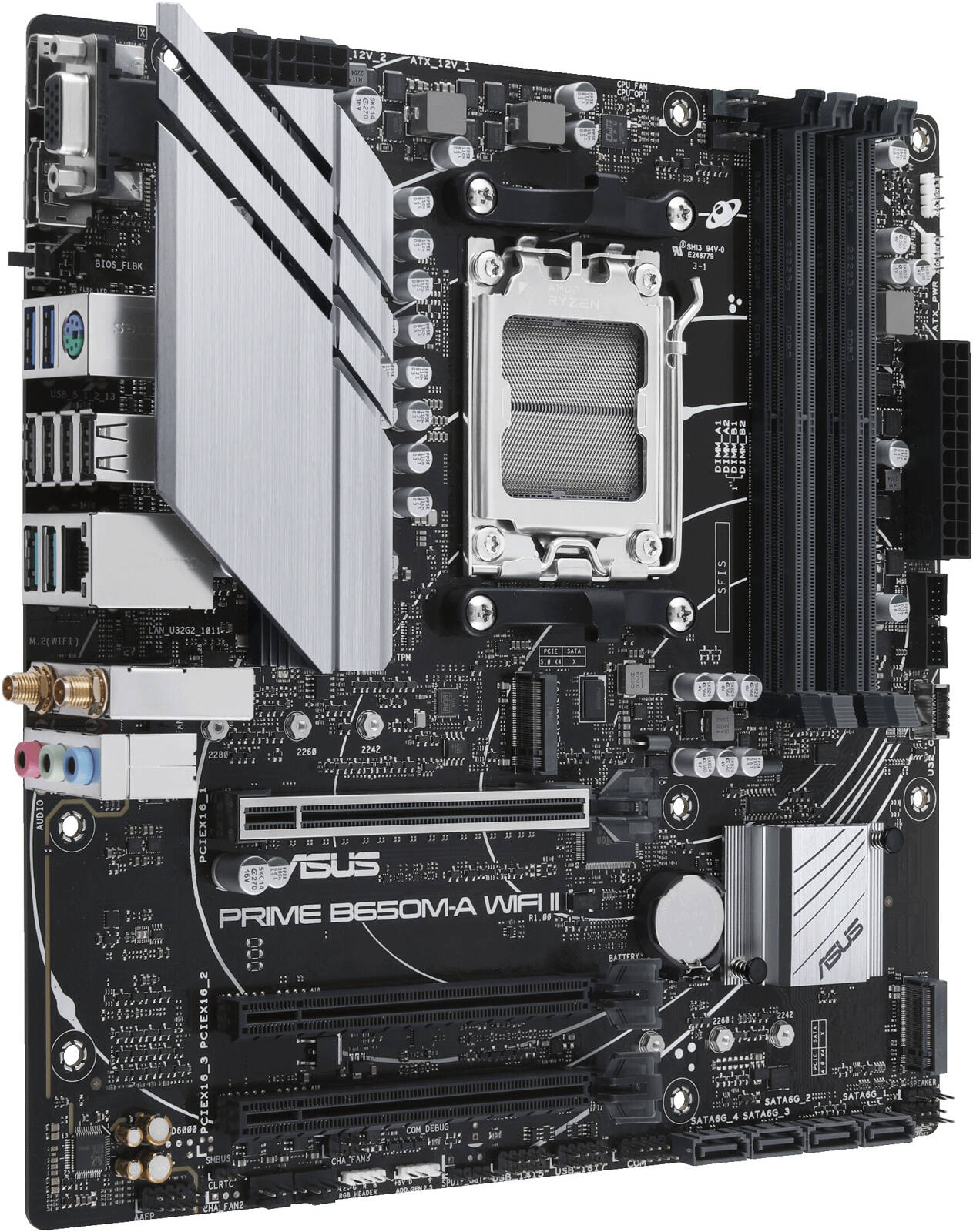

The AMD B650 Micro-ATX motherboard is a powerful and versatile option designed for users who want to build a high-performance PC, particularly with AI and advanced computing in mind. It is equipped with the AM5 socket, making it compatible with AMD Ryzen? desktop processors, ensuring cutting-edge processing power.
Specifications?
| Model | PRIME B650M-A WIFI II |
| CPU | AMD Socket AM5 for AMD Ryzen? 9000, 8000, & 7000 Series Desktop Processors* |
| Chipset | AMD B650 Chipset |
| Memory | 4 x DIMM, Max. 192GB, DDR5 7600+(OC) to 4800 Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO?) OptiMem II |
| Graphics | 1 x DisplayPort (Supports max. 8K@60Hz) 1 x VGA port 1 x HDMI? port (Supports 4K@60Hz) |
| Expansion Slots | 1 x PCIe 4.0 x16 slot (supports x16 mode) 2 x PCIe 4.0 x16 slots (support x1 mode) |
| Storage | 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports M.2_1 slot (PCIe 5.0 x4 for Ryzen 9000/7000) M.2_1 slot (PCIe 4.0 x4 for Ryzen 8000) M.2_2 slot (PCIe 4.0 x4 for B650) |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| Wireless & Bluetooth | Wi-Fi 6 (2×2), Bluetooth? v5.2 |
| USB Ports | Rear:?2 x USB 3.2 Gen 2 (Type-A) 2 x USB 3.2 Gen 1 (Type-A) 4 x USB 2.0 (Type-A) Front:?1 x USB 3.2 Gen 1 (Type-C?) 1 x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 ports) 2 x USB 2.0 headers (supports 4 additional USB 2.0 ports) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC Supports up to 24-Bit/192 kHz playback Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers |

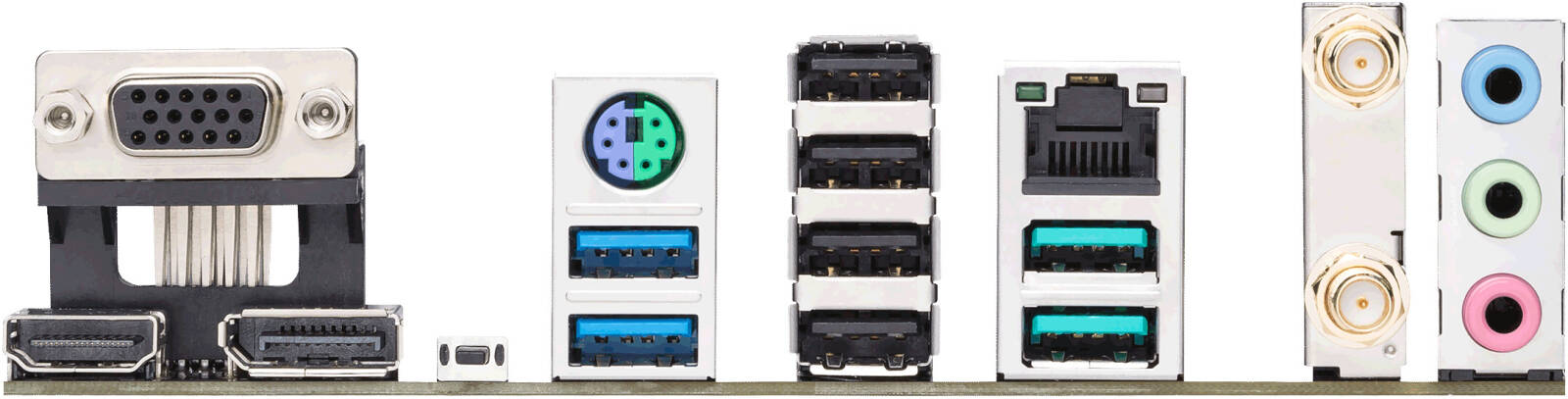

| Back Panel I/O Ports | 2 x USB 3.2 Gen 2 (Type-A) 2 x USB 3.2 Gen 1 (Type-A) 4 x USB 2.0 (Type-A) 1 x DisplayPort 1 x VGA port 1 x HDMI? port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack? button 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Connectors | Fan and Cooling:?1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 3 x 4-pin Chassis Fan headers Power:?1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage:?2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB:?1 x USB 3.2 Gen 1 connector (supports USB Type-C?) 1 x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 ports) 2 x USB 2.0 headers (supports 4 additional USB 2.0 ports) Miscellaneous:?3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
| Special Features | ASUS 5X PROTECTION III ASUS Q-Design ASUS Thermal Solution ASUS EZ DIY Aura Sync |
| Software Features | Armoury Crate AI Suite 3 ASUS CPU-Z MyASUS Norton Anti-virus software (Free Trial) WinRAR |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS ASUS EZ DIY: ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode |
| Manageability | WOL by PME, PXE |

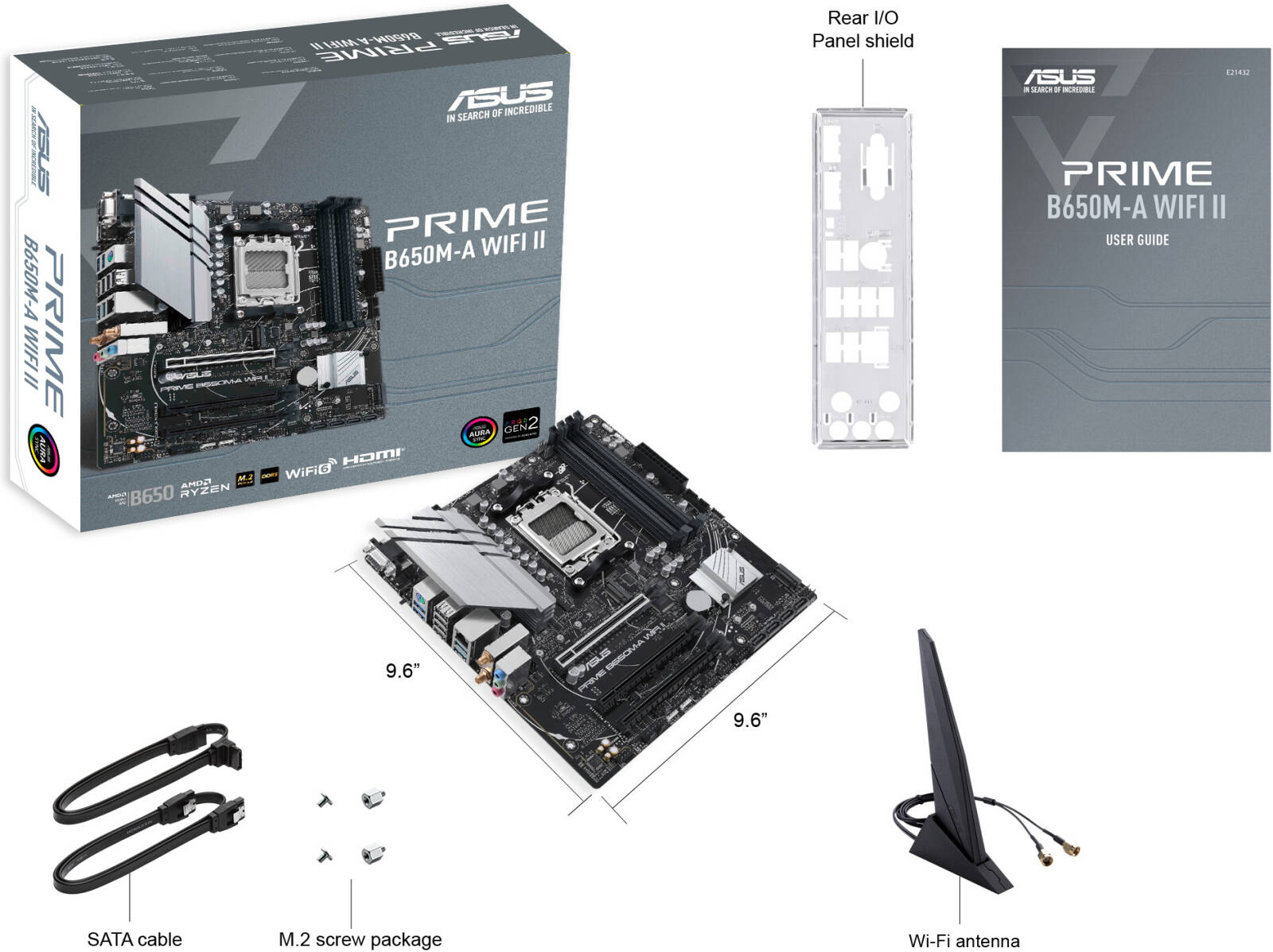

| Accessories | Cables:?2 x SATA 6Gb/s cables Miscellaneous:?1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x Screw Package for M.2 SSD Documentation:?1 x User guide |
| Operating System | Windows? 11, Windows? 10 64-bit |
| Form Factor | mATX Form Factor (9.6 x 9.6 inches / 24.4 x 24.4 cm) |
Warranty
Warranty
Original price was: 485.00 AED.442.00 AEDCurrent price is: 442.00 AED.
