CPU |
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** |
|---|
|
Chipset |
Intel® B760 Chipset |
|---|
|
Memory |
4 x DIMM Max. 128GB DDR4
Non-ECC Un-buffered Memory* Supports Intel® Extreme Memory Profile (XMP)
Supports Intel® Extreme Memory Profile (XMP) |
|---|
|
Graphics |
1 x DisplayPort
2 x HDMI® ports
Supports 4K@60Hz as specified in HDMI® 2.1.
Supports max. 4K@60Hz as specified in DisplayPort 1.4. |
|---|
|
Expansion Slots |
1 x PCIe 4.0 x16 slot
1 x PCIe 4.0 x16 slot (supports x1 mode)
1 x PCIe 4.0 x16 slot (supports x4 mode)
Intel® B760 Chipset
Intel® Core™ Processors (14th & 13th & 12th Gen) |
|---|
|
Storage |
4 x SATA 6Gb/s ports
Intel® B760 Chipset
Intel® CoreTM Processors (14th & 13th & 12th Gen)
Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports* |
|---|
|
Ethernet |
1 x Realtek 2.5Gb Ethernet |
|---|
|
Wireless |
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Wi-Fi 6 |
|---|
|
Bluetooth |
Bluetooth v5.2
The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
|---|
|
USB |
1 x USB 2.0 header supports 1 additional USB 2.0 port
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
2 x USB 2.0 headers support 4 additional USB 2.0 ports
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
Front USB (Total 10 ports)
Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) |
|---|
|
Audio |
– Premium audio capacitors
– Supports up to 24-Bit/192 kHz playback
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Features
Audio Shielding
Dedicated audio PCB layers
Realtek 7.1 Surround Sound High Definition Audio CODEC* |
|---|
|

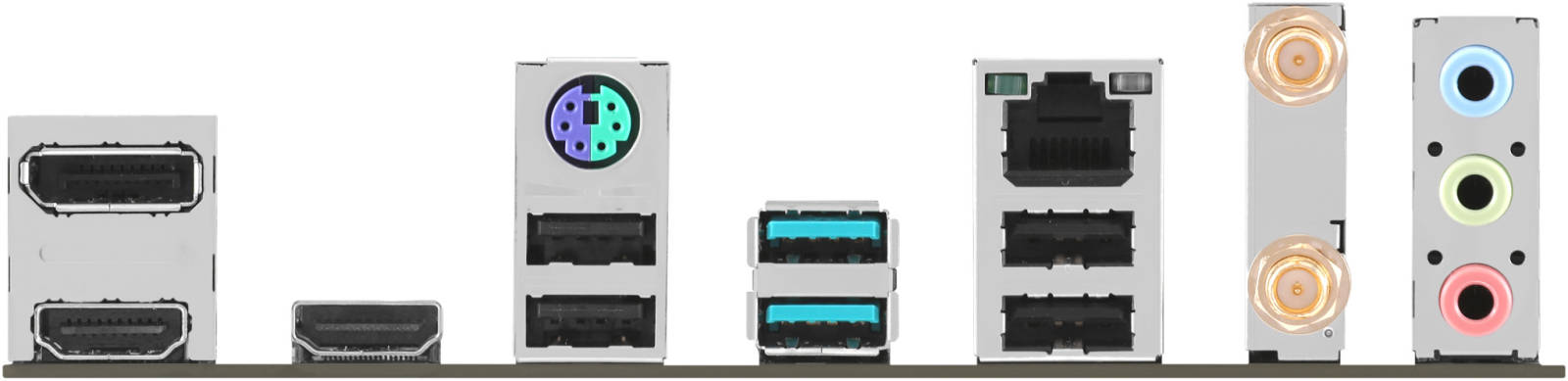

Back Panel I/O Ports |
1 x DisplayPort
1 x PS/2 Keyboard/Mouse combo port
1 x Realtek 2.5Gb Ethernet port
1 x Wi-Fi Module
2 x HDMI® ports
2 x USB 3.2 Gen 2 ports (2 x Type-A )
3 x Audio jacks
4 x USB 2.0 ports (4 x Type-A) |
|---|
|
Fan and Cooling |
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header(s)
2 x 4-pin Chassis Fan headers |
|---|
|
Power |
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector |
|---|
|
Miscellaneous |
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Aura RGB header(s)
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x LPT header
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
3 x Addressable Gen 2 headers |
|---|
|
ASUS 5X PROTECTION III |
DIGI+ VRM
LANGuard
Overvoltage Protection
SafeSlot Core+
Stainless-Steel Back I/O |
|---|
|
ASUS Q-Design |
Q-DIMM
Q-LED Core
Q-Slot |
|---|
|
ASUS Thermal Solution |
M.2 heatsink
VRM heatsink design |
|---|
|
ASUS EZ DIY |
ProCool |
|---|
|
AURA SYNC |
Addressable Gen 2 headers
Aura RGB header |
|---|
|
ASUS Exclusive Software |
AI Suite 3
Armoury Crate
ASUS CPU-Z
Aura Creator
Aura Sync
DIGI+ VRM
Fan Xpert 2+
MyAsus
Norton Deluxe (60 Days Free Trial)
PC Cleaner
Power Saving
WinRAR |
|---|
|
UEFI BIOS |
ASUS CrashFree BIOS 3
ASUS EZ DIY
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode |
|---|
|
BIOS |
128 Mb Flash ROM, UEFI AMI BIOS |
|---|
|
Manageability |
WOL by PME, PXE |
|---|
|

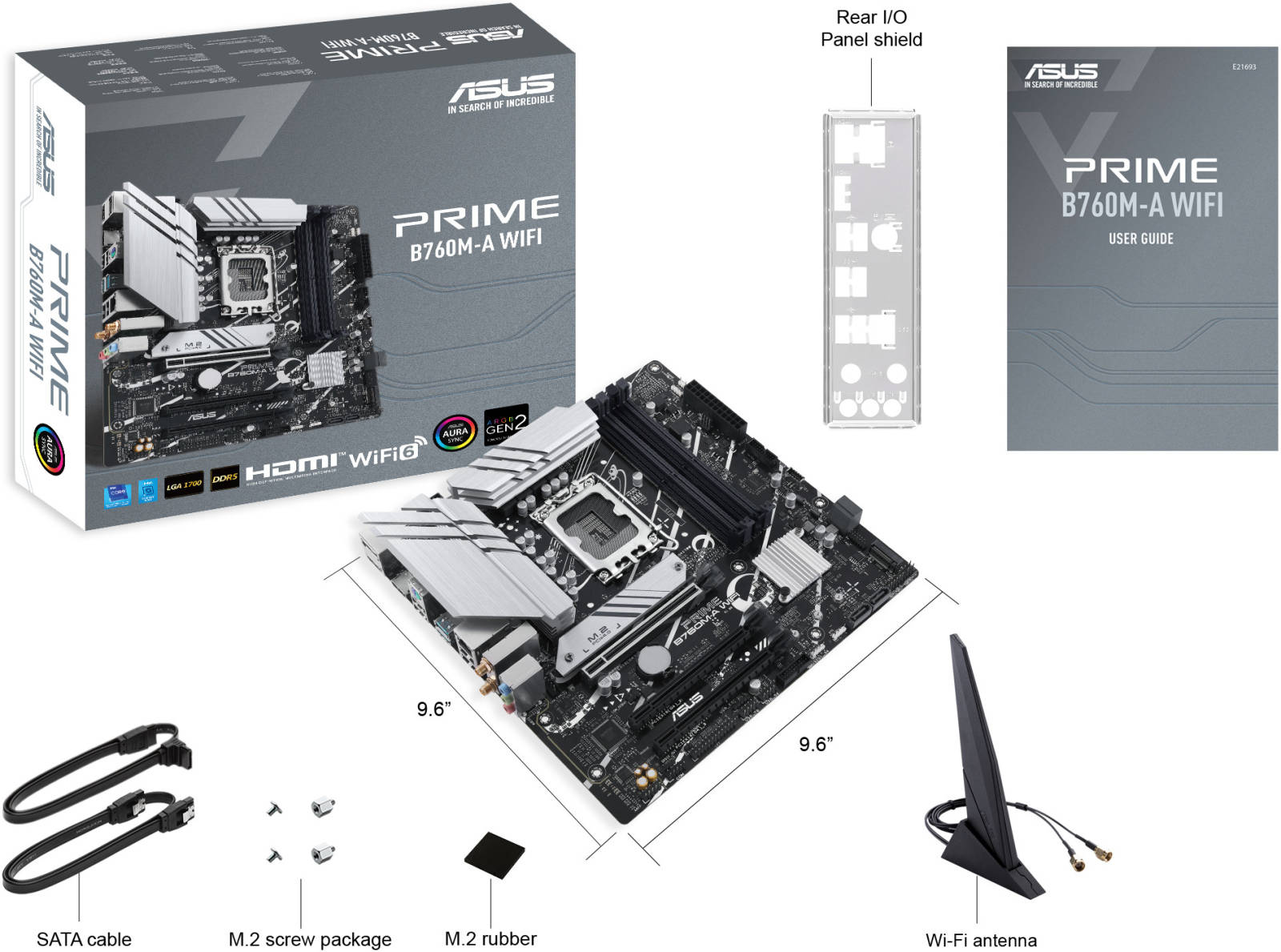

Accessories |
Cables 2 x SATA 6Gb/s cables
Documentation 1 x User guide |
|---|
|
Operating System |
Windows® 10 64-bit
Windows® 11 |
|---|
|
Form Factor |
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
mATX Form Factor |
|---|
