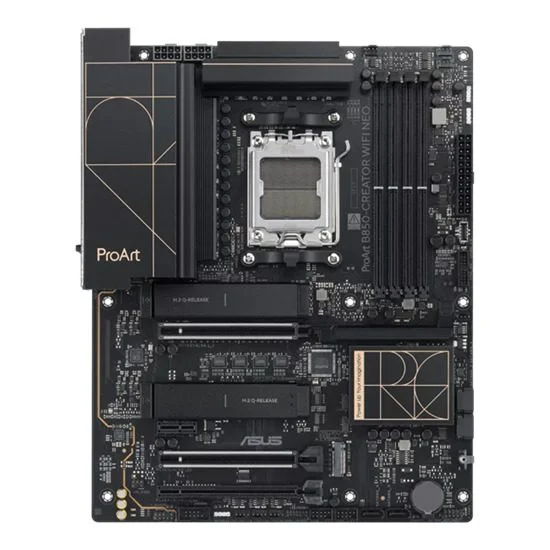

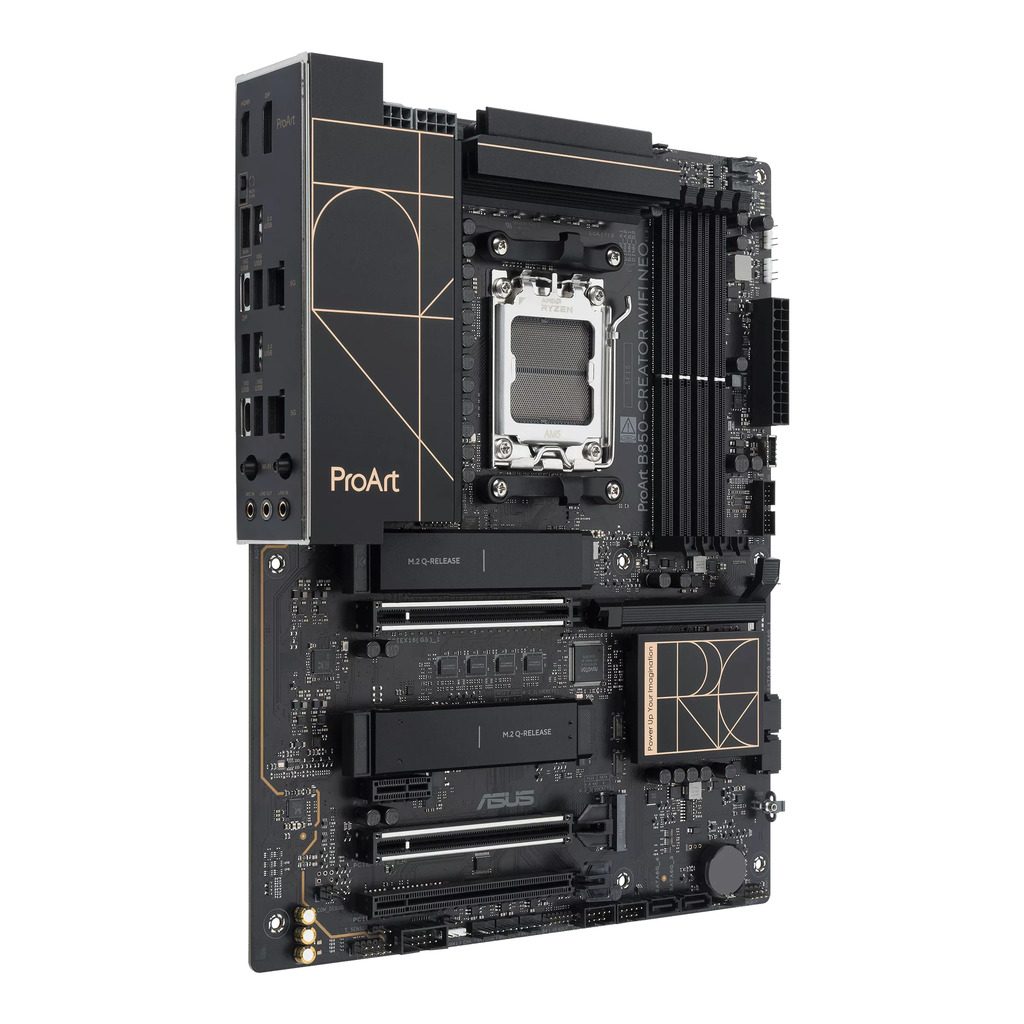

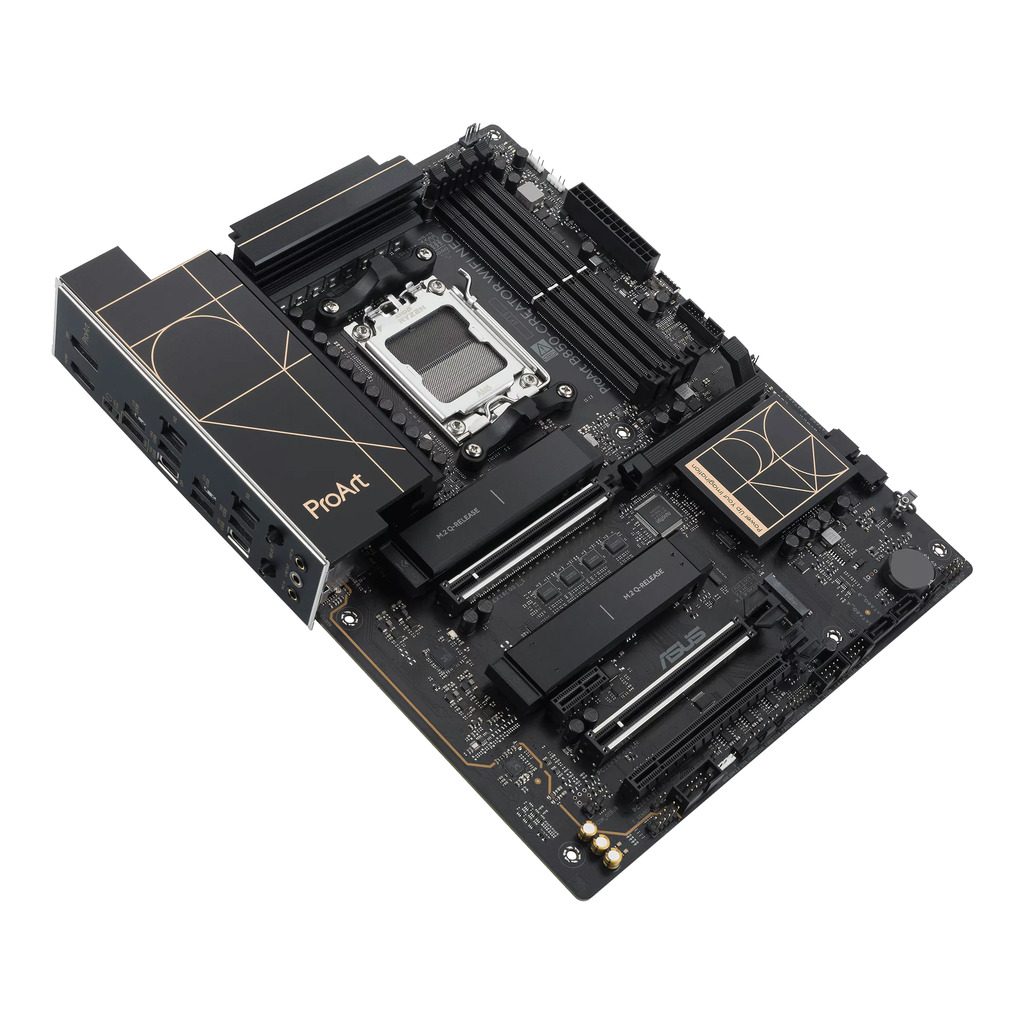

ASUS PROArt B850-CREATOR WIFI NEO Motherboard – AMD B850, AM5 Socket, DDR5, Wi-Fi 7, Dual 5Gb Ethernet, USB 10Gbps, PCIe 5.0 | 90MB1P60-M0EAY0

ASUS PROArt B850-CREATOR WIFI NEO Motherboard Overview

The ASUS PROArt B850-CREATOR WIFI NEO is designed to power your creative workflows and professional builds with cutting-edge AMD technology. Equipped with the AMD B850 chipset and Socket AM5, it supports Ryzen 7000, 8000, and 9000 series processors, including Ryzen PRO and EPYC 4005 series, delivering reliable, powerful performance for demanding applications.

This motherboard features four DDR5 DIMM slots supporting up to 256GB of high-speed memory, ensuring ample headroom for multitasking and heavy memory loads. Its advanced networking includes dual Realtek 5Gb Ethernet ports with ASUS LANGuard for stable wired connections, complemented by Wi-Fi 7 technology (802.11be) providing ultra-fast wireless connectivity and support for 2.4/5/6 GHz bands with up to 160 MHz bandwidth. Bluetooth with LE Audio support is also integrated for seamless device connections.

Why to buy

• Advanced processor support: Compatible with the latest AMD Ryzen 7000/8000/9000 series and EPYC 4005 offering expansive CPU upgrade options.
• High-speed connectivity: Incorporates Wi-Fi 7 and dual 5Gb Ethernet for robust, low-latency networking suited to professional workloads.
• PCIe 5.0 expansion: Two PCIe 5.0 x16 slots offer versatile graphics and expansion capabilities with flexible lane assignment modes.
• Comprehensive storage options: Three M.2 slots plus four SATA 6Gb/s ports with RAID support optimize data transfer speeds and redundancy.
• Premium audio quality: Realtek ALC1220P codec with dedicated PCB layers and high-grade capacitors ensure clear, immersive sound for production tasks.
• Extensive USB support: Multiple high-speed USB ports including USB 10Gbps Type-C and Type-A on rear and front panels enhance peripheral compatibility.

Who is this board perfect for?

• Creative professionals who demand powerful processors and fast memory for content creation and editing.
• Tech enthusiasts seeking future-proof expandability with PCIe 5.0 and Wi-Fi 7 connectivity.
• Users prioritizing reliable, high-speed wired and wireless network connections in their work environment.
• Those requiring a motherboard with rich I/O options for a versatile setup including multiple displays and USB peripherals.

Quick compatibility

• Form factor: ATX
• CPU socket: AMD AM5
• Memory: 4× DDR5 DIMM slots, up to 256GB
• Expansion slots: 2× PCIe 5.0 x16 (x16/x8/x8 modes), 2× PCIe 4.0 x16, 1× PCIe 4.0 x1

Storage & expansion (at a glance)

• 3× M.2 Key M slots for NVMe SSDs
• 4× SATA 6Gb/s ports
• RAID supported via AMD RAIDXpert2

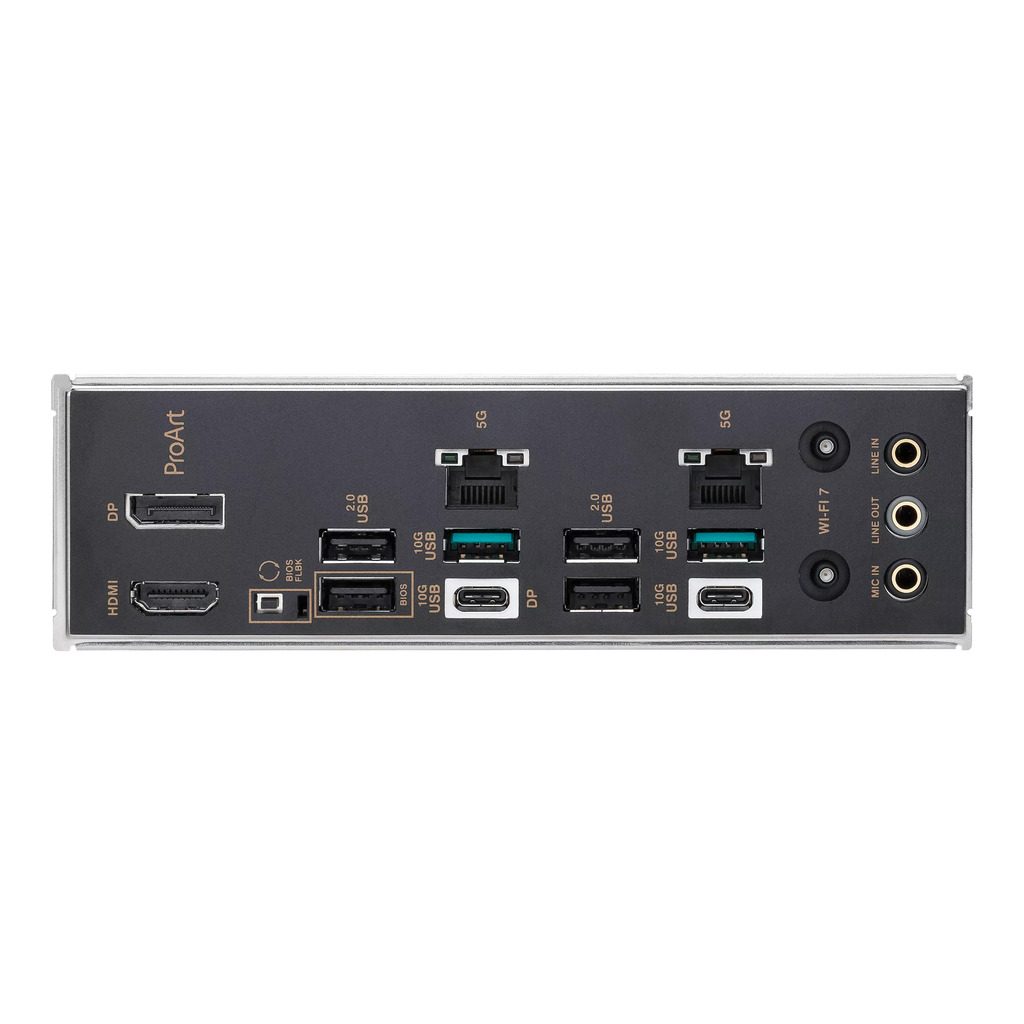

Rear I/O Ports

• 2× USB 10Gbps Type-C ports (one with Alt Mode)
• 2× USB 10Gbps Type-A ports
• 4× USB 2.0 Type-A ports
• 1× DisplayPort
• 1× HDMI port
• 2× Realtek 5Gb Ethernet RJ-45 ports
• Wi-Fi 7 antenna connectors
• 3× audio jacks
• 1× BIOS FlashBack button

Front-panel connectivity

• 1× USB 20Gbps Type-C header supporting up to 30W charging (PD/QC4+)
• 1× USB 5Gbps header for 2 additional USB 5Gbps ports
• 2× USB 2.0 headers for 4 additional USB 2.0 ports

Cooling & control

Includes multiple fan headers: 1 CPU fan, 1 CPU OPT fan, 1 AIO pump, 4 chassis fans with support for temperature sensors and noise detection. Fine-tune airflow profiles for silent operation or peak cooling performance during intensive tasks.

What’s in the box

• ASUS PROArt B850-CREATOR WIFI NEO motherboard
• 2× Wi-Fi 7 antennas (2T2R)
• Documentation including user guide and quick start instructions
