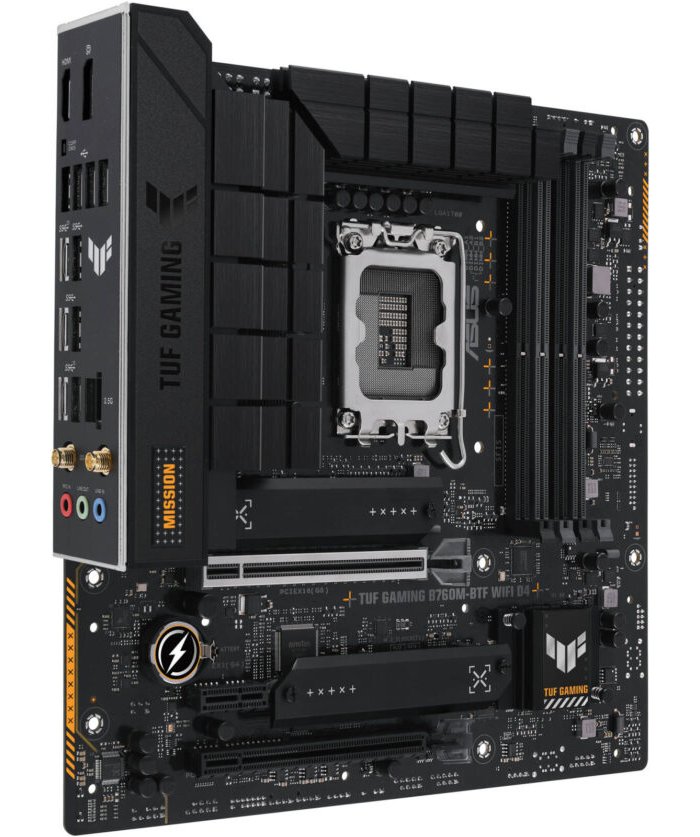

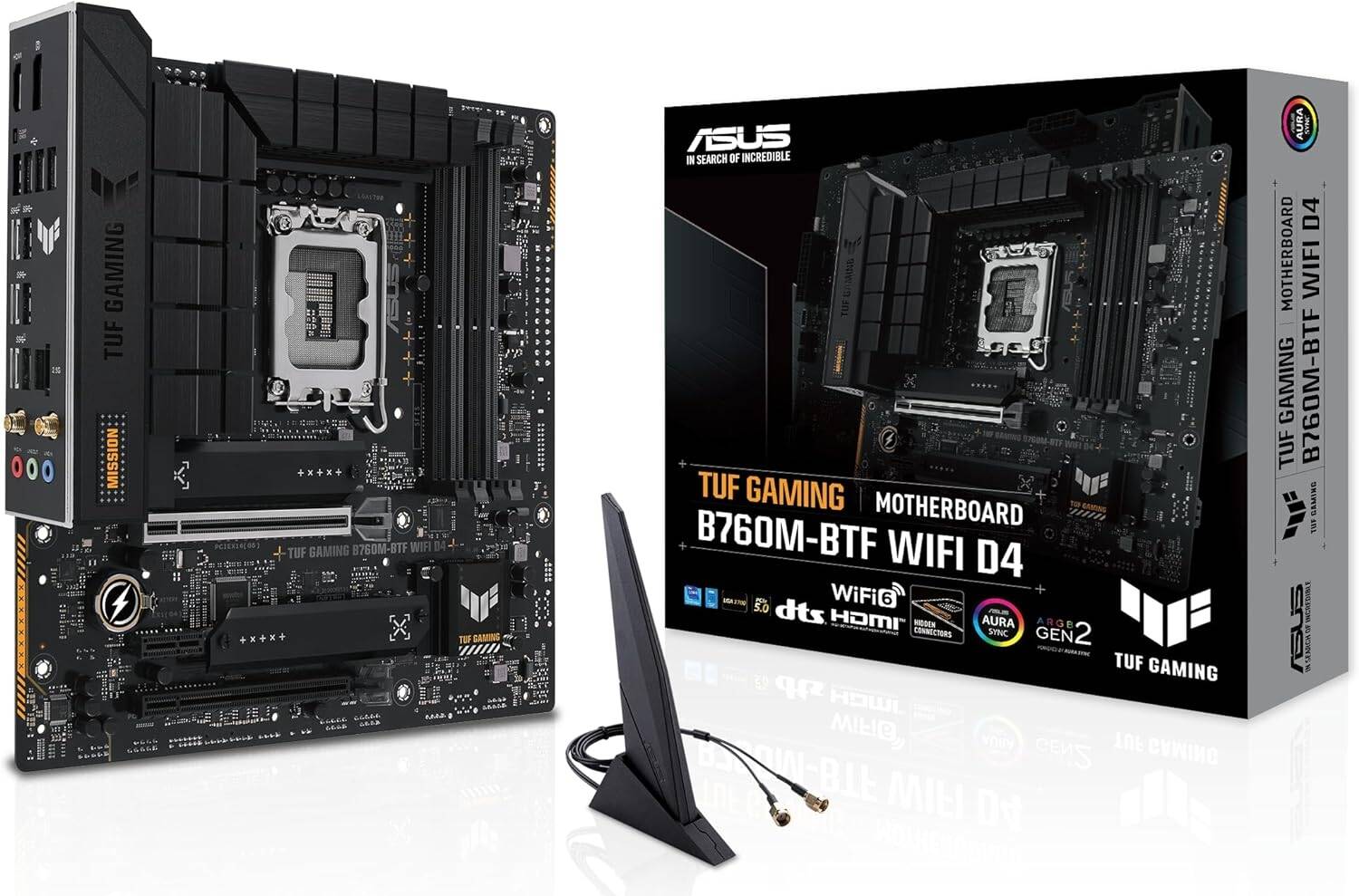

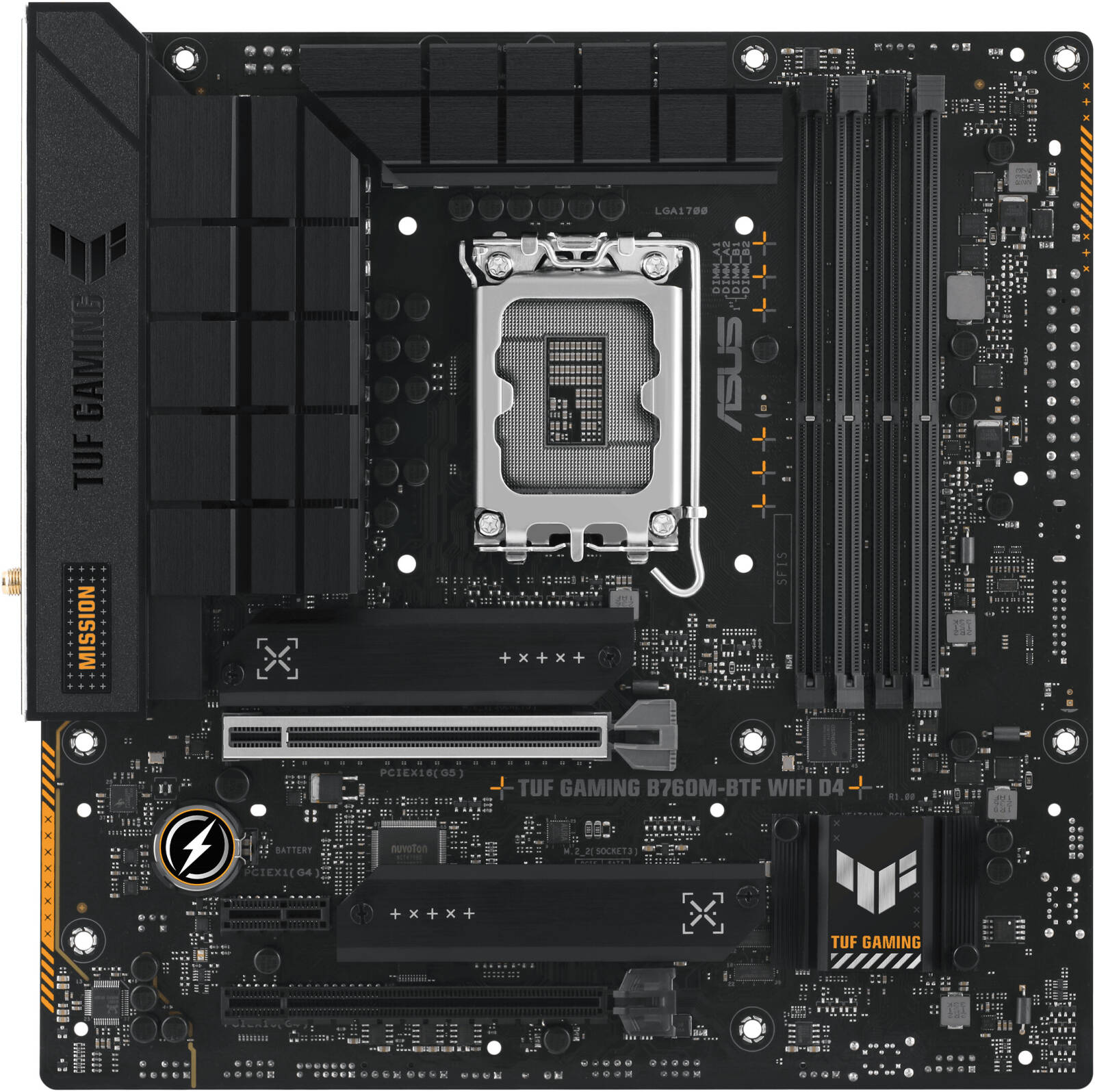

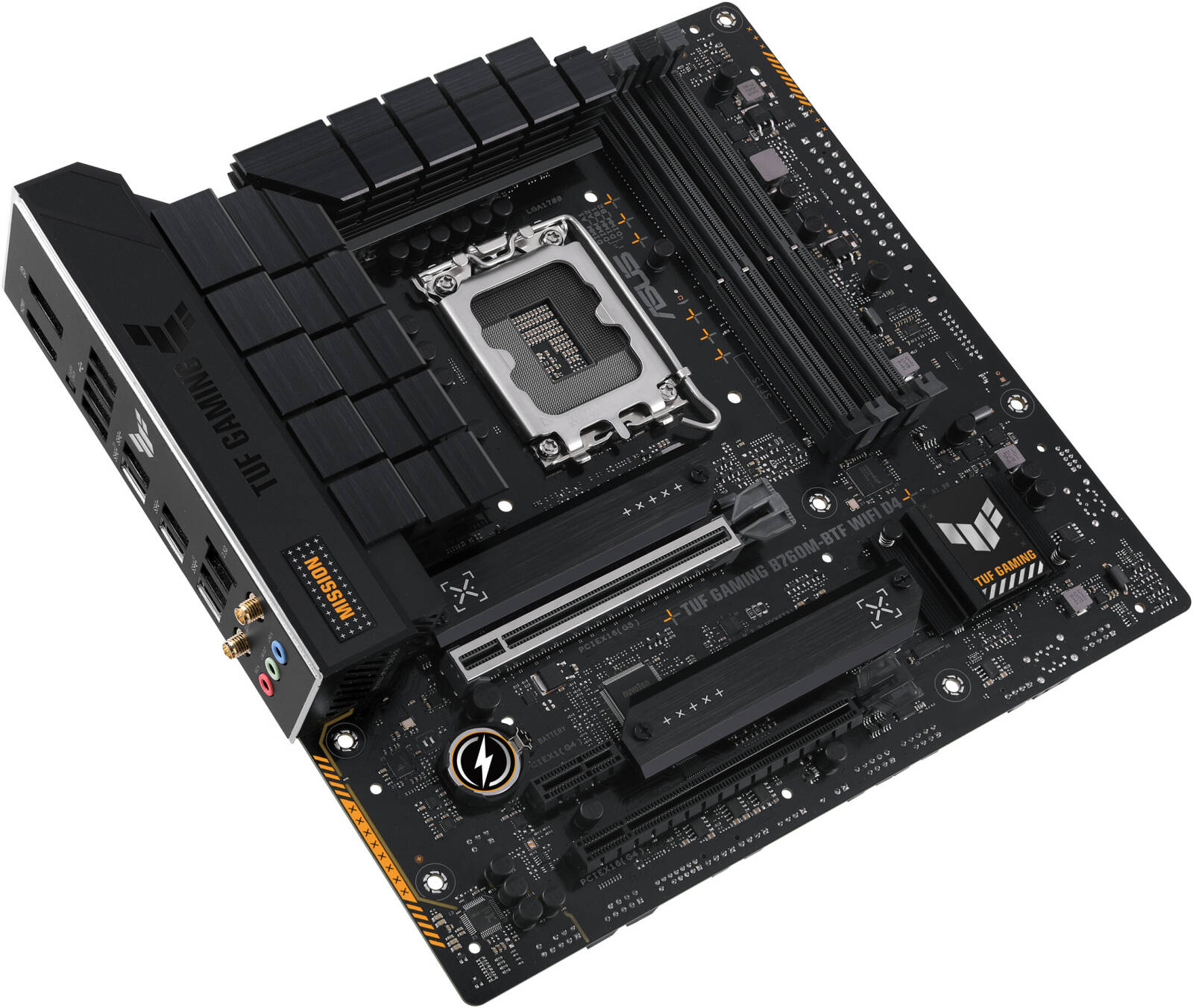

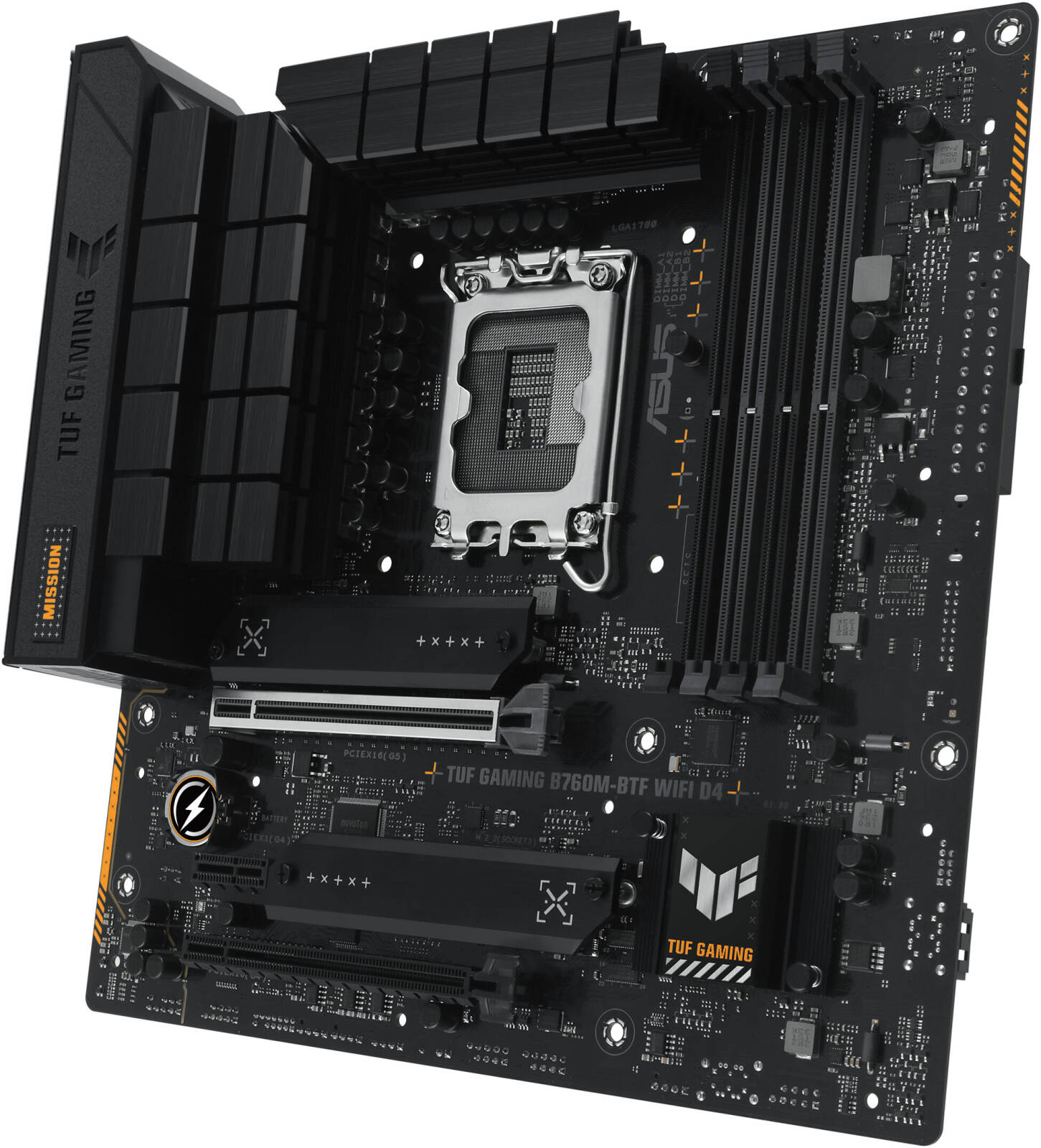

ASUS TUF Gaming B760M-BTF WIFI D4 Micro-ATX Motherboard – Intel B760 chipset, supports up to 128GB DDR4 across 4 DIMM slots, features 3x M.2 slots, Wi-Fi 6, Bluetooth 5.2, and comes in black. Model: 90MB1E50-M0EAY0.

ASUS TUF Gaming B760M-BTF WIFI D4 Micro-ATX Motherboard – Intel B760 chipset, supports up to 128GB DDR4 across 4 DIMM slots, features 3x M.2 slots, Wi-Fi 6, Bluetooth 5.2, and comes in black. Model: 90MB1E50-M0EAY0.

838.49 AED

Expected Delivery N/A

SKU: N/A

Model Number: N/A

Compare

Remove

838.49 AED

Expected Delivery N/A

Quantity:

Payment Methods:

12(50A)+1(60A)+1 power stages with enlarged VRM heatsinks
PCIe® 5.0 for graphics cards
DDR4 memory module support
USB 3.2 Gen 2×2 Type-C®
2.5 Gb Ethernet
WiFi 6

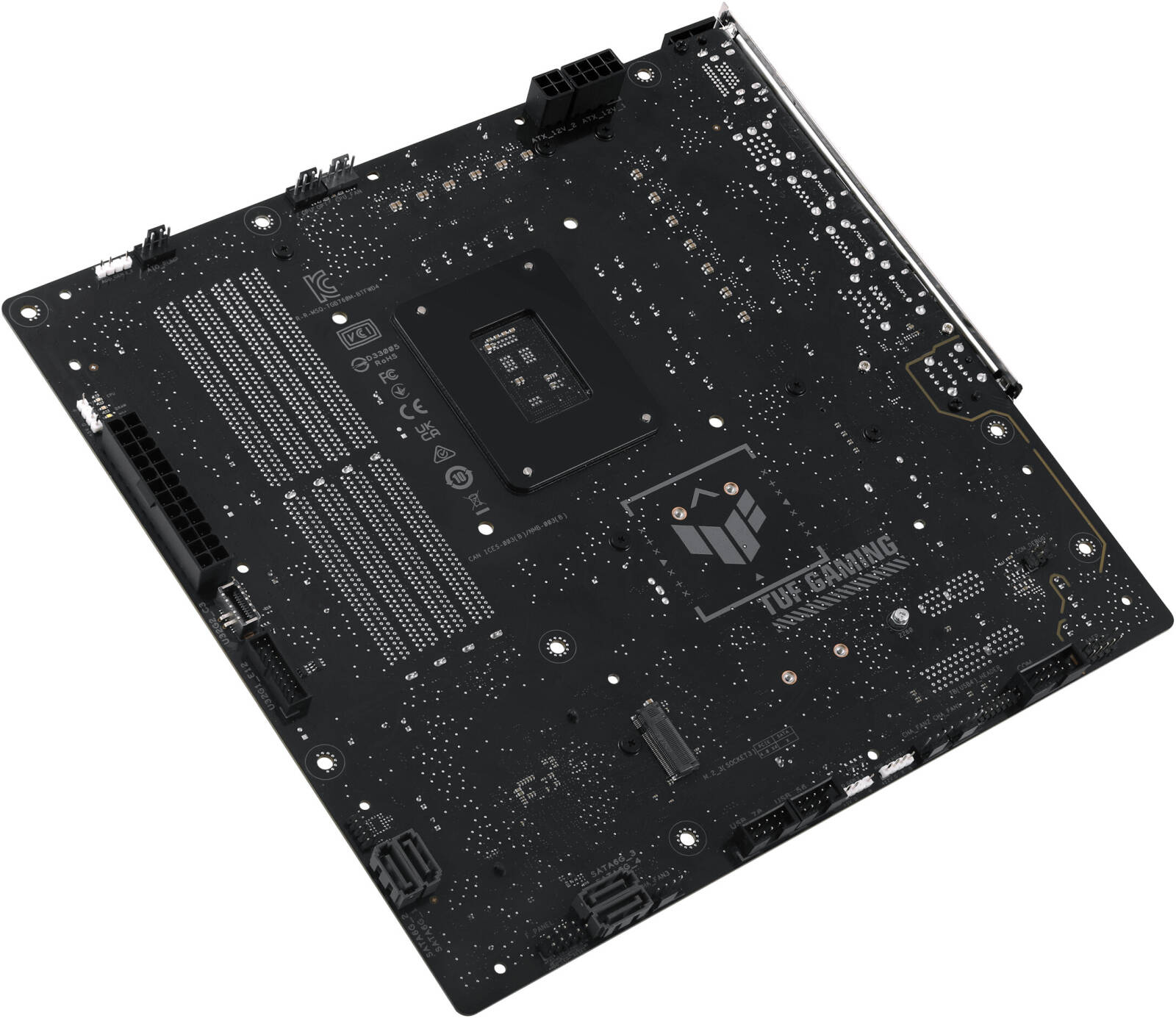

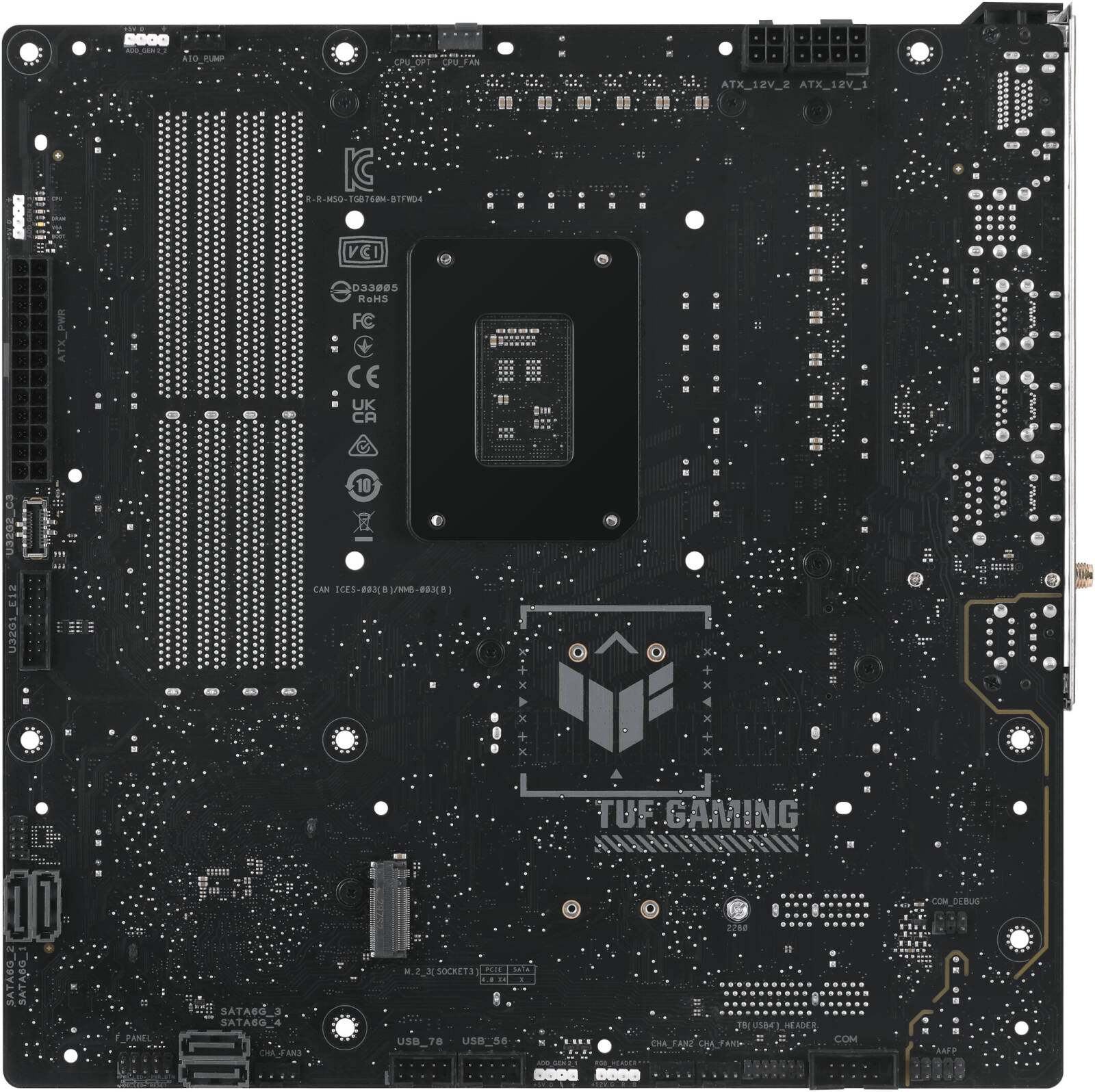

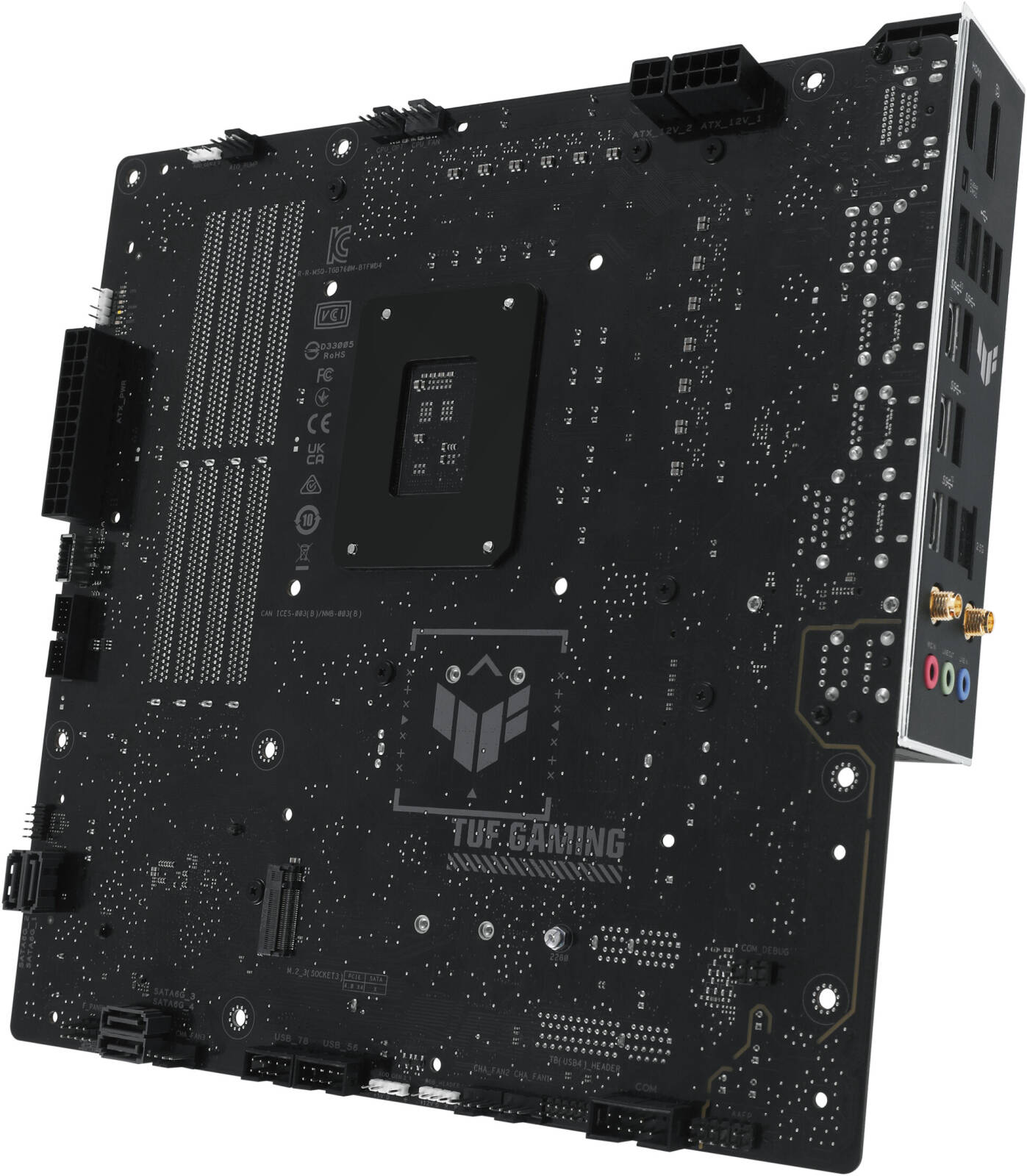

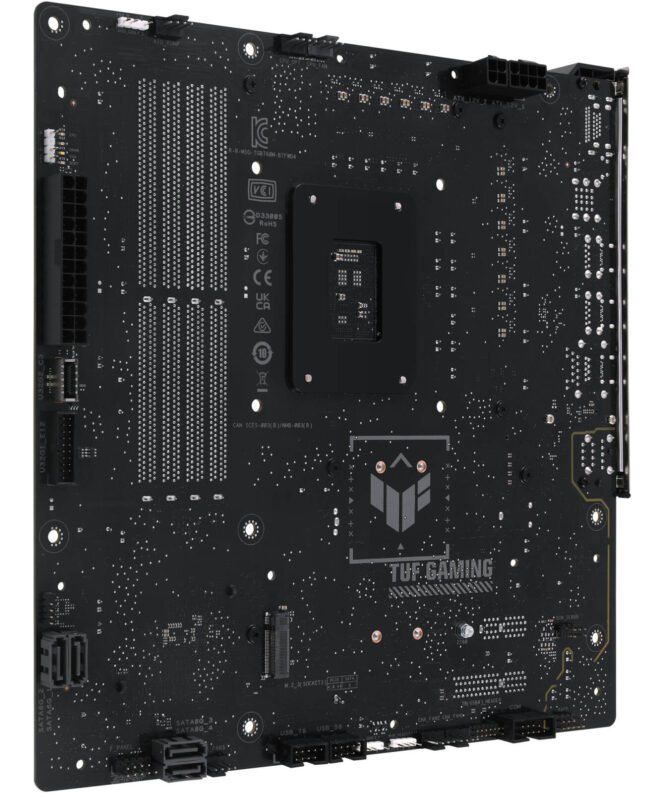

Hidden-connector design for clean cable management
Two-Way AI Noise Cancelation

The TUF GAMING B760M-BTF WIFI D4 takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. “BTF” means “Back To (the) Future” for a new era for all PC DIY gamers; the BTF series hides all its connectors on the underside of the motherboard for clean cable management and a minimalist build appearance.
This motherboard is engineered with military-grade components, an upgraded power solution and a comprehensive cooling system so that it can go beyond expectations with rock-solid performance and marathon gaming.

Specifications

CPU	Intel® Socket LGA1700 for Intel® CoreTM 14th & 13th Gen Processors
Chipset	Intel® B760 Chipset
Memory	4 x DIMM, Max. 128GB, DDR4
	Supports DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
	Dual Channel Memory Architecture
	Supports Intel® Extreme Memory Profile (XMP)
	OptiMem II
Graphics	1 x DisplayPort
	1 x HDMITM port
	Graphics specifications may vary between CPU types.
Expansion Slots	Intel® CoreTM Processors (14th & 13th & 12th Gen)
	1 x PCIe 5.0 x16 slot
	Intel® B760 Chipset
	1 x PCIe 4.0 x16 slot (supports x4 mode)
	1 x PCIe 4.0 x1 slot
Storage	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
	M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
	M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
	M.2_3 slot (Key M), type 2280 only (supports PCIe 4.0 x4 mode)
	4 x SATA 6Gb/s ports
	Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10
	M.2_3 slot shares bandwidth with PCIEX16(G4) slot.
Ethernet	1 x Realtek 2.5Gb Ethernet
Wireless & Bluetooth	Wi-Fi 6
	2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
	Supports 2.4/5GHz frequency band
	Bluetooth® v5.2*
	*The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
USB	Rear USB (Total 10 ports)
USB	Front USB (Total 7 ports)
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC
Audio	Supports up to 24-Bit/192 kHz playback

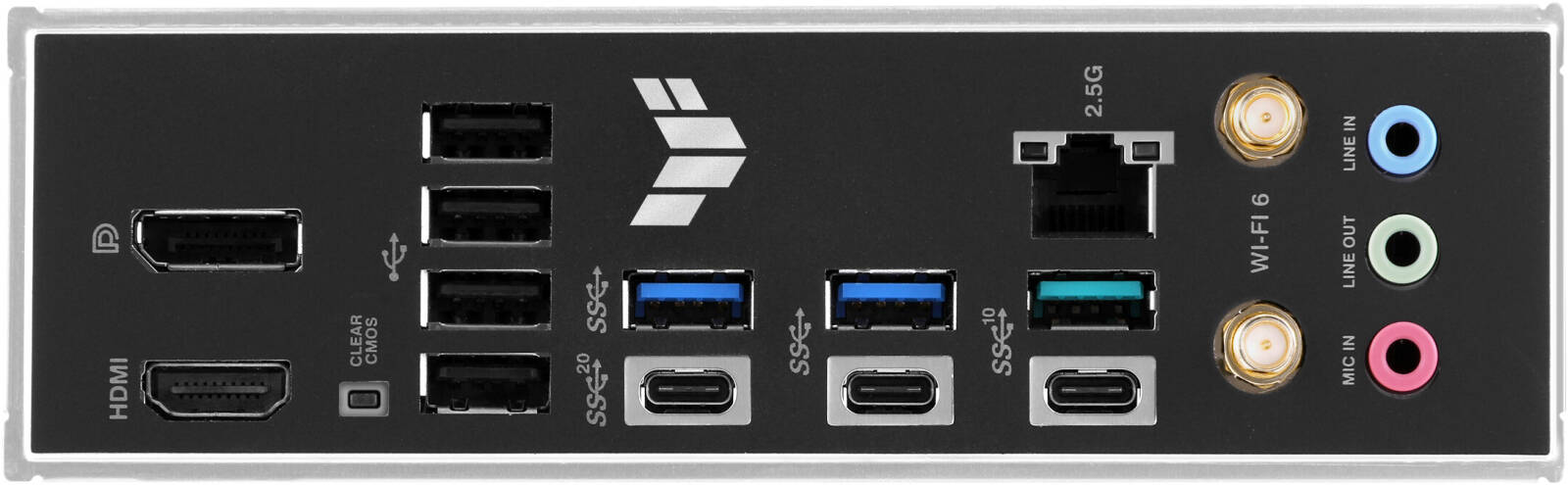

Back Panel I/O Ports	Various USB ports
	DisplayPort and HDMITM port
	Realtek 2.5Gb Ethernet port
	Audio jacks
	Clear CMOS button
Internal I/O Connectors	Fan and Cooling related headers
	Power related connectors
	Storage related connectors
	USB connectors
	Miscellaneous headers
Special Features	ASUS TUF PROTECTION
	ASUS Q-Design
	ASUS Thermal Solution
	ASUS EZ DIY
	Aura Sync
	Software Features
	BIOS
	Manageability
Accessories	Cables
	Miscellaneous items
	Documentation
Operating System	Windows® 11, Windows® 10 64-bit
Form Factor	micro-ATX
Form Factor	9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
