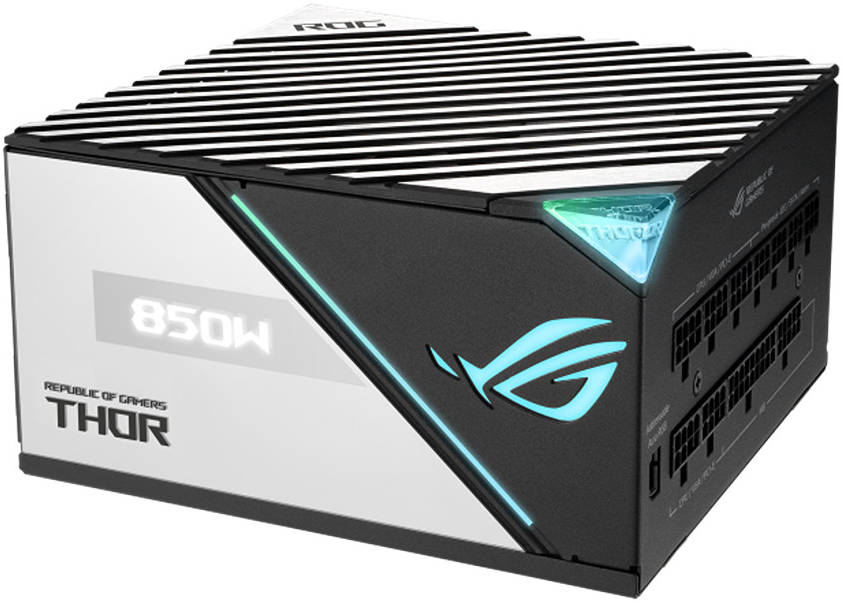

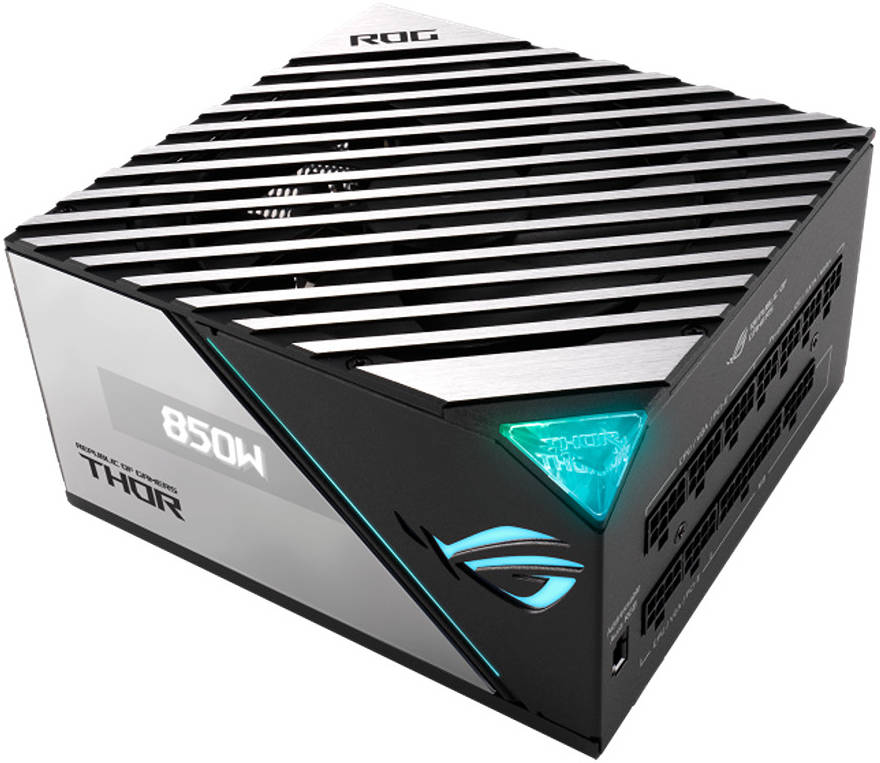

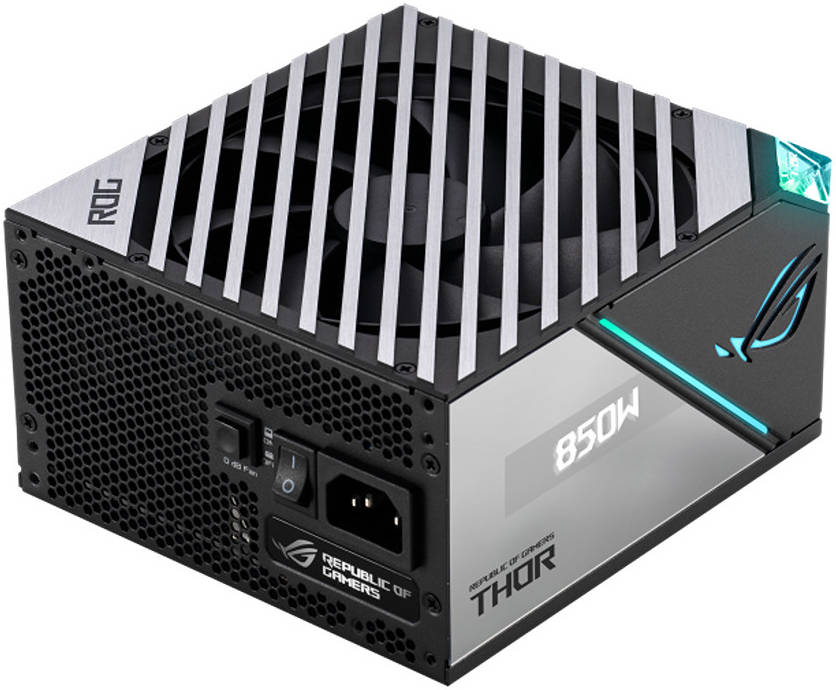

ROG Thor 850W Platinum II is the quietest PSU in its class.
Lambda A++ Certification?confirms the latest Thor wields menacing power in absolute stealth.
ROG heatsinks?cover critical components, delivering lower temperatures and reduced noise.

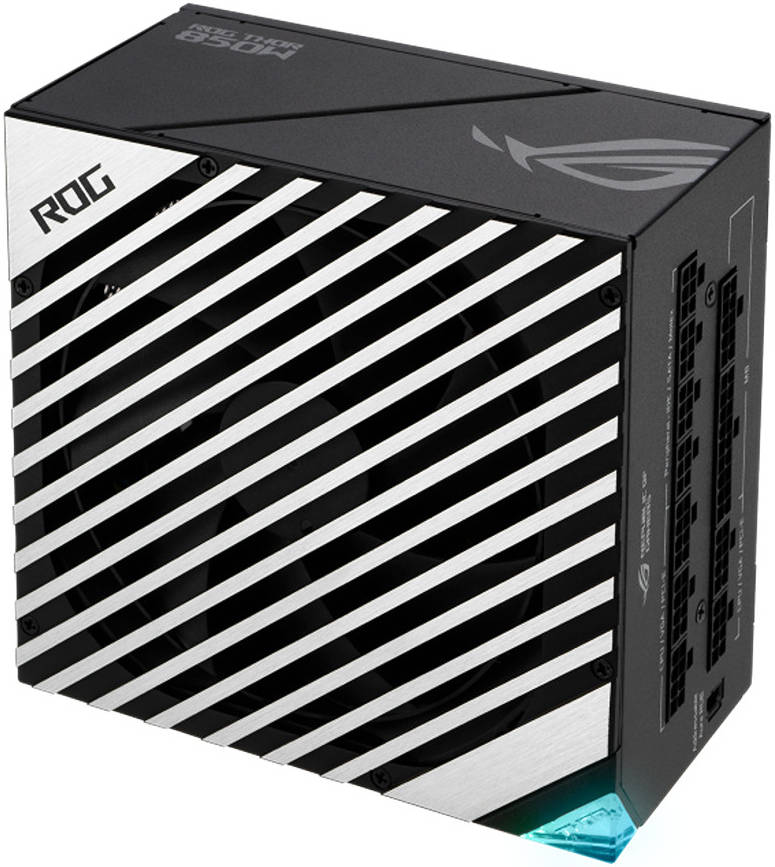

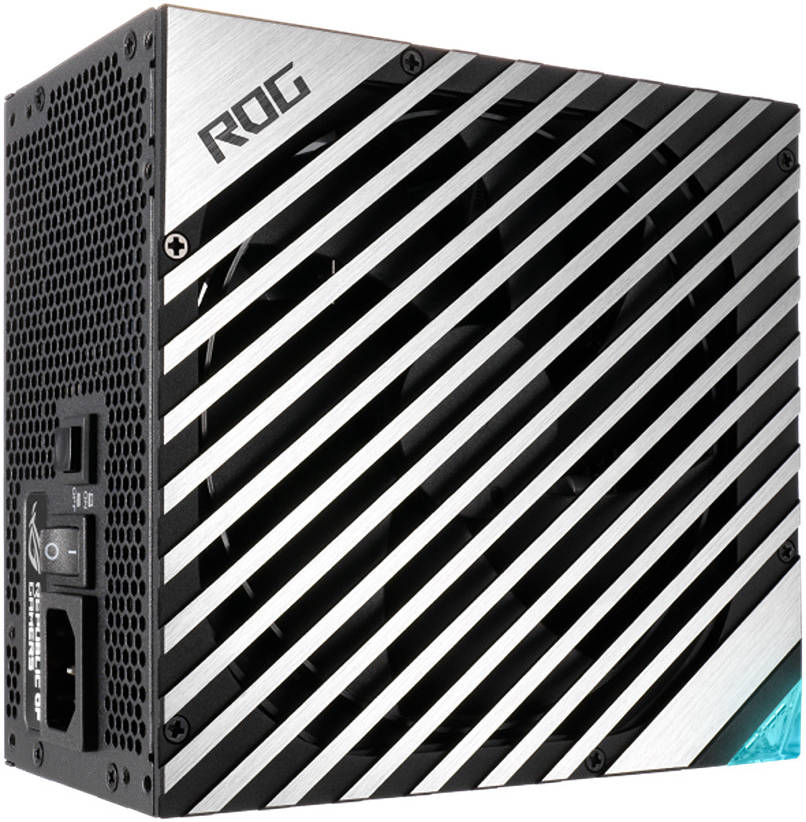

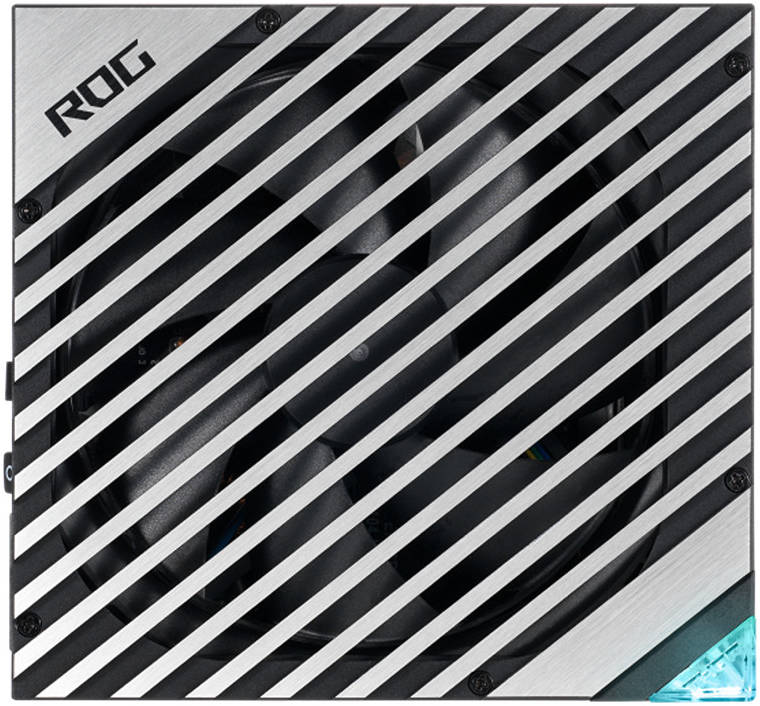

A 135mm?wing-blade fan with PWM control?delivers lower noise and keeps thermals in check.
Built with low-ESR capacitors and other premium components to achieve?80 Plus Platinum Certification.

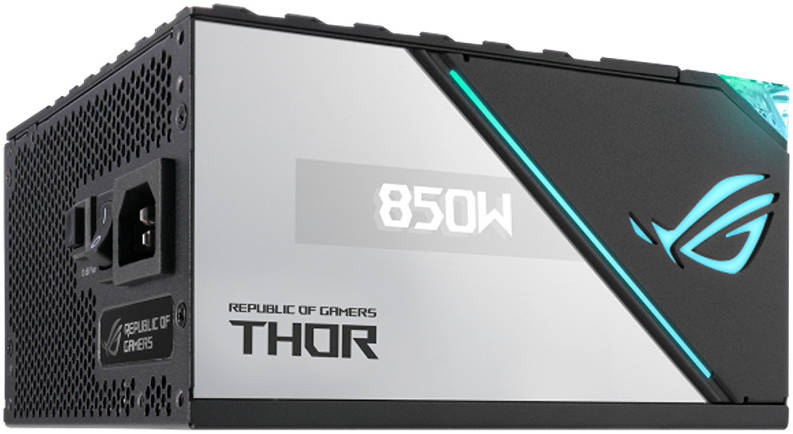

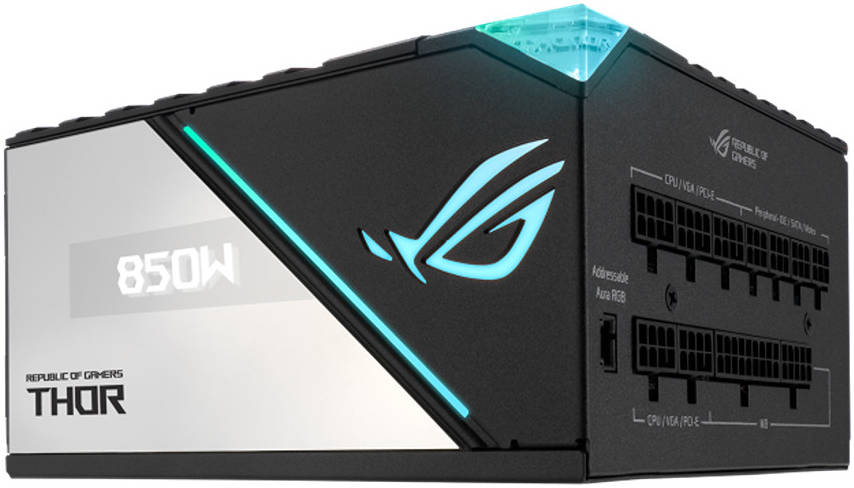

OLED display?monitors power draw in real time.
Aura Sync?compatibility lets you customize and sync lighting effects with other compatible hardware.
Specs
Efficiency
80Plus Platinum
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS
AC Input Range
100-240Vac
Thermal Features
ROG Thermal Solution

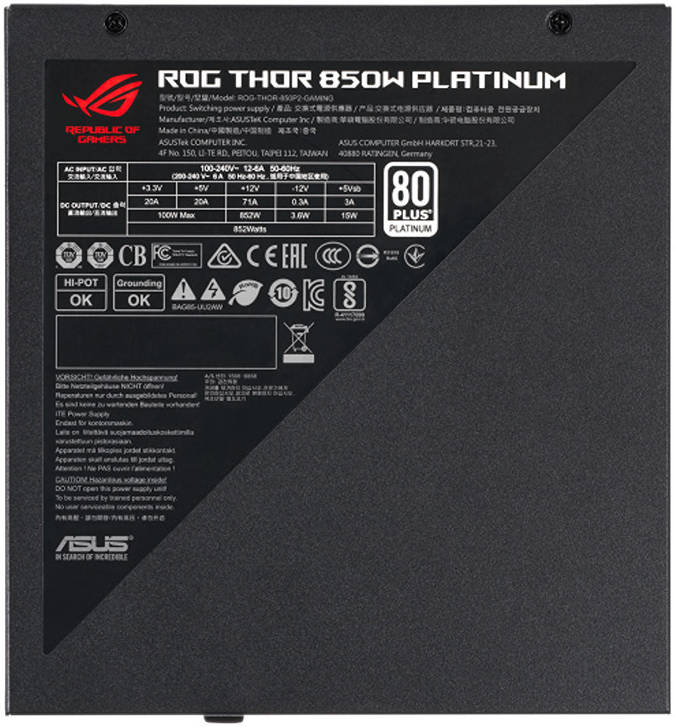

DC Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
20A 20A 71A 0.3A 3A
Combined Load
100W 100W 852W 3.6W 15W
Total Output
850W

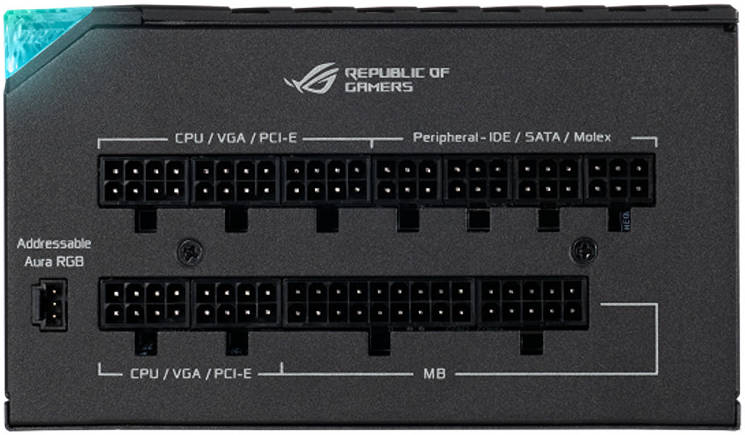

Connectors
MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 PCI-E 6+2-pin x 3 SATA x 10 PERIPHERAL x 6
Package Contents

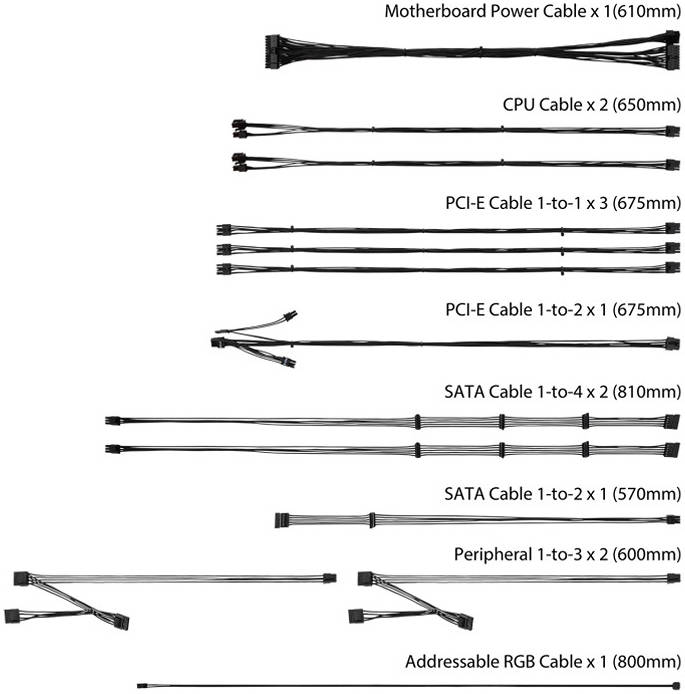

Power Cord x 1 Motherboard Power Cable x1 (610mm) CPU Cable x2 (650mm) PCIE Cable 16-pin x1 (675mm) PCIE 1-to-1 Cable x3 (675mm) PCIE 1-to-2 Cable x2 (675+75mm) SATA 1-to-2 Cable x1 (400+120mm) SATA 1-to-4 Cable x2 (400+120+120+120mm) Peripheral 1-to-3 Cable x2 (450+120+120mm) Addressable RGB Cable x1 (800mm) ROG sticker x 1 ROG cable tie x 4 Sleeved Cable Combs (6-pin) x 2 Sleeved Cable Combs (8-pin) x 6 Sleeved Cable Combs (24-pin) x 2 Chassis Screws Package x 1 Cable Tie x 10 User Manual x 1
Weight
1.865kg (Single)
AURA SYNC
ARGB

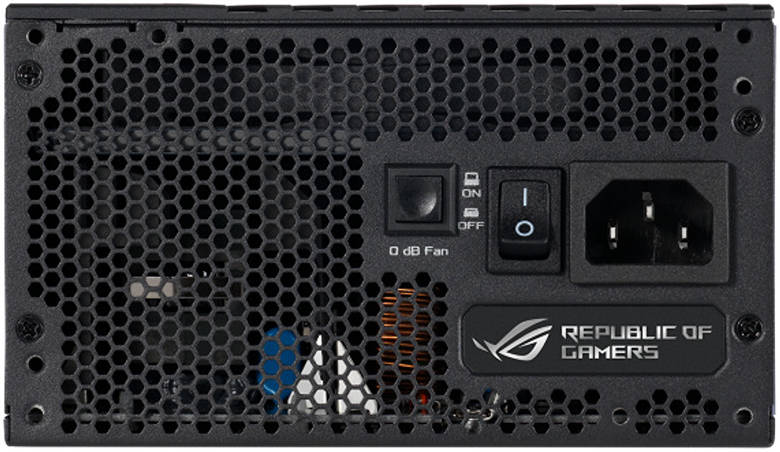

0dB Fan Button
Yes
Cybenetics Noise Level Certification
A++
