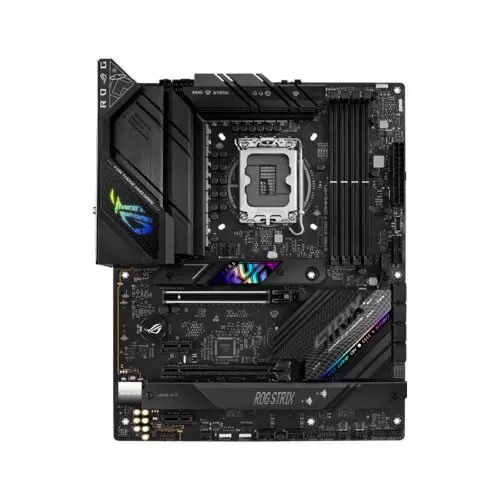

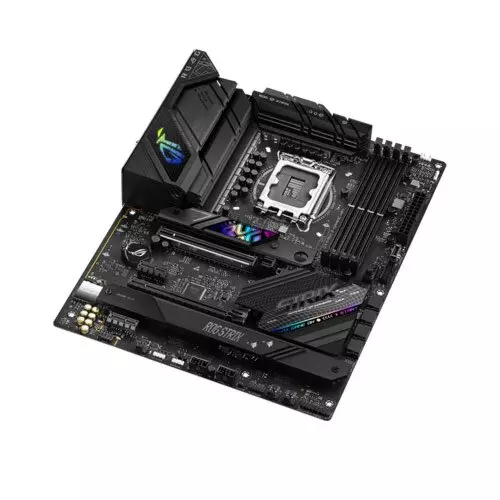

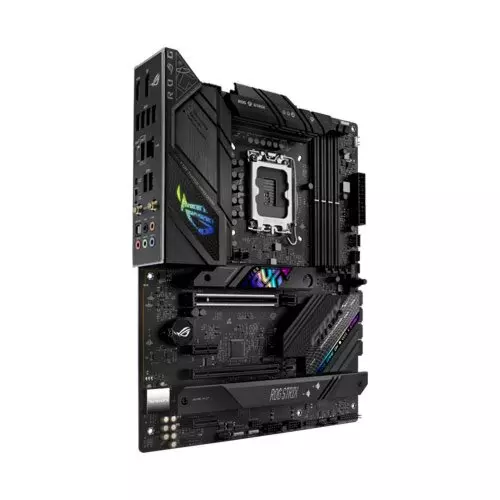

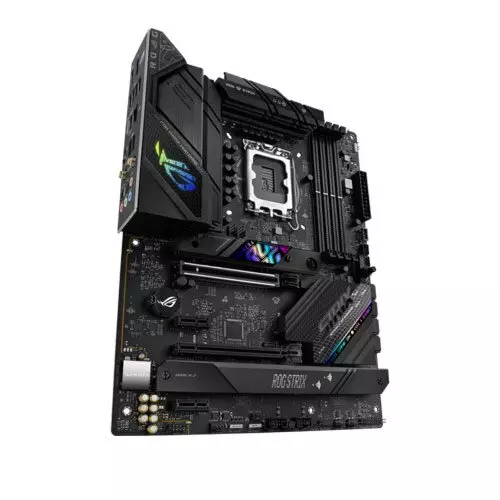

ASUS TUF GAMING B650-E WIFI/AM5,B650,USB 20G,MB,WIFI | 90MB1GT0-M0EAY0

SKU: N/A
Model Number: N/A

ROG Strix B760-F, a fantastic upgrade into 13th Gen with its dominant power solution and best-in-class DDR5 speeds. Its next-gen PCIe 5.0 slot gives overwhelming graphics card throughput for maximum FPS, and you can minimize lag via hyperfast WiFi 6E or 2.5G LAN. All these perks come alongside distinctive rainbow stripes and retro accents so you can show off your gamer pride.

5% Off

Original price was: 1,040.00 AED.Current price is: 984.00 AED.

Quantity:

Payment Methods:

5% Off

Original price was: 1,040.00 AED.Current price is: 984.00 AED.

Additional services:
Golf Simulator Solutions

Premium indoor golf simulator solutions with complete installation and support across Dubai & UAE.

325.00 AED

Flight Simulator Solutions

Professional flight simulator installation and support across Dubai & UAE.

325.00 AED

IT Support

Reliable IT support in the UAE for gaming, office, and PC environments.

215.00 AED

IT AMC Services

Proactive annual IT support services for businesses and gaming environments in Dubai & UAE.

100.00 AED

Coming Soon…

Quantity:

Payment Methods:

ROG Strix B760-F, a fantastic upgrade into 13th Gen with its dominant power solution and best-in-class DDR5 speeds. Its next-gen PCIe 5.0 slot gives overwhelming graphics card throughput for maximum FPS, and you can minimize lag via hyperfast WiFi 6E or 2.5G LAN. All these perks come alongside distinctive rainbow stripes and retro accents so you can show off your gamer pride.

PCIE® SLOT Q-RELEASE

A physical button unlocks the first PCIe slot’s security latch with one press, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.

CLEAR CMOS

The Clear CMOS button quickly resets BIOS settings to factory default. It can also be used to reboot the PC if incorrect BIOS settings have been selected.

POWER ARCHITECTURE

16 + 1 power stages, each rated to 60A, deliver ample current to drive the most powerful Intel 13th Gen processors through any workload with ease.

ALLOY CHOKES AND DURABLE CAPACITORS

High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.

SIX-LAYER PCB

A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability.

UNDENIABLY ROG STRIX

Keeping true to its roots, the Strix B760-F is proudly decorated with allusions to games of yesteryear. Scattered decals create a techno-retro fusion backdrop that is punctuated with vibrant highlights and a signature illuminated ROG logo on the I/O shroud.

Socket AMD AM5 (Ryzen 9000/8000/7000 series)
Chipset AMD B650
Memory Size 192 GB
Memory Slots 4× DDR5 DIMM Slots
Graphics 1 x DisplayPort
1 x HDMI® port
Supports 4K@60Hz as specified in HDMI 2.1.
Supports max. 8K@60Hz as specified in DisplayPort 1.4
VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
1 x PCIe 4.0/3.0 x16 slot (supports x1 mode)
1 x PCIe 4.0/3.0 x16 slot(s)
2 x PCIe 3.0 x1 slots
M.2 Slots 3x
SATA 6Gb/s ports 4x
Ethernet 1 x Realtek 2.5Gb Ethernet
TUF LANGuard
WiFi 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Frequency Band Supports 2.4/5/6GHz
Bluetooth Bluetooth® v5.3*
USB 1 x USB 20Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
2 x USB 10Gbps port(s) (1 x Type-A + 1 x USB Type-C®)
2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
3 x USB 2.0 port(s) (3 x Type-A)
3 x USB 5Gbps port(s) (3 x Type-A)
Audio – Audio cover
– Audio Shielding
– Premium audio capacitors
– Supports up to 24-Bit/192 kHz playback
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Dedicated audio PCB layers
Realtek 7.1 Surround Sound High Definition Audio CODEC*
Back Panel I/O Ports 1 x BIOS FlashBack™ button
1 x DisplayPort
1 x HDMI® port
1 x Realtek 2.5Gb Ethernet port
1 x Wi-Fi Module
2 x USB 10Gbps port(s) (1 x Type-A + 1 x USB Type-C®)
3 x USB 2.0 port(s) (3 x Type-A)
3 x USB 5Gbps port(s) (3 x Type-A)
5 x Audio jacks
Fan and Cooling 1 x 4-pin AIO Pump header(s)
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
4 x 4-pin Chassis Fan header(s)
Power 1 x 24-pin Main Power connector
1 x 4-pin +12V Power connector
1 x 8-pin +12V Power connector
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Operating System Windows® 10 64-bit
Windows® 11
Form Factor ATX 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
