| CPU |
Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Support Intel® Core™ Ultra Processors (Series 2) ,LGA1851* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** |
|---|---|
| Chipset | Intel® B860 Chipset |
| Memory |
4 x DIMM slots, max. 256GB, DDR5 ASUS Enhanced Memory Profile III(AEMPIII) DIMM Fit Dual Channel Memory Architecture Support up to 8800+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Supports Intel® Extreme Memory Profile (XMP) memory module |
| Graphics |
1 x DisplayPort 1 x HDMI™ port 1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output** Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports 4K@60Hz as specified in HDMI 2.1. Supports max. 4K@60Hz as specified in DisplayPort 1.4. VGA resolution support depends on processors' or graphic cards' resolution. |
| Expansion Slots |
1 x PCIe 4.0 x4 slot 1 x PCIe 5.0 x16 slot Intel® B860 Chipset Intel® CoreTM Ultra Processors(Series 2)* |
| Storage |
4 x SATA 6Gb/s ports Intel® B860 Chipset Intel® Core™ Ultra Processors(Series 2)* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* |
| Ethernet |
1 x Realtek 2.5Gb Ethernet TUF LANGuard |
| Wireless |
2×2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Wi-Fi 7* |
| Bluetooth | Bluetooth® v5.4 |
| USB |
1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 2.0 headers support 2 additional USB 2.0 ports 1 x USB 2.0 ports (1x Type-A) 1 x USB 20Gbps port (1 x USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 10Gbps port (2 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) Front USB (Total 5 ports) Rear USB (Total 8 ports) USB Type-C® power delivery output: max. 5V/3A |
| Audio |
– Audio Shielding – Dedicated audio PCB layers – Premium audio capacitors – Rear optical S/PDIF out port – Supports up to 24-Bit/192 kHz playback – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Features Realtek 7.1 Surround Sound High Definition Audio CODEC* |
| Back Panel I/O Ports |

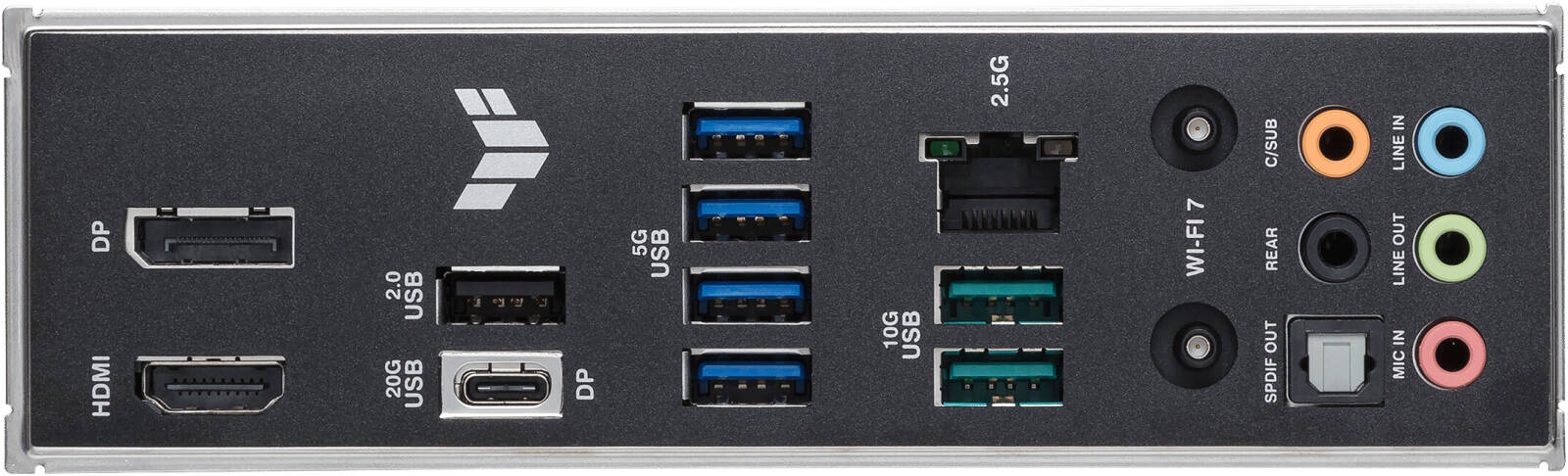

1 x DisplayPort 1 x HDMI™ port 1 x Optical S/PDIF out port 1 x Realtek 2.5Gb Ethernet port 1 x USB 2.0 port (1 x Type-A) 1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode) 1 x Wi-Fi Module 2 x USB 10Gbps port (2 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 5 x Audio jacks |
| Fan and Cooling |
1 x 4-pin AIO Pump header 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 3 x 4-pin Chassis Fan headers |
| Power |
1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors |
| Miscellaneous |
1 x 10-1 pin Front System Panel header 1 x Chassis Intrusion header 1 x Clear CMOS header 1 x Front Panel Audio header (F_AUDIO) 1 x Thunderbolt™ (USB4®) header 3 x Addressable Gen 2 headers |
| ASUS TUF PROTECTION |
DIGI+ VRM ESD Guards Overvoltage Protection SafeSlot Stainless-Steel Back I/O TUF LANGuard |
| ASUS Q-Design |
M.2 Q-Latch PCIe Slot Q-Release Q-Antenna Q-Dashboard Q-DIMM Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) |
| ASUS Thermal Solution |
M.2 heatsinks VRM heatsink design |
| ASUS EZ DIY |
CPU Socket lever protector Pre-mounted I/O shield ProCool SafeDIMM |
| AURA SYNC | Addressable Gen 2 headers |
| ASUS Exclusive Software |
Armoury Crate ASUS DriverHub ASUS GlideX Aura Creator Aura Sync DTS Audio Processing Fan Xpert 2+ Norton 360 for Gamers (60 Days Free Trial) Power Saving TUF GAMING CPU-Z TurboV Core WinRAR (40 Days Free Trial) |
| UEFI BIOS |
ASUS CrashFree BIOS 3 ASUS EZ DIY ASUS EZ Flash 3 ASUS MyHotkey ASUS UEFI BIOS EZ Mode NPU Boost |
| BIOS | 2 x 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories |
Cables 2 x SATA 6Gb/s cables Documentation 1 x Quick start guide |
| Operating System | Windows 11 (22H2 & later) |
| Form Factor |
9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm ) mATX Form Factor |

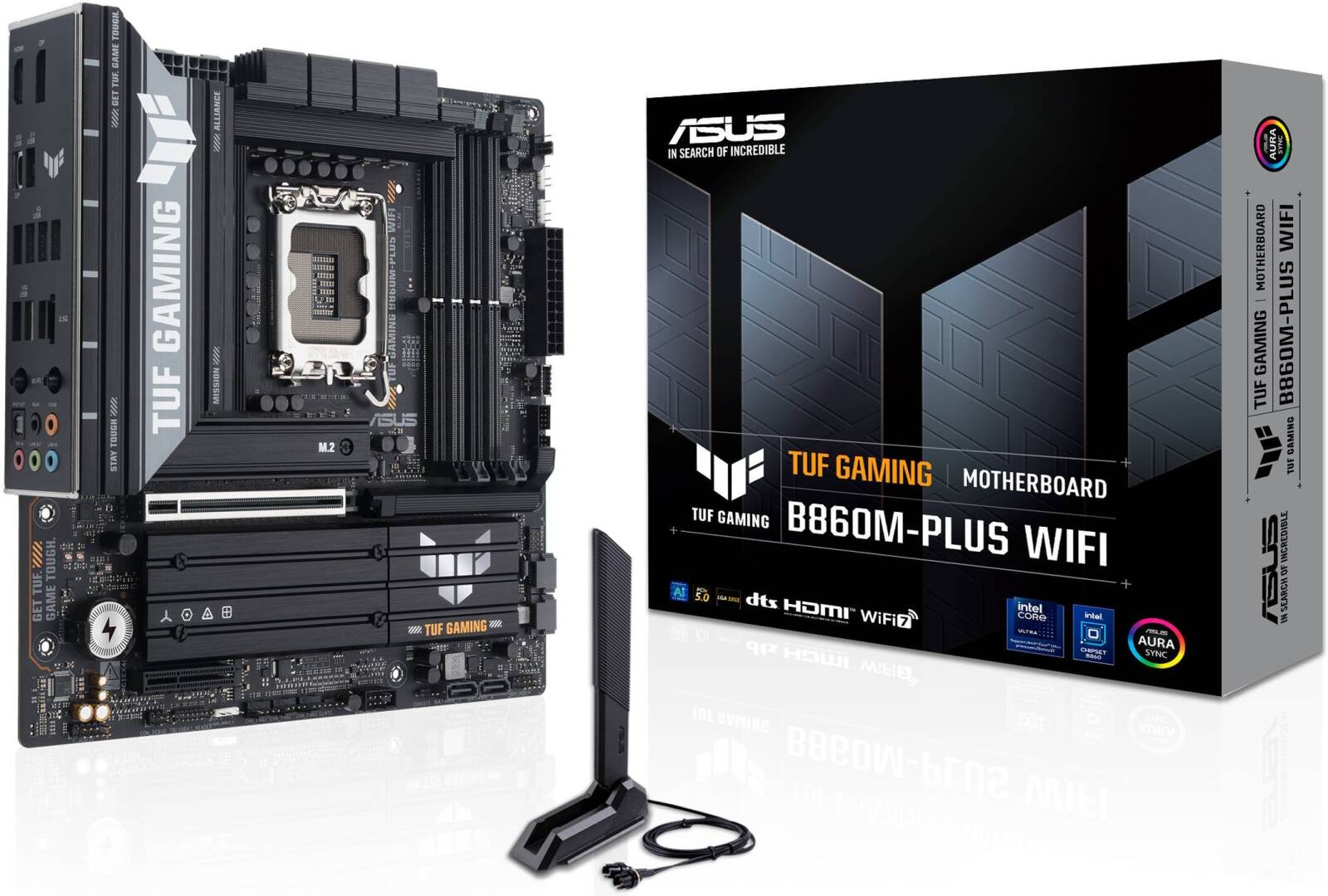

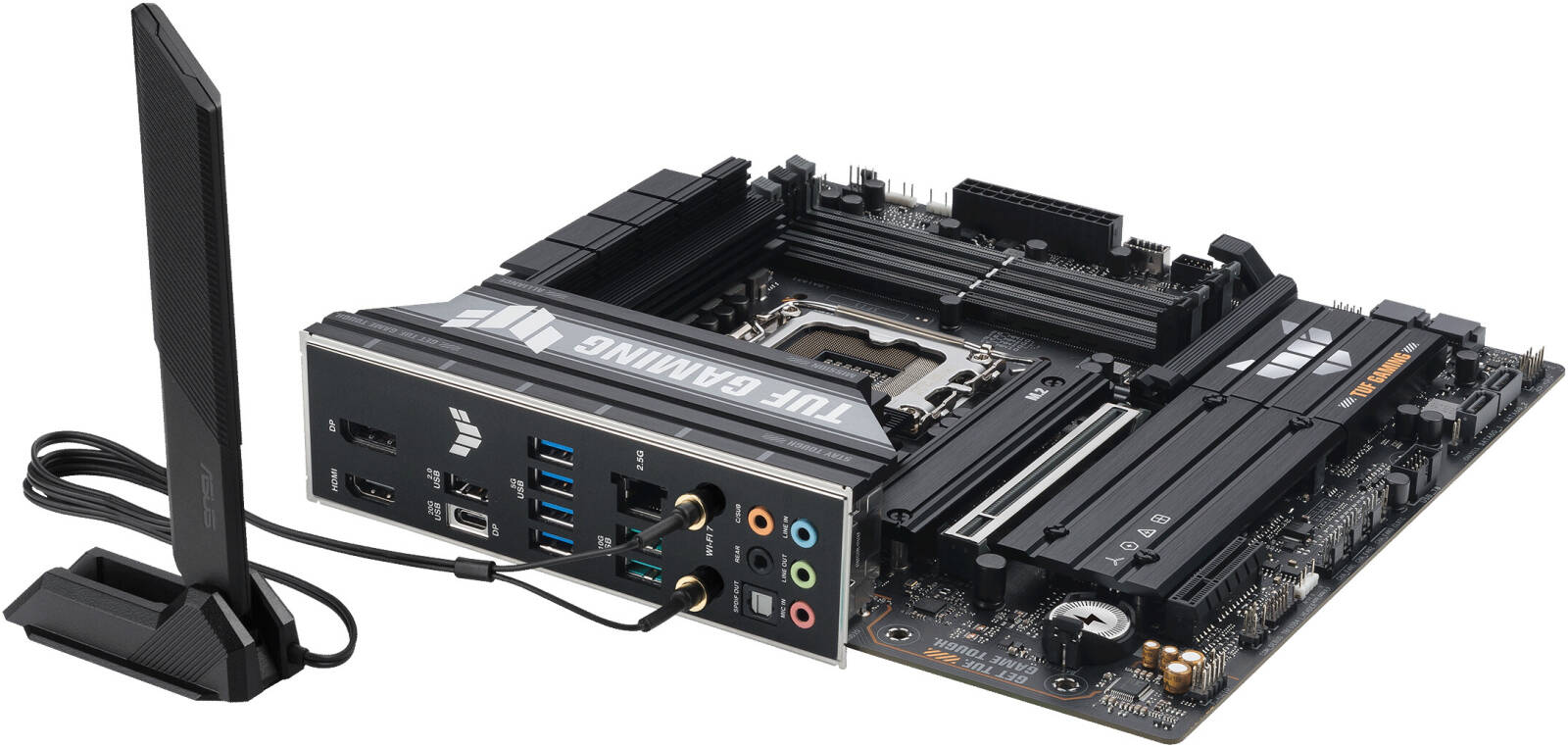

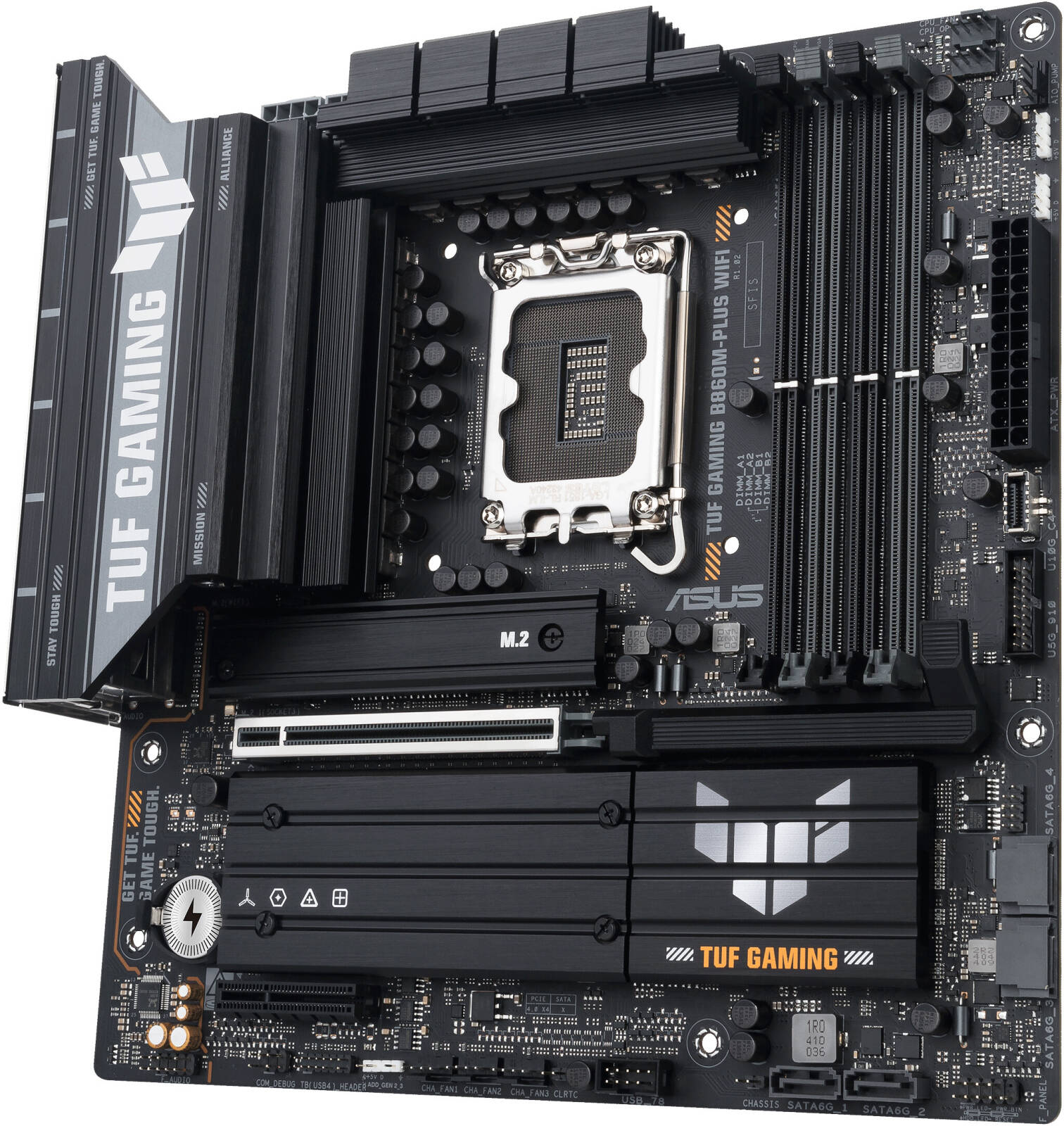

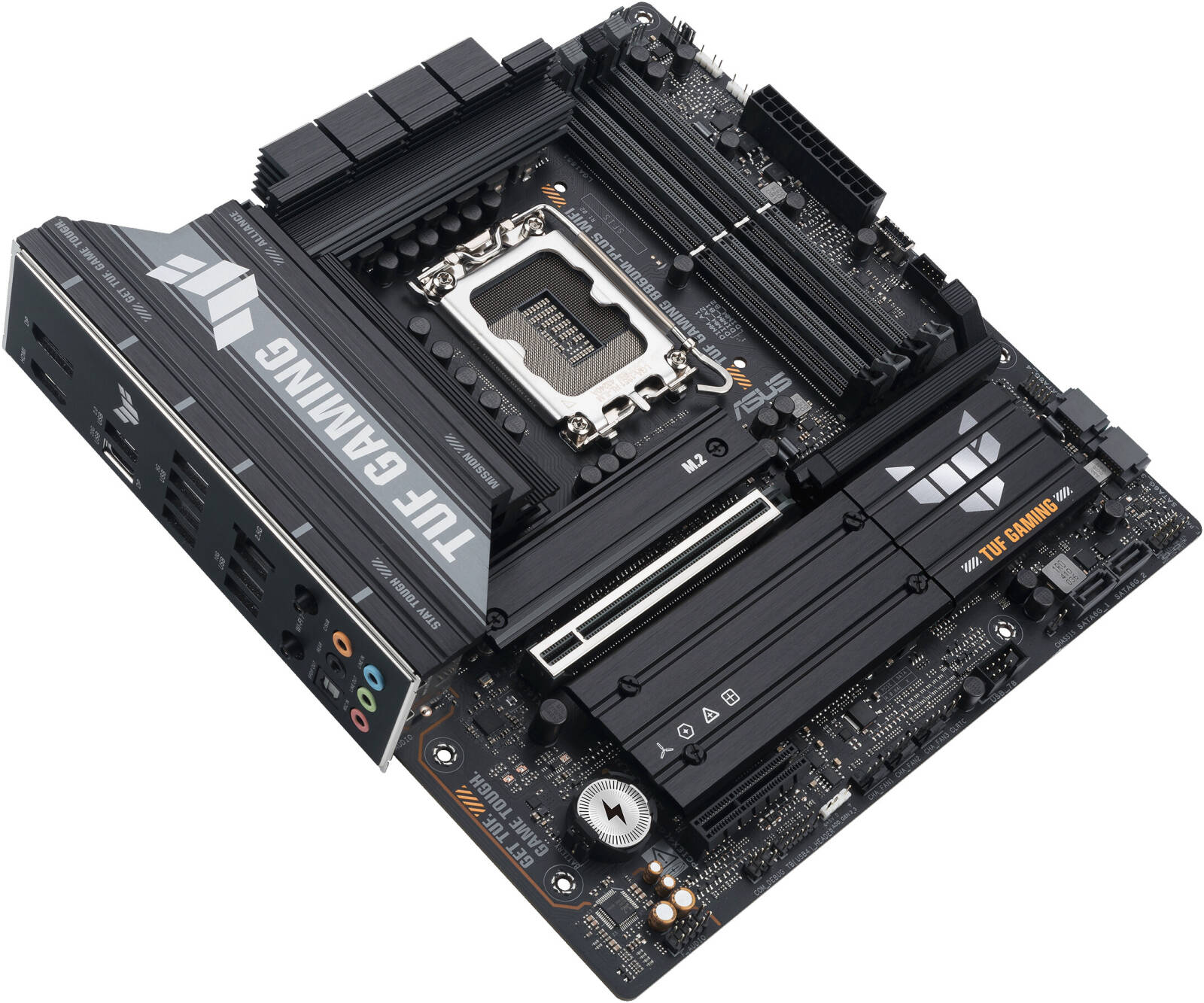

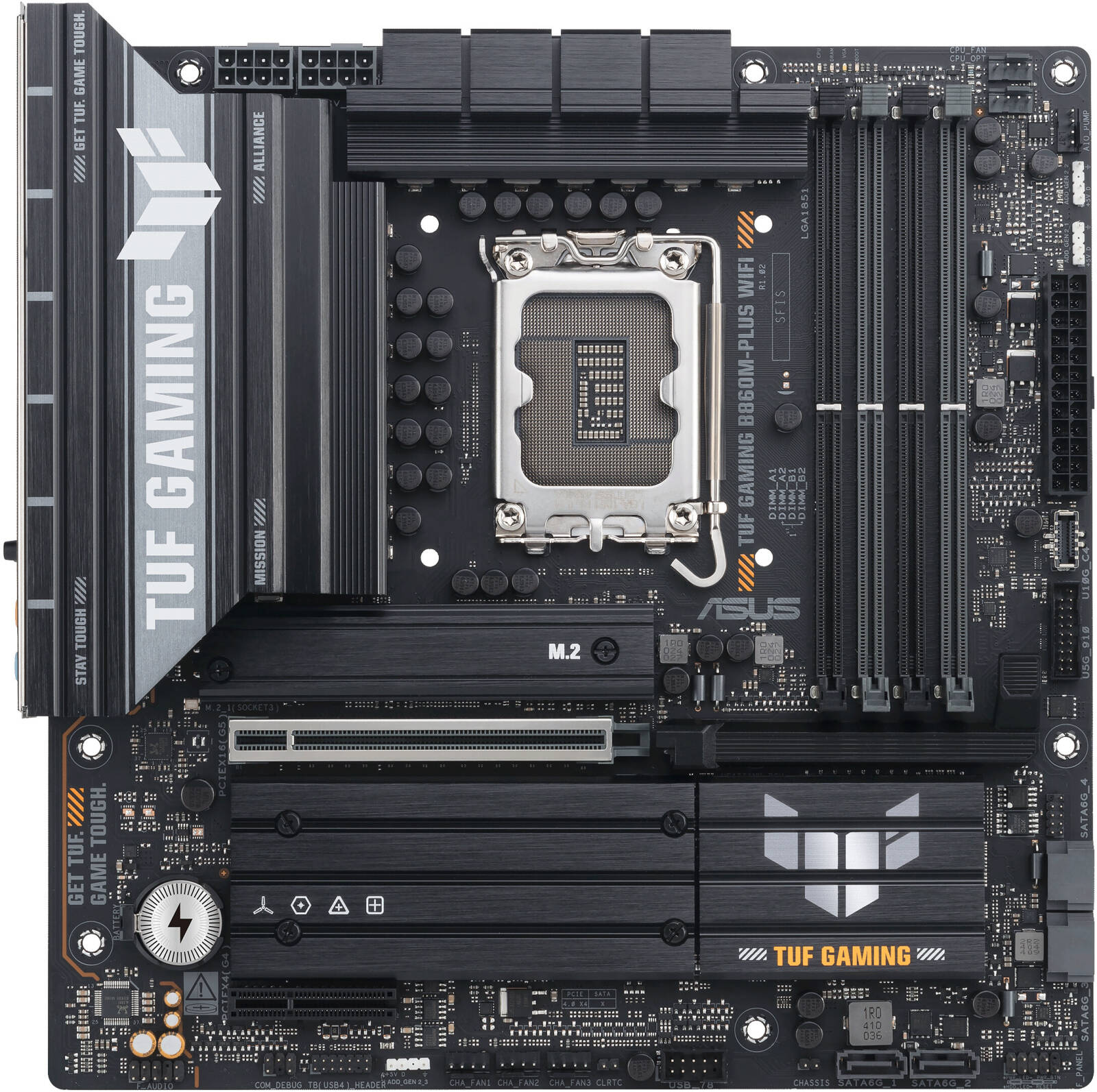

The ASUS TUF GAMING B860M-PLUS WiFi brings unbeatable durability and reliable performance to compact builds. Built for the latest Intel® Core™ Ultra Processors (Series 2), it combines cutting-edge power delivery, robust thermal design, and advanced AI capabilities — making it a powerhouse for gamers, creators, and PC enthusiasts who demand both strength and speed in a smaller form factor.
Engineered with military-grade components, this board ensures consistent, rock-solid performance even under extreme conditions. The 12+1+2+1 power stage design, paired with ProCool 8+8 pin connectors, provides clean and stable power for high-core-count CPUs. The 8-layer PCB improves heat dissipation and stability, allowing for smooth overclocking and extended reliability.
Memory performance shines with DDR5 support and ASUS-exclusive tuning technologies like AEMP III and DIMM Fit, which intelligently optimize clock speeds and memory stability for faster, more efficient performance — reaching speeds beyond DDR5-7600. Whether you’re gaming competitively, editing content, or multitasking across AI-driven workloads, your system stays smooth and responsive.
The TUF B860M-PLUS WiFi also supports PCIe® 5.0 M.2, enabling lightning-fast data transfers up to 128 Gbps, with NVMe RAID support for next-gen storage performance. WiFi 7 and 2.5Gb Ethernet deliver seamless, high-speed connectivity, while the NPU Boost feature accelerates AI workflows by up to 24%, unlocking new possibilities for AI-enhanced tasks.
For builders, ASUS adds smart design touches like Asynchronous Clock Control for better frequency flexibility, and AI Advisor, an AI-powered assistant that helps users explore and optimize motherboard features with simple, natural-language guidance.
Compact, efficient, and battle-ready, the ASUS TUF GAMING B860M-PLUS WiFi delivers next-gen performance, AI power, and legendary TUF reliability — all within a micro-ATX form factor built to last.
Buy the ASUS TUF GAMING B860M-PLUS WiFi Motherboard today and build your compact powerhouse with next-gen AI performance, unmatched durability, and seamless connectivity.
