Xigmatek Titan PT 1200W 80 Plus Platinum Fully Modular Power Supply | EN40597

Xigmatek Titan PT 1200W 80

The Titan PT 1200W is a high-performance, fully modular power supply from Xigmatek, designed for demanding PC builds. It features an 80 Plus Platinum efficiency rating, modern protections, and support for the latest hardware standards.

Key Features & Highlights

• 80 Plus Platinum Efficiency
  Delivers excellent energy efficiency to reduce power wastage and heat generation.

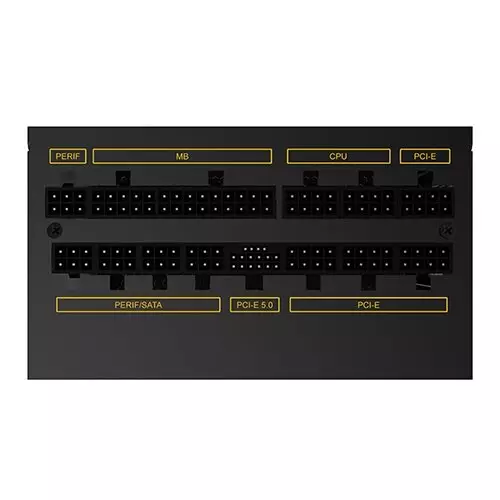

• Fully Modular Design
  All cables are detachable, allowing you to use only the ones needed, improving cable management and airflow.

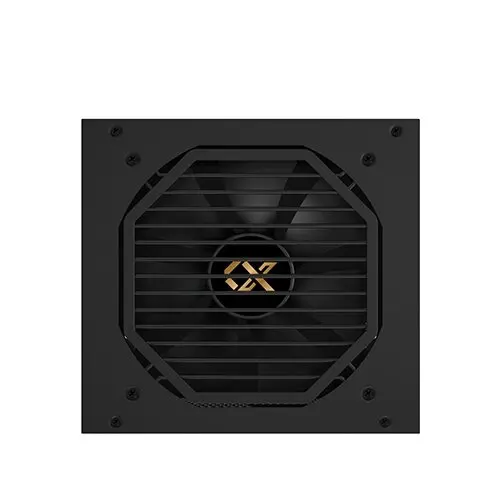

• Smart ECO Fan Mode & 120 mm FDB Bearing Fan
  The fan remains off during low loads (startup and idle) and only spins when needed, reducing noise. Under load, it adjusts RPM automatically.

• LLC Resonant Converter + DC‑to‑DC Conversion
  Uses an LLC resonant topology and DC‑to‑DC regulation to maintain stable, precise voltages across different loads.

• Single +12 V Rail Design
  The PSU provides a single powerful +12 V rail for better stability and compatibility with high-draw components.

• Support for PCIe Gen 5.0
  Compatible with next-gen graphics cards, offering up to 600 W output to PCIe devices.

• Protection Features
  Includes OCP (Over Current Protection), OVP (Over Voltage), UVP (Under Voltage), OPP (Over Power), SCP (Short Circuit Protection), and more for safe operation.

• Compact Size
  The PSU has a relatively short length (around 140 mm) to fit into more cases without clearance issues.

• High-Quality Components
  Uses 100% Japanese electrolytic capacitors for durability and reliability.

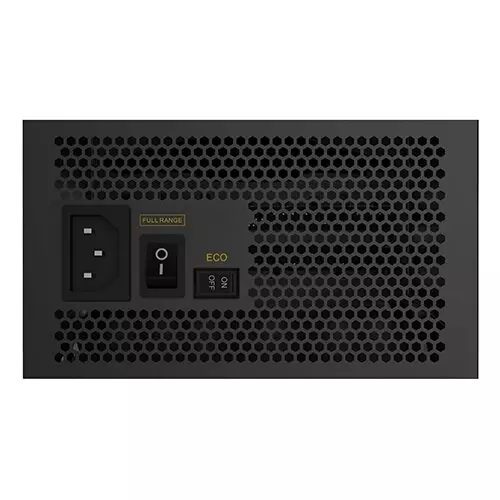

• Full Range Input & Active PFC
  Accepts input voltage from 100 to 240 V (full range) with active power factor correction.
