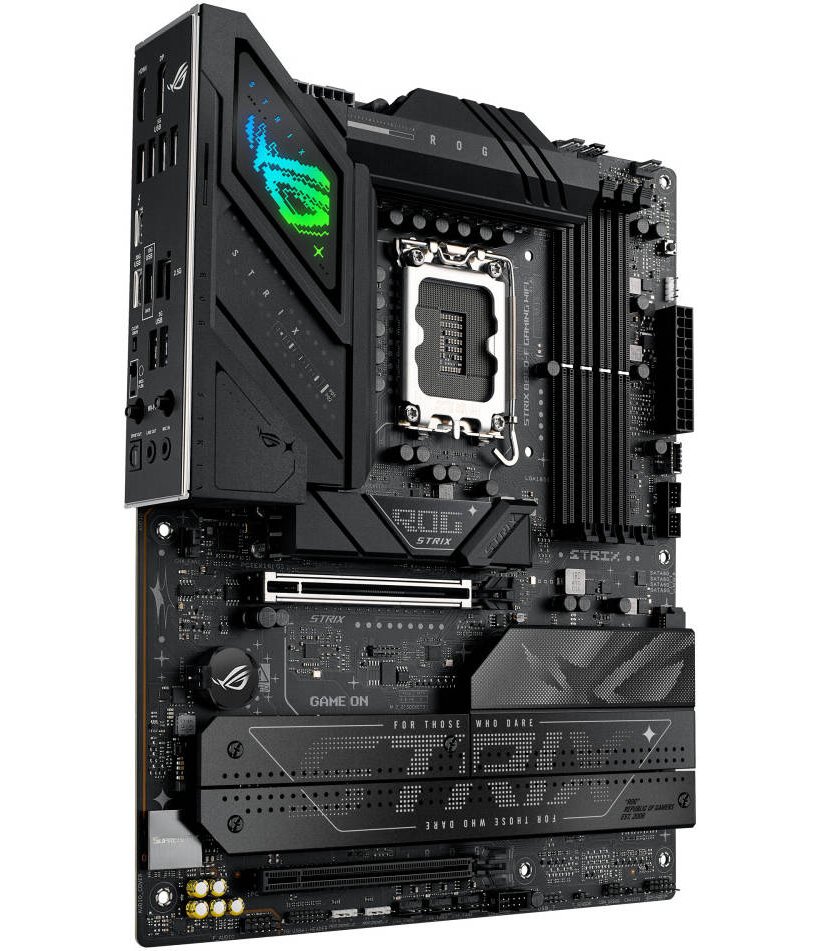

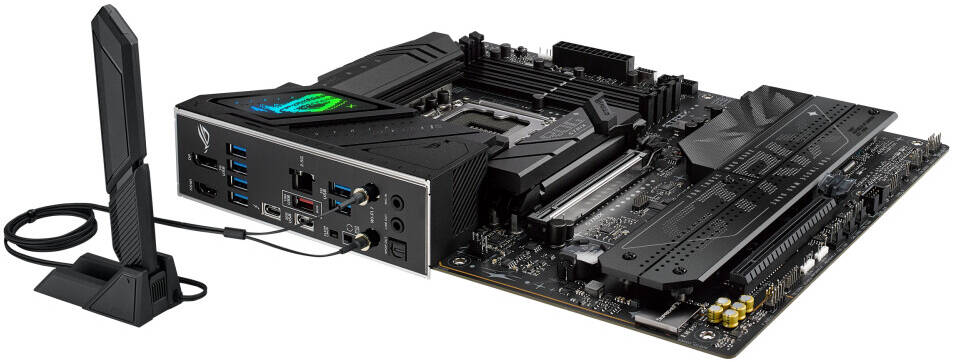

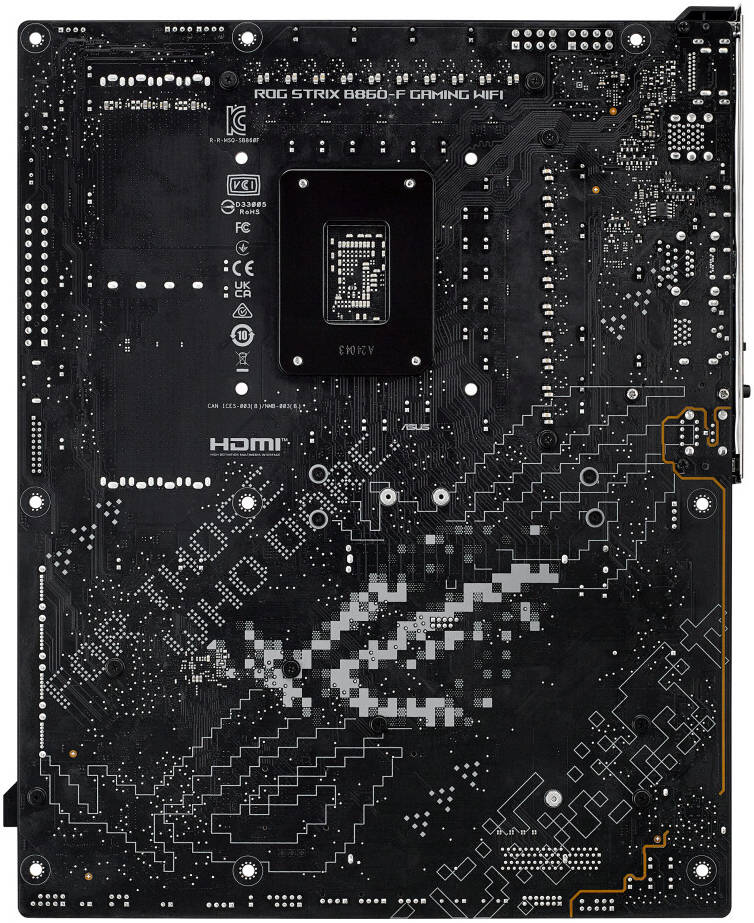

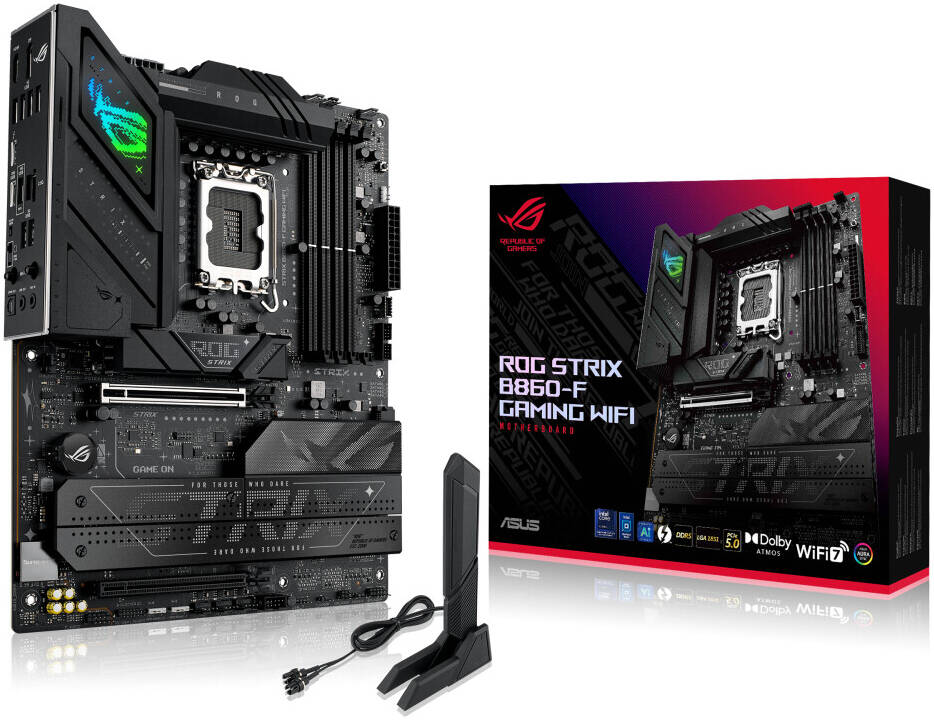

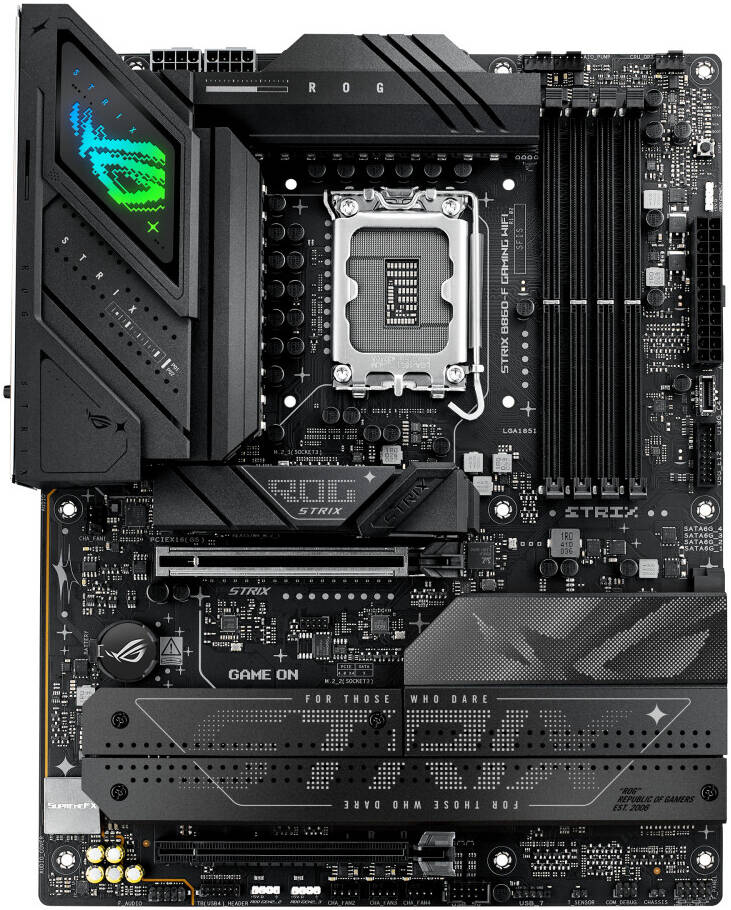

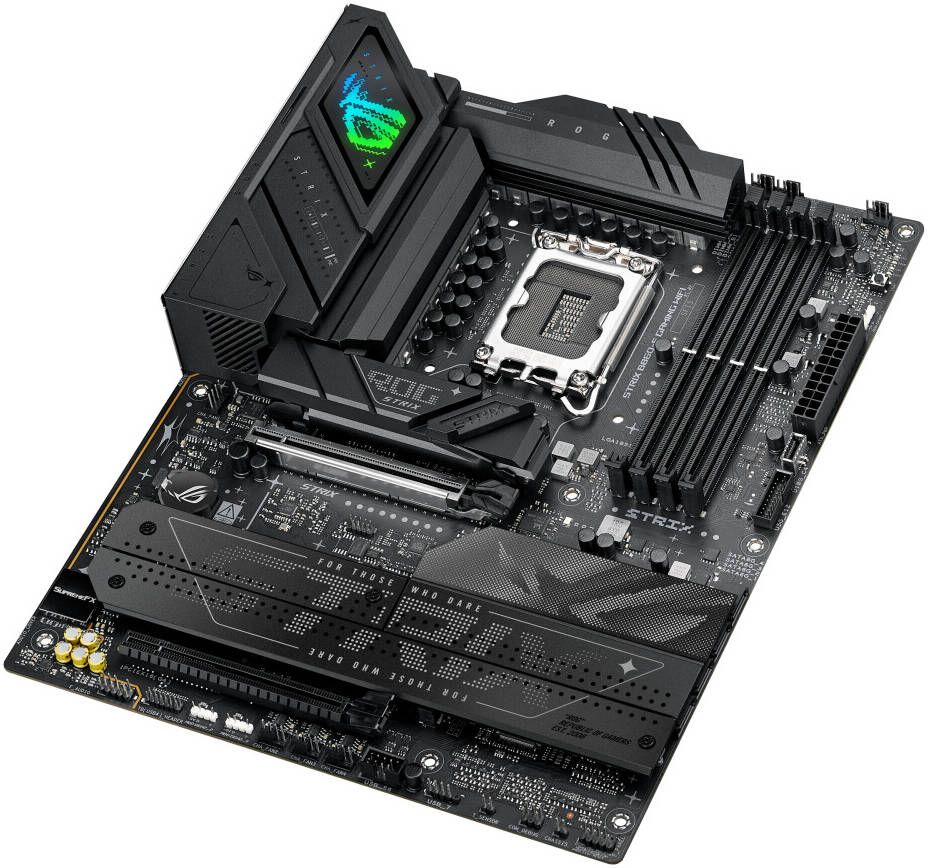

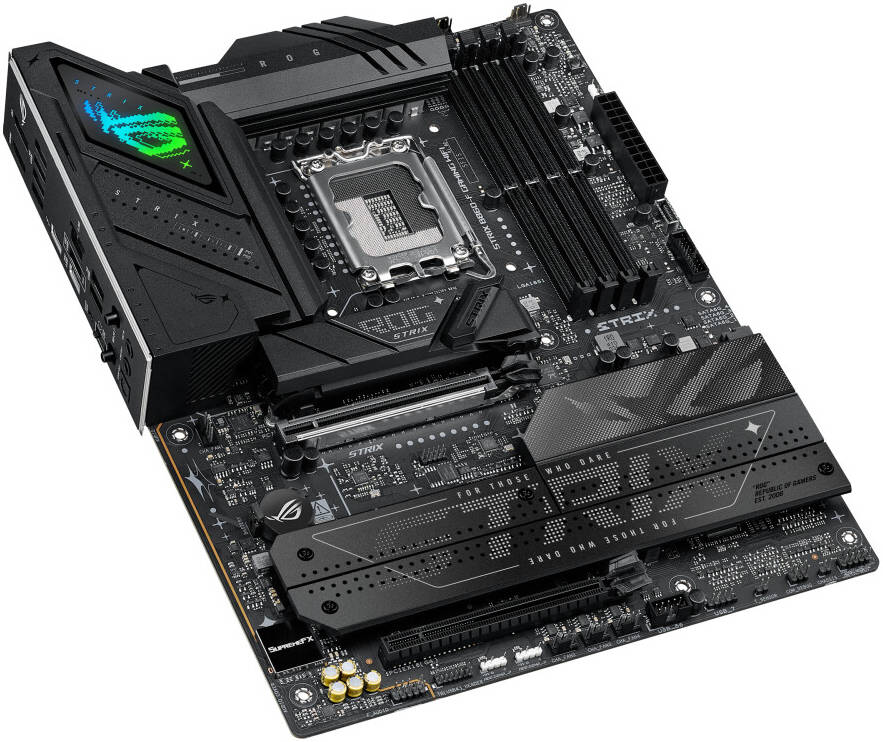

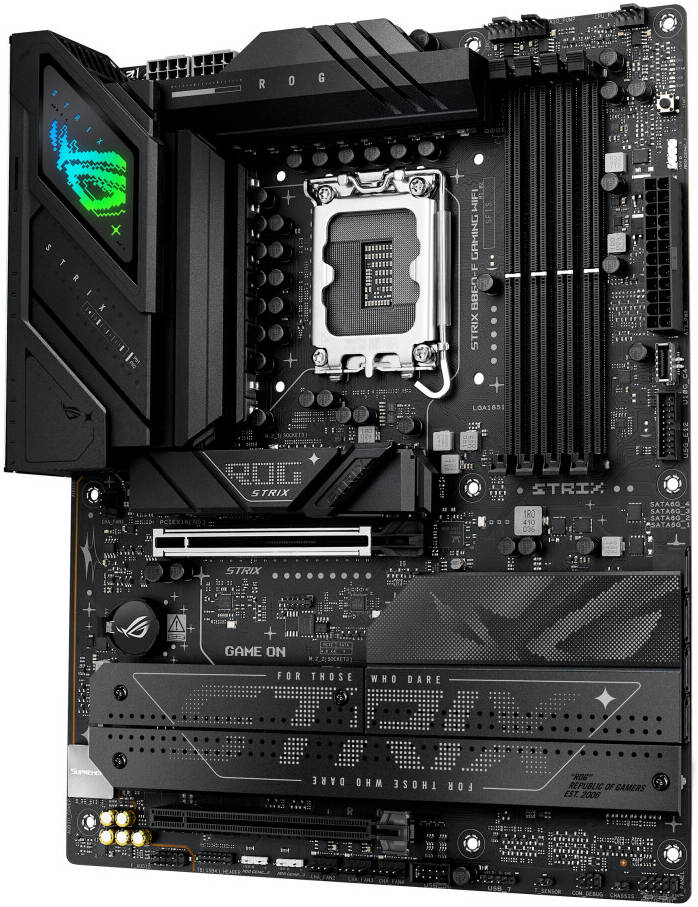

ASUS ROG STRIX B860-F Gaming WIFI ATX Motherboard

ASUS ROG STRIX B860-F Gaming WIFI ATX Motherboard - Image 1

ASUS ROG STRIX B860-F Gaming WIFI ATX Motherboard - Image 2

ASUS ROG STRIX B860-F Gaming WIFI ATX Motherboard - Image 3

ASUS ROG STRIX B860-F Gaming WIFI ATX Motherboard - Image 4

ASUS ROG STRIX B860-F Gaming WIFI ATX Motherboard - Image 5

ASUS ROG STRIX B860-F Gaming WIFI ATX Motherboard - Image 6

ASUS ROG STRIX B860-F Gaming WIFI ATX Motherboard

1,109.00 AED

SKU: N/A

Model Number: N/A

ROBUST POWER SOLUTION 16 + 1 + 2 + 1 power solution rated for up to 80A per stage
AI Networking II
WIFI 7
Thunderbolt™ 4
GEN 5 SUPPORT X1 Onboard M.2 Slot
DDR5 9066+ MT/s,  MAX. 256GB, DIMM FIT, AEMP III

Compare

Remove

1,109.00 AED

Quantity:

Payment Methods:

CPU	Intel® Socket LGA1851 for Intel® Core™ Ultra Processors(Series 2) Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Chipset	Intel® B860 Chipset
Memory	4 x DIMM slots, max. 256GB, DDR5 ASUS Enhanced Memory Profile III (AEMP III) DIMM Fit Dual Channel Memory Architecture Support up to 9066MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Supports Intel® Extreme Memory Profile (XMP) memory module
Graphics	1 x DisplayPort 1 x HDMI™ port 1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort and Thunderbolt™ video outputs Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports 8K@60Hz with DSC as specified in HDMI 2.1. Supports max. 8K@60Hz with DSC as specified in DisplayPort 1.4. VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots	1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 5.0 x16 slot (supports x16 mode) Intel® B860 Chipset Intel® Core™ Ultra Processors(Series 2)*
Storage	4 x SATA 6Gb/s ports Intel® B860 Chipset M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)* Support Intel® Core™ Ultra Processors(Series 2) Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
Ethernet	1 x Intel® 2.5Gb Ethernet ASUS LANGuard
Wireless	2×2 Wi-Fi 7 (802.11be) For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details. For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
Bluetooth	Bluetooth® v5.4
USB	1 x Thunderbolt™ 4 port (1 x USB Type-C®) 1 x USB 10Gbps (1 x USB Type-C®) 1 x USB 10Gbps port (1 x Type-A) 1 x USB 20Gbps port (1 x USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports 6 x USB 5Gbps ports (6 x Type-A) Front USB (Total 6 ports) Rear USB (Total 9 ports)
Audio	ROG SupremeFX 7.1 Surround Sound, ALC4080, Savitech SV3H712 AMP, S/PDIF out, Premium capacitors

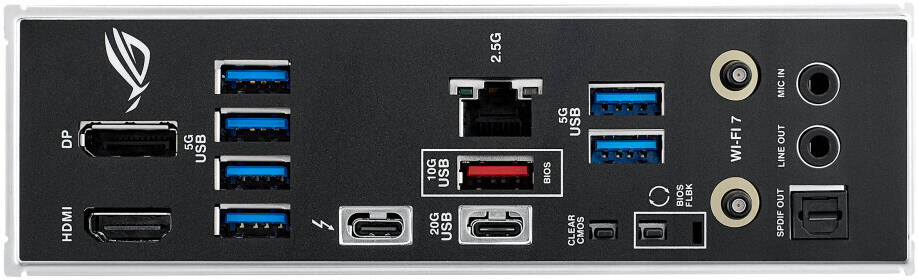

Back Panel I/O Ports	1 x BIOS FlashBack™ button 1 x Clear CMOS button 1 x DisplayPort 1 x HDMI™ port 1 x Intel® 2.5Gb Ethernet port 1 x Optical S/PDIF out port 1 x Thunderbolt™ 4 (1 x USB Type-C®) 1 x USB 10Gbps port (1 x Type-A) 1 x USB 20Gbps port (1 x USB Type-C®) 1 x Wi-Fi Module 2 x Audio jacks, 1 x Optical S/PDIF out 6 x USB 5Gbps ports (6 x Type-A)
Fan and Cooling	1 x 4-pin AIO Pump header(s) 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header(s) 4 x 4-pin Chassis Fan headers
Power	1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors
Miscellaneous	1 x 10-1 pin Front System Panel header 1 x Chassis Intrusion header 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4®) header 3 x Addressable Gen2 headers
Special Features	M.2 Q-Latch/Release/Slide, PCIe Slot Q-Release Slim, VRM heatsinks, Aura Sync, BIOS FlashBack™
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Operating System	Windows 11 (22H2 & later)
Form Factor	ATX 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) ATX Form Factor

The ASUS ROG STRIX B860-F Gaming WiFi ATX motherboard is designed for gamers and creators who demand top-tier performance, next-gen connectivity, and intelligent AI capabilities. Powered by Intel® Core™ Ultra Processors (Series 2) with integrated NPU acceleration, this board takes advantage of NPU Boost technology — allowing one-click overclocking that increases AI performance by up to 24%. Combined with cutting-edge support for PCIe® 5.0, Thunderbolt™ 4, and WiFi 7, it ensures blazing-fast data transfer, ultra-low latency, and seamless connectivity for both gaming and productivity.

Engineered with ASUS AI innovations, the ROG STRIX B860-F introduces AI Advisor and AI Networking II, offering intelligent tuning, automatic network optimization, and effortless access to advanced system features. The asynchronous clock design separates CPU base clocks from memory, NPU, and other domains, unlocking overclocking flexibility without compromising stability. DDR5 Domination, paired with ASUS Enhanced Memory Profile III (AEMP III) and DIMM Fit, pushes memory performance beyond limits while maintaining consistent reliability.

True to the ROG spirit, this motherboard combines performance with style through Aura Sync RGB lighting and a premium, gamer-focused aesthetic. Every detail — from reinforced PCIe 5.0 slots to enhanced signal routing — is meticulously designed to deliver smooth performance, faster response, and long-term durability.

Buy the ASUS ROG STRIX B860-F Gaming WiFi Motherboard today and experience elite AI performance and next-level gaming power.
