ROG STRIX Z890-A GAMING WIFI | 90MB1I90-M0EAY0

ROG STRIX Z890-A GAMING WIFI | 90MB1I90-M0EAY0 - Image 1

ROG STRIX Z890-A GAMING WIFI | 90MB1I90-M0EAY0 - Image 2

ROG STRIX Z890-A GAMING WIFI | 90MB1I90-M0EAY0 - Image 3

ROG STRIX Z890-A GAMING WIFI | 90MB1I90-M0EAY0 - Image 4

ROG STRIX Z890-A GAMING WIFI | 90MB1I90-M0EAY0 - Image 5

ROG STRIX Z890-A GAMING WIFI | 90MB1I90-M0EAY0 - Image 6

ROG STRIX Z890-A GAMING WIFI | 90MB1I90-M0EAY0 - Image 7

ROG STRIX Z890-A GAMING WIFI | 90MB1I90-M0EAY0

1,799.00 AED

SKU: N/A

Model Number: N/A

Intel^® Z890 LGA 1851 ATX motherboard, Advanced AI PC-ready, 16+1+2+2 power stages, DDR5 slots, DIMM Flex, AEMP III, WiFi 7 with ASUS WiFi Q-Antenna, five M.2 slots, one PCIe^® 5.0 NVMe^® SSD slot with M.2 Q-release, PCIe 5.0 x16 SafeSlot with PCIe Slot Q-Release Slim, and full support for next-gen graphics card, two Thunderbolt™ 4 ports, USB 10Gbps Type-C^®rear I/O port with up to 30-watt Power Delivery fast charging, NPU Boost, ASUS AI Advisor, AI Overclocking, AI Cooling II, AI Networking II and Polymo Lighting

Compare

Remove

1,799.00 AED

Quantity:

Payment Methods:

CPU	Support Intel® Core™ Ultra Processors (Series 2)* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Chipset	Intel® Z890 Chipset
Memory	4 x DIMM slots, max. 256GB, DDR5 Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module Supports DIMM Flex Supports DIMM FIT ASUS Enhanced Memory Profile III (AEMPIII)
Graphics	1 x DisplayPort* 1 x HDMI™ port* 2 x Intel® Thunderbolt™ 4 support DisplayPort and Thunderbolt™ video outputs*** – Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. * Supports max. 8K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. * In Thunderbolt™ 4 mode, supports up to 8K @60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, supports up to UHBR20. ** VGA resolution support depends on processors' or graphic cards' resolution. *** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots	Intel® Core™ Ultra Processors (Series 2) 1 x PCIe 5.0 x16 slot Intel® Z890 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)
Storage	Total Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports Intel® Core™ Ultra Processors (Series 2)* Intel® Z890 Chipset
Ethernet	1 x Intel® 2.5Gb Ethernet ASUS LANGuard
Wi-Fi	Wi-Fi 7 2×2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
Bluetooth	v5.4
USB	Rear USB (Total 10 ports) 2 x Thunderbolt™ 4 ports (2 x USB Type-C®)* 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®with up to 30W PD/PPS Fast-charge)** 2 x USB 5Gbps ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C® )* 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A ** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking – High quality 120 dB SNR stereo playback output and 110 dB SNR recording input – Supports up to 32-Bit/384 kHz playback on front panel Audio Features – SupremeFX Shielding Technology – Savitech SV3H712 AMP – Rear optical S/PDIF out port – Premium audio capacitors – Audio cover

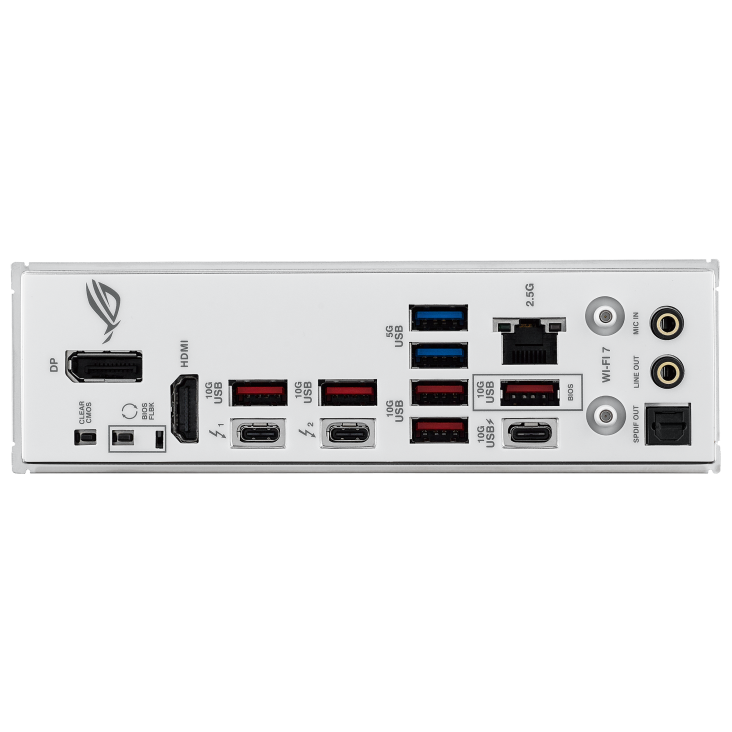

Back Panel I/O Ports	2 x Thunderbolt™ 4 ports (2 x USB Type-C®)* 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®with up to 30W PD/PPD Fast-charge) 2 x USB 5Gbps ports (2 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 2 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button
Fan and Cooling	1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers
Power	1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors
Miscellaneous	3 x Addressable Gen 2 headers 1 x Chassis Intrusion header 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4®) header
BIOS	256 Mb UEFI AMI BIOS
Manageability	WOL by PME, PXE

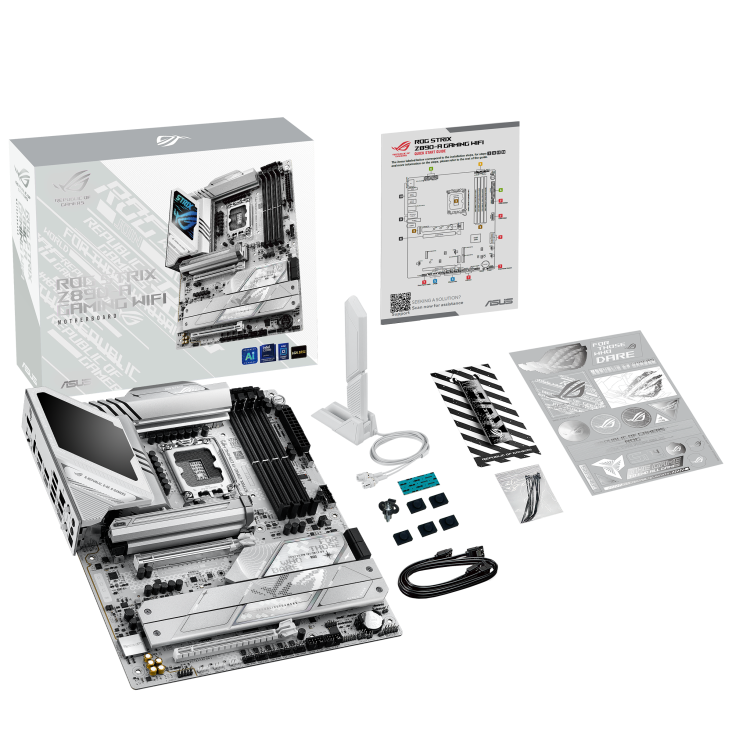

Accessories	Cables 2 x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 22110 Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Cable ties package 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix stickers 5 x M.2 rubbers Documentation 1 x Quick start guide
Operating System	Windows 11 (22H2 later)
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Ready for Advanced AI PCs

Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications

Intel^® LGA 1851 Socket

Ready for Intel^® Core™ Ultra processors (Series 2)

Exclusive AI Technologies

NPU Boost, ASUS AI Advisor, ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking II

Exclusive Memory Technologies

DIMM Fit, DIMM Flex and AEMP III to simplify setup and improve performance

Robust Power Solution

16(90A)+1(90A)+2(90A)+2(80A) power stages with ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors

Optimized Thermal Design

Massive heatsinks with integrated I/O cover, high-conductivity thermal pads, and connected with an L-shaped heatpipe

Latest M.2 Support

One PCIe^® 5.0 M.2 slots and four PCIe 4.0 M.2 slots, all with substantial cooling solutions

Abundant Connectivity

Dual Thunderbolt™ 4 USB Type-C^® ports, USB 10Gbps Type-C rear I/O port with up to 30-watt Power Delivery fast charging plus USB Wattage Watcher, five additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlot, and full support for next-gen graphics card, HDMI™ 2.1 and DisplayPort™ 1.4

High-Performance Networking

On-board Intel Wi-Fi 7 (802.11be) with ASUS WiFi Q-Antenna, Intel 2.5 Gb Ethernet

DIY-Friendly Design

PCIe Slot Q-Release Slim, new M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, BIOS Q-Dashboard, Q-LED, FlexKey button, Start button, BIOS FlashBack™ button, Clear CMOS button and pre-mounted I/O shield

Immersive Audio

ROG SupremeFX ALC4080 codec with Savitech SV3H712 amplifier, along with Dolby Atmos^®

Unmatched Personalization

I/O cover with Polymo Lighting, three Gen 2 ARGB headers, all configurable with ASUS-exclusive Aura Sync RGB lighting

Renowned Software

ASUS DriverHub, Dolby Atmos^®, TurboV Core, GlideX, HWiNFO, bundled 60-days AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard
