- ATX 3.1 Ready
- PCIe Gen 5.1 Ready

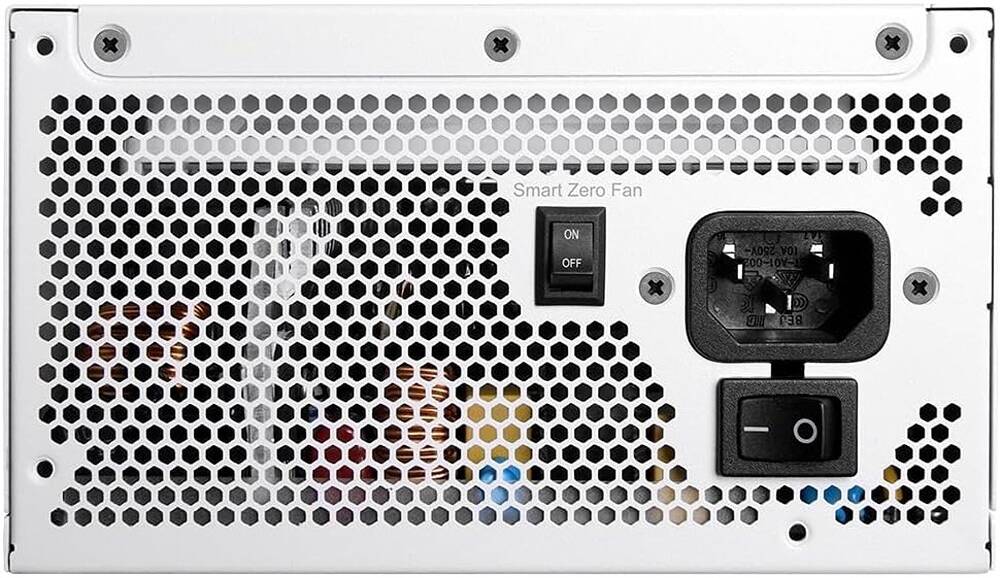

- Ultra Quiet 120mm Hydraulic Bearing Fan with Smart Zero Fan
- High Amperage Single +12V Rail & High-Class Technologies
- Fully Modular Low-Profile Cables
- Built-in Industrial Grade Protection
- 80 PLUS Gold Certified
80 PLUS Gold certified, fully modular PSU, compatible with ATX 3.1 specifications, and equipped with a native 12V-2×6 connector.

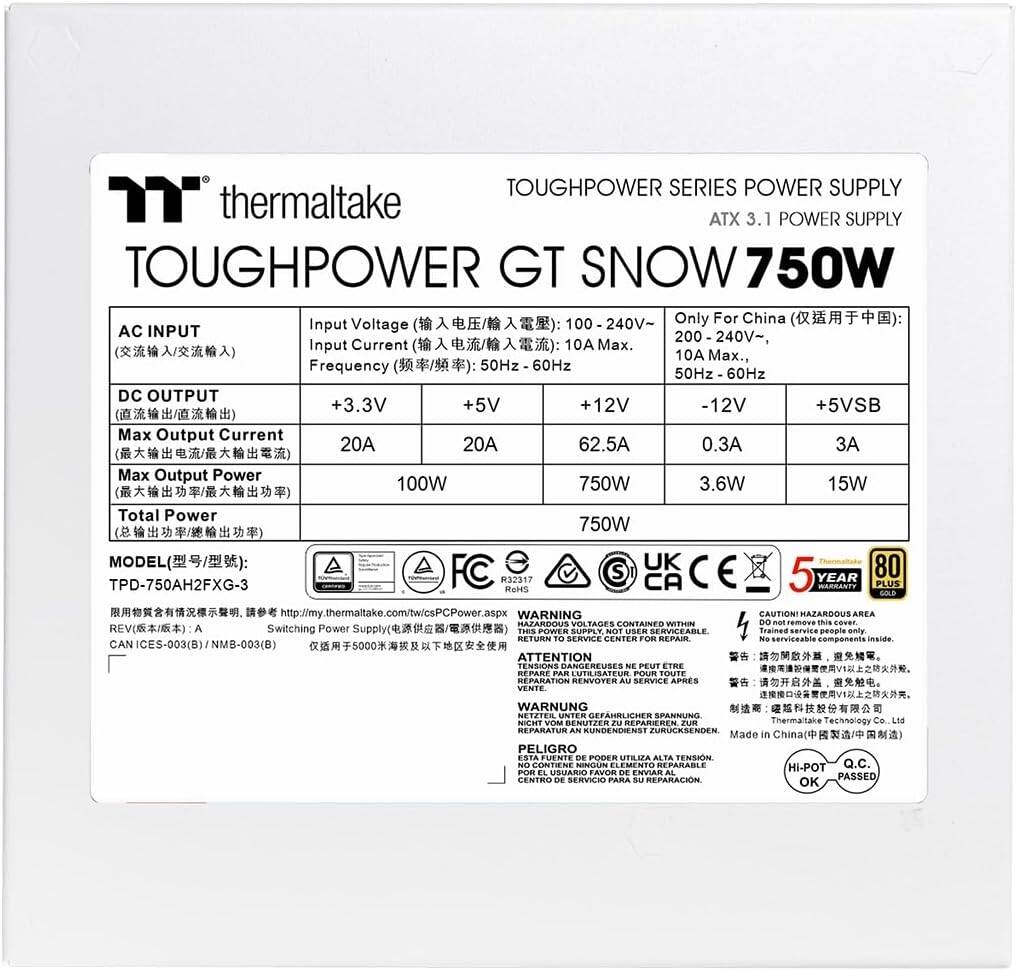

Specifications
| Watts |
750W |
| Max. Output Capacity |
750W |
| Color |
Black |
| Dimension (W/H/D) |
150mm(W) ? 86mm(H) ? 140mm(D) |
| PFC (Power Factor Correction) |
Active PFC |
| Power Good Signal |
100-250 msec |
| Hold Up Time |
> 17msec at 80% load |
| Input Current |
10A Max. |
| Input Frequency Range |
50Hz-60Hz |
| Input Voltage |
100-240V? |
| Operating Temperature |
0?C to +40?C |
| Operating Humidity |
5% to 85%, non-condensing |
| Storage Temperature |
-40?C to +70?C |
| Storage Humidity |
5% to 95%, non-condensing |
| Cooling System |
12cm Hydraulic bearing fan |
| Efficiency |
Meets 80 PLUS? Gold at 115Vac input |
| MTBF |
100,000 hrs minimum |
| Safety Approval |
CE, UKCA, ICES, TUV, LVD, RCM, CB, FCC, cTUVus, BSMI, CCC, BIS, S-MARK |

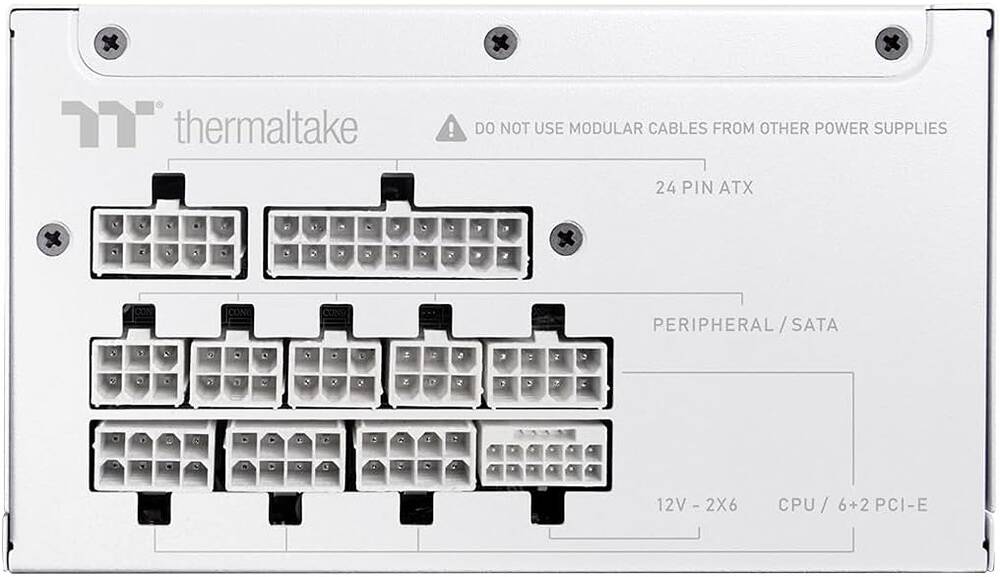

| PCI-E 6+2pin |
4 |
| PCIe 12+4pin |
1 |
| Protection |
OVP, UVP, OCP, OPP, OTP, SCP |
