80 PLUS Gold certified, fully modular PSU, compatible with ATX 3.1 specifications, and equipped with a native 12V-2×6 connector.
Specifications
| General | |
| Watts | 850W |
| Model | TPD-850AH2FXG-3 |
| Max. Output Capacity | 850W |
| Color | Black |
| Dimension (W/H/D) | 150mm x 86mm x 140mm |
| Electrical Specifications | |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-250 msec |
| Hold Up Time | > 17msec at 80% load |
| Input Current | 10A Max. |
| Input Frequency Range | 50Hz – 60Hz |
| Input Voltage | 100-240V? |
| Operating Conditions | |
| Operating Temperature | 0?C to +40?C |
| Operating Humidity | 5% to 85%, non-condensing |
| Storage Temperature | -40?C to +70?C |
| Storage Humidity | 5% to 95%, non-condensing |
| Cooling & Efficiency | |

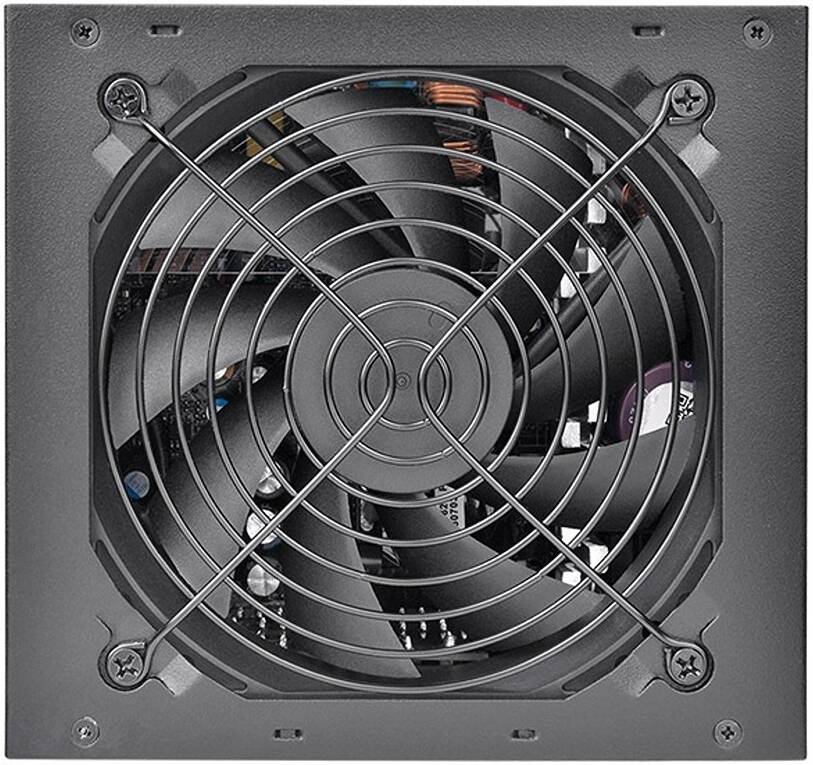

| Cooling System | 12cm Hydraulic bearing fan |
| Efficiency | Meets 80 PLUS? Gold at 115Vac input |
| MTBF | 100,000 hrs minimum |
| Safety & Protection | |
| Safety Approval | CE, UKCA, ICES, TUV, LVD, RCM, CB, FCC, cTUVus, BSMI, CCC, BIS, S-MARK |
| Protection Features | OVP, UVP, OCP, OPP, OTP, SCP |

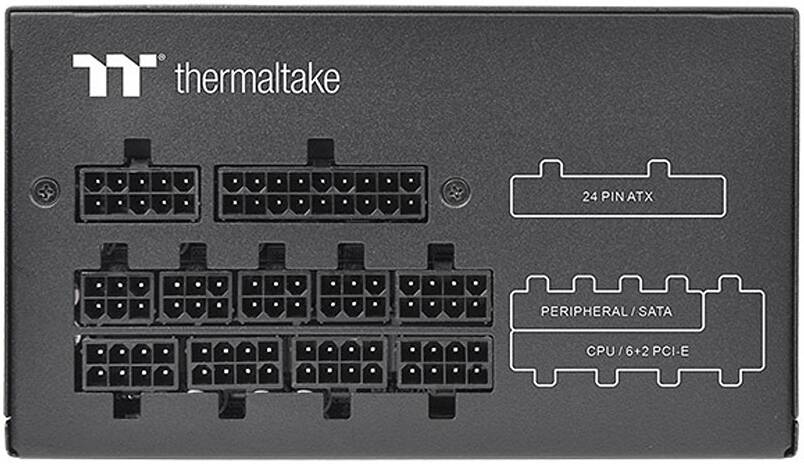

| Connectors | |
| PCI-E 6+2 pin | 4 |
| PCIe 12+4 pin | 1 |
