| Socket | AMD AM5 (Ryzen 9000/8000/7000 series) |
|---|---|
| Chipset | AMD B850 Chipset |
| Memory |
4 x DIMM slots, max. 256GB, DDR5 Dual Channel Memory Architecture |
| Graphics |
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports 4K@60Hz as specified in HDMI 2.1. *** VGA resolution support depends on processors' or graphic cards' resolution. 1 x HDMI™ port** |
| Expansion Slots |
1 x PCIe 4.0 x16 slot (supports x4/x2 mode) 1 x PCIe 5.0 x16 slot (supports PCIe 4.0 x4 mode) 1 x PCIe 5.0 x16 slot (supports PCIe 4.0 x8 mode) 1 x PCIe 5.0 x16 slot (supports x16 mode) |
| Ethernet |
1 x Realtek 5Gb Ethernet ASUS LANGuard |
| Bluetooth | v5.4 |
| USB |
1 x USB 20Gbps connector (1 x USB Type-C®) 2 x USB 2.0 port(s) (2 x Type-A) 2 x USB 5Gbps header(s) support(s) 4 additional USB 5Gbps ports 3 x USB 2.0 header(s) support(s) 6 additional USB 2.0 ports 4 x USB 10Gbps port(s) (2 x Type-A + 2 x USB Type-C®) 6 x USB 5Gbps port(s) (6 x Type-A) |
| Audio |
– Audio cover – Dedicated audio PCB layers – High quality 120 dB SNR stereo playback output and 110 dB SNR recording input – Impedance sense for front and rear headphone outputs – Premium audio capacitors – Rear optical S/PDIF out port – Savitech SV3H712 AMP – Supports up to 32-Bit/384 kHz playback on front panel – Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking – SupremeFX Shielding Technology ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Back Panel I/O Ports |
1 x BIOS FlashBack™ button 1 x Clear CMOS button 1 x HDMI™ port 1 x Optical S/PDIF out port 1 x Realtek 5Gb Ethernet 1 x Wi-Fi Module 2 x Audio jacks, 1 x Optical S/PDIF out 2 x USB 2.0 port(s) (2 x Type-A) 4 x USB 10Gbps port(s) (2 x Type-A + 2 x USB Type-C®) 6 x USB 5Gbps port(s) (6 x Type-A) |
| BIOS | 64MB (512Mb) Flash ROM, UEFI AMI BIOS |
| Operating System | Windows 11 (22H2 & later) |
| Form Factor |
ATX 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) ATX Form Factor |

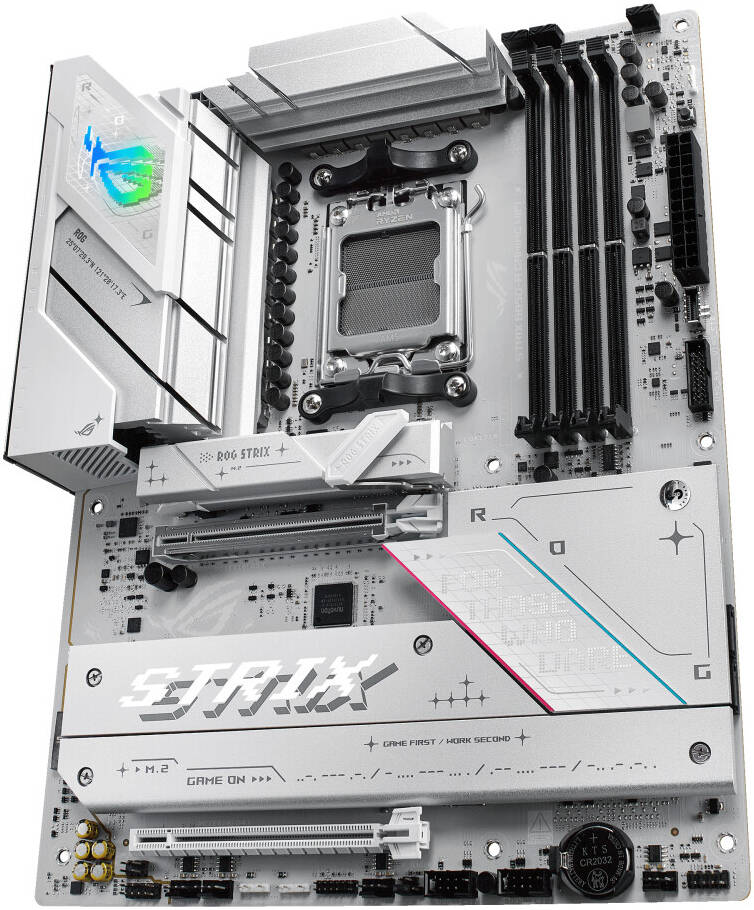

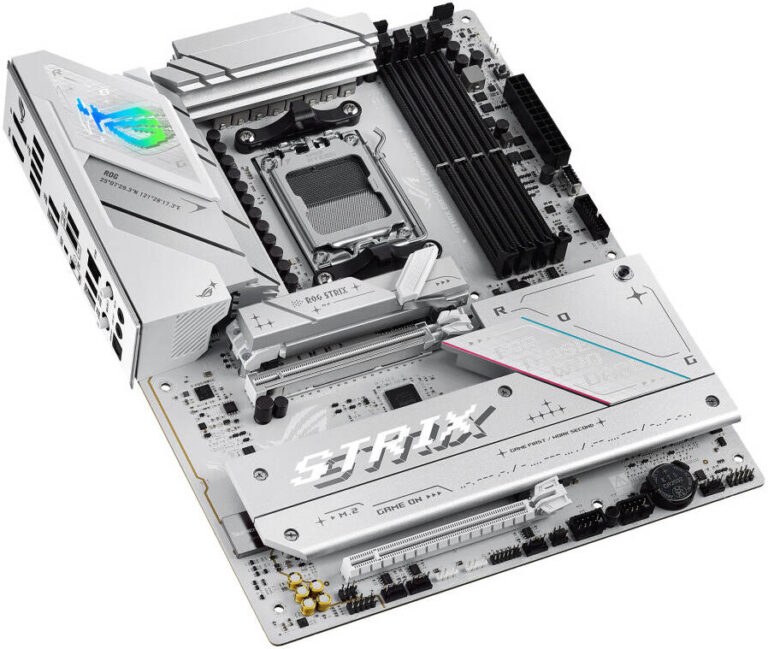

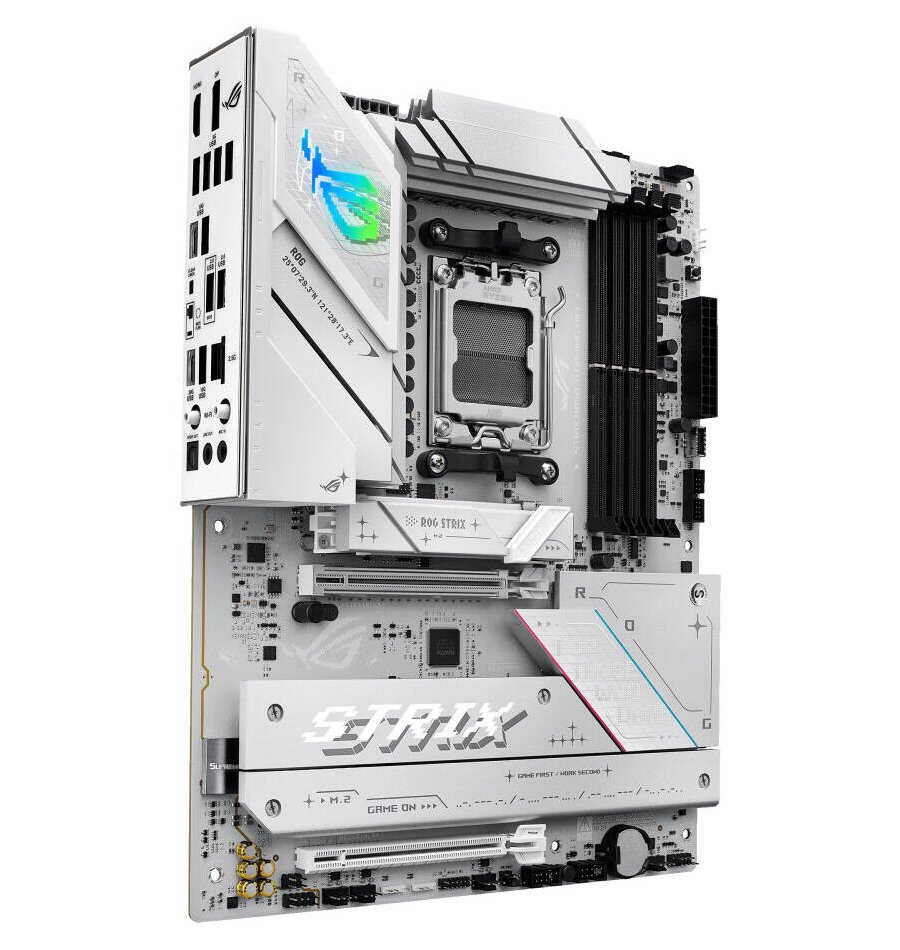

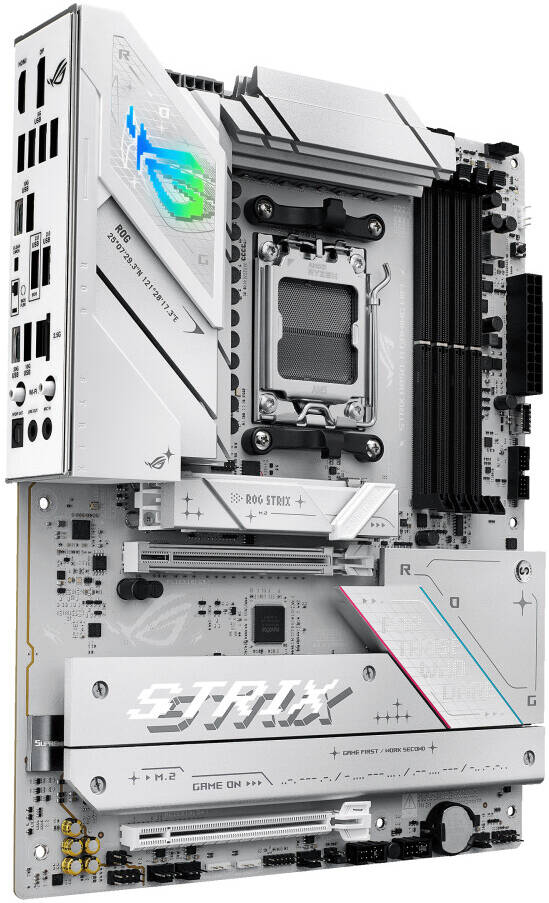

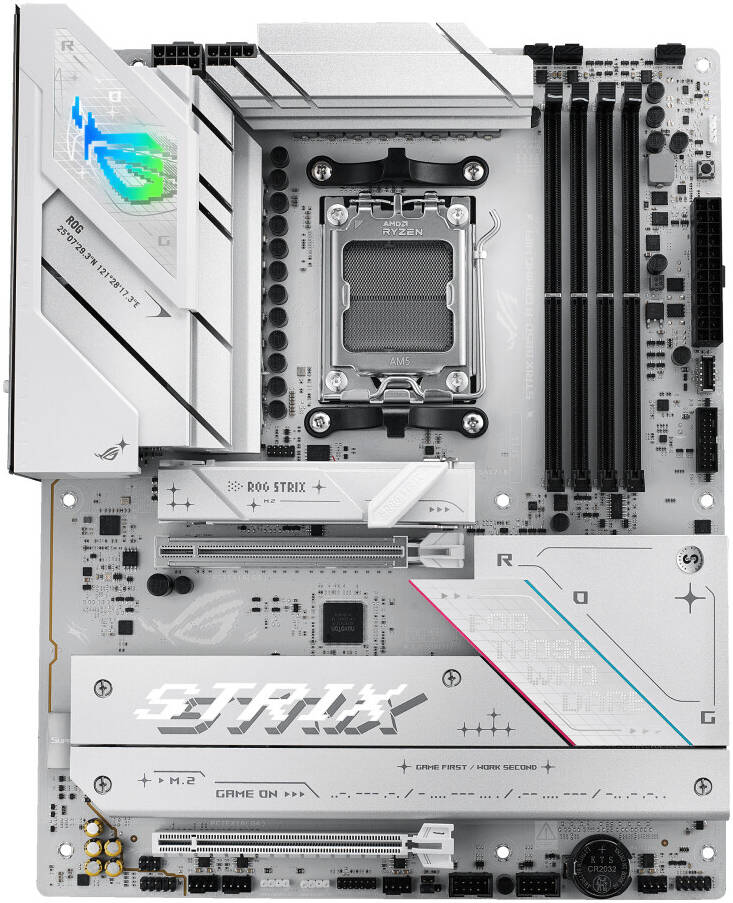

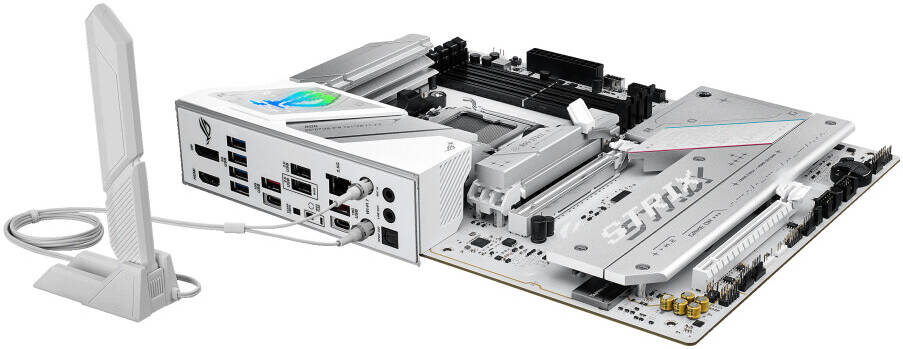

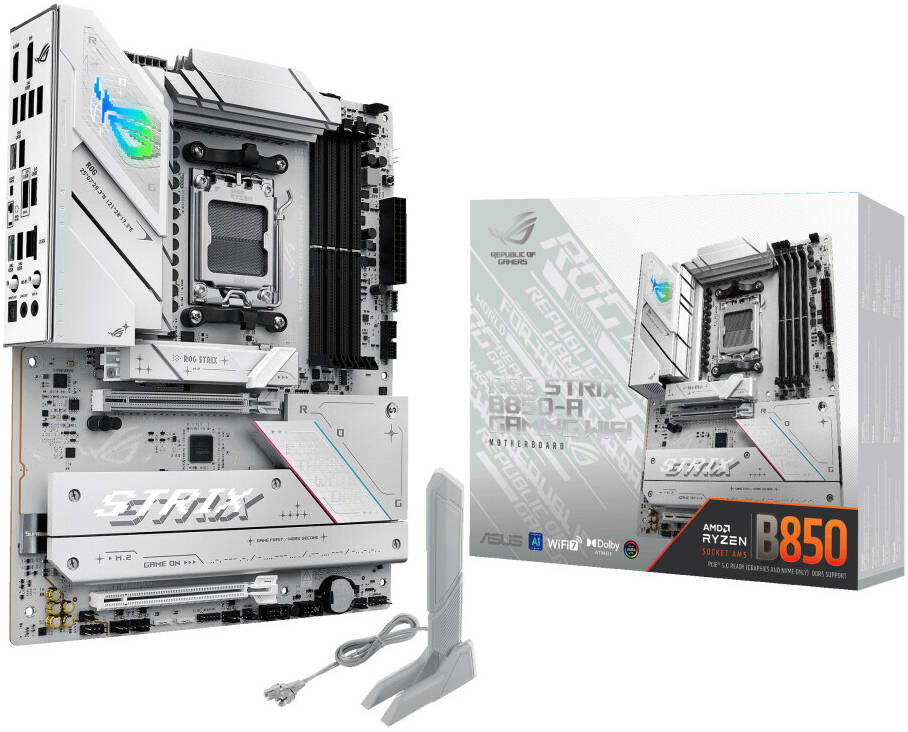

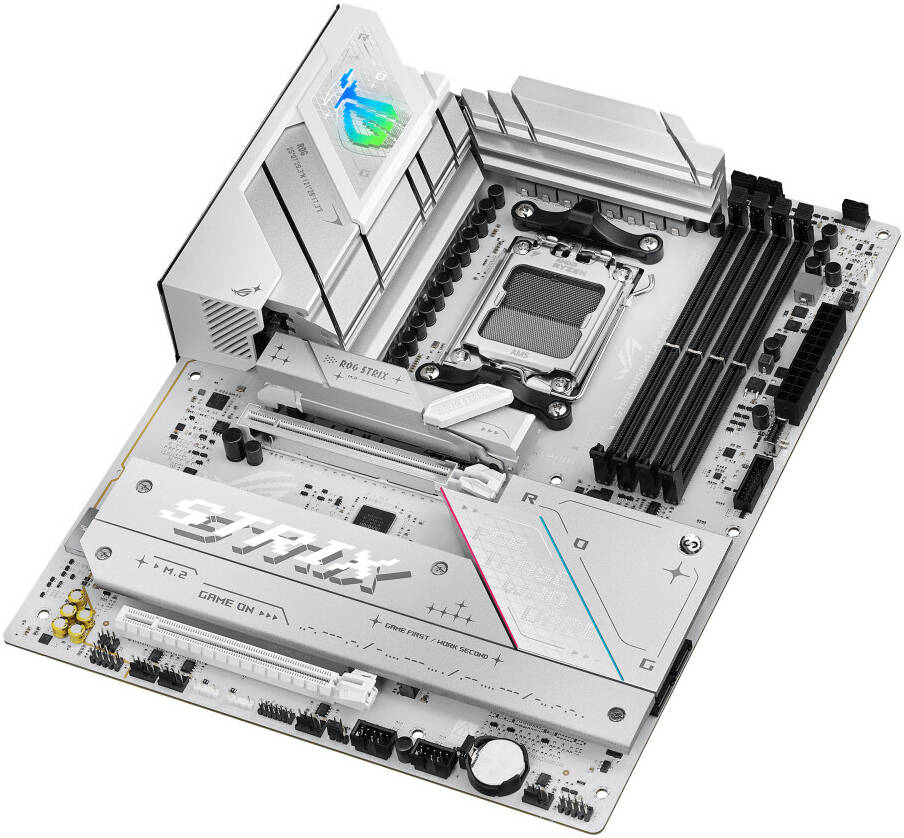

AMD B850 ATX motherboard with 14+2+2 power stages, DDR5 support with AEMP, WiFi 7 with ASUS WiFi Q-Antenna, four M.2 slots, PCIe? 5.0 x16 SafeSlots with PCIe Slot Q-Release Slim, USB 20Gbps Type-C?, USB 10Gbps Type-C?, ASUS AI Advisor, AI Networking II, and Aura Sync RGB lighting.
Specifications
| Model | ROG STRIX B850-A GAMING WIFI |
| CPU | AMD Socket AM5 for Ryzen? 9000, 8000 & 7000 Series Desktop Processors |
| Chipset | AMD B850 Chipset |
| Memory | 4 DIMM slots, max 192GB DDR5, up to 8000+ MT/s (OC), ECC and Non-ECC, Dual-channel, EXPO? & AEMP supported. |
| Graphics | 1 DisplayPort (8K@30Hz), 1 HDMI? (4K@60Hz) |
| Expansion Slots | 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, PCIEX16(G4) shares bandwidth with M.2_3. |
| Storage | 4 M.2 slots, 2 SATA 6Gb/s ports, RAID 0/1/5/10 (varies by processor). |
| Ethernet | 1 x Intel? 2.5Gb Ethernet, ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (802.11be), 2×2 up to 2.9Gbps, Bluetooth? v5.4 |
| USB (Rear) | 1 x USB 20Gbps (Type-C?), 3 x USB 10Gbps, 4 x USB 5Gbps, 2 x USB 2.0 |
| USB (Front) | 1 x USB 10Gbps (Type-C?), 1 USB 5Gbps header, 2 USB 2.0 headers (support 4 ports) |
| Audio | ROG SupremeFX ALC4080, 7.1 Surround Sound, 120 dB SNR playback, Dolby Atmos, rear optical S/PDIF out. |

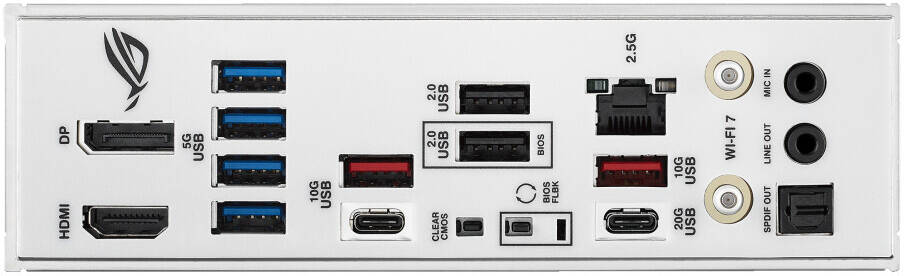

| Back Panel I/O Ports | USB (as above), 1 DisplayPort, 1 HDMI?, 1 Intel? 2.5Gb Ethernet, 2 audio jacks, optical S/PDIF, Wi-Fi module, BIOS FlashBack? & Clear CMOS buttons. |
| Internal I/O | 1 x CPU Fan header, 1 CPU OPT, 1 AIO Pump, 4 chassis fans, 3 Addressable Gen 2 headers, storage & USB connectors, Clear CMOS header, thermal sensor, Thunderbolt? header. |
| Special Features | Q-Design, Aura Sync, SafeSlot, pre-mounted I/O shield, BIOS FlashBack?, ProCool, thermal solutions, SafeDIMM. |
| Software Features | Armoury Crate, Aura Creator, Fan Xpert 4, Dolby Atmos, Norton 360 (60-day trial), Adobe Creative Cloud trial, ASUS DriverHub, UEFI BIOS EZ Mode. |
| Accessories | 2 SATA cables, ASUS WiFi Q-Antenna, cable ties, ROG keychain, stickers, M.2 rubbers, Quick Start Guide. |
| Operating System | Windows 11 |
| Form Factor | ATX (12″ x 9.6″ / 30.5 cm x 24.4 cm) |
