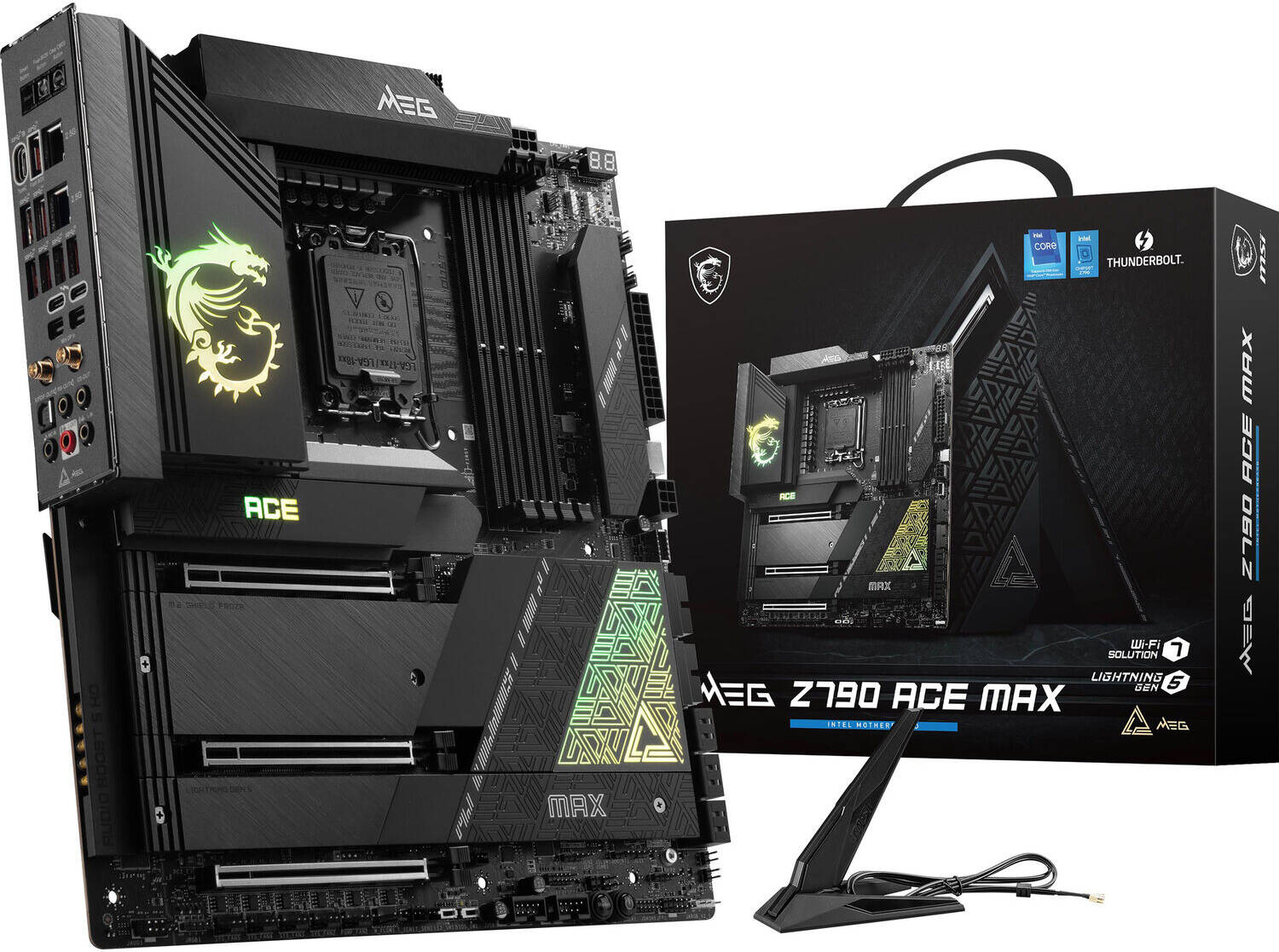

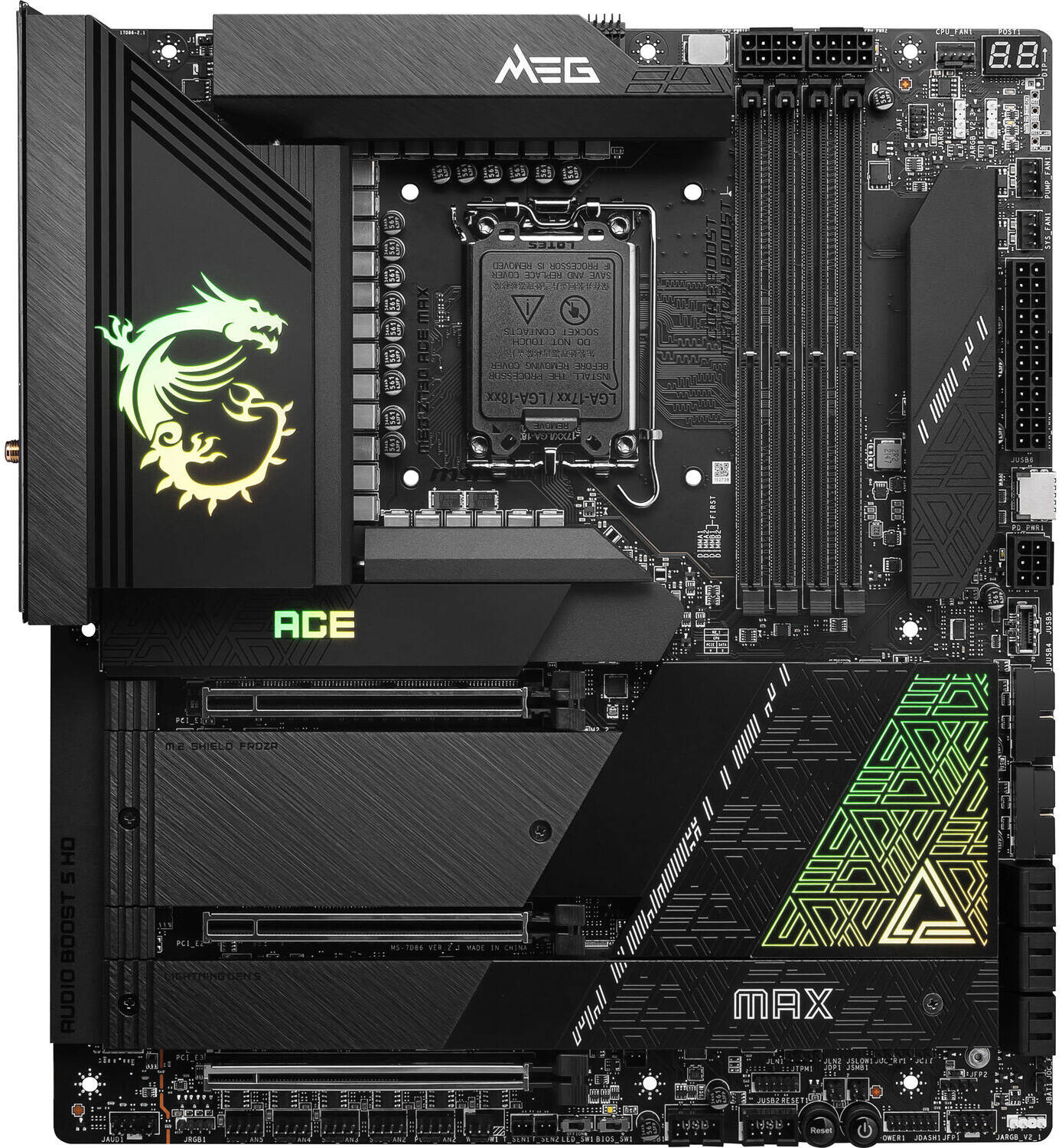

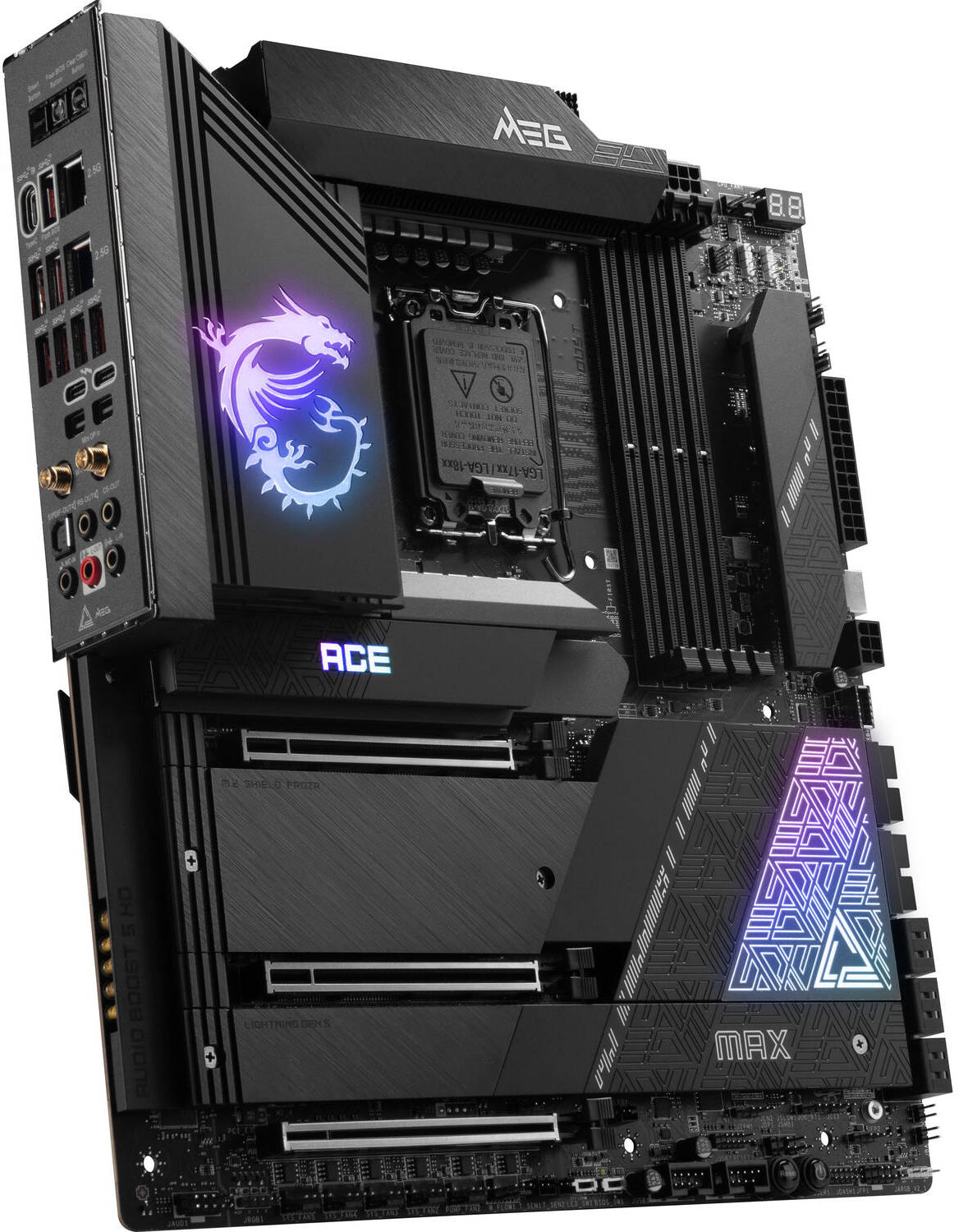

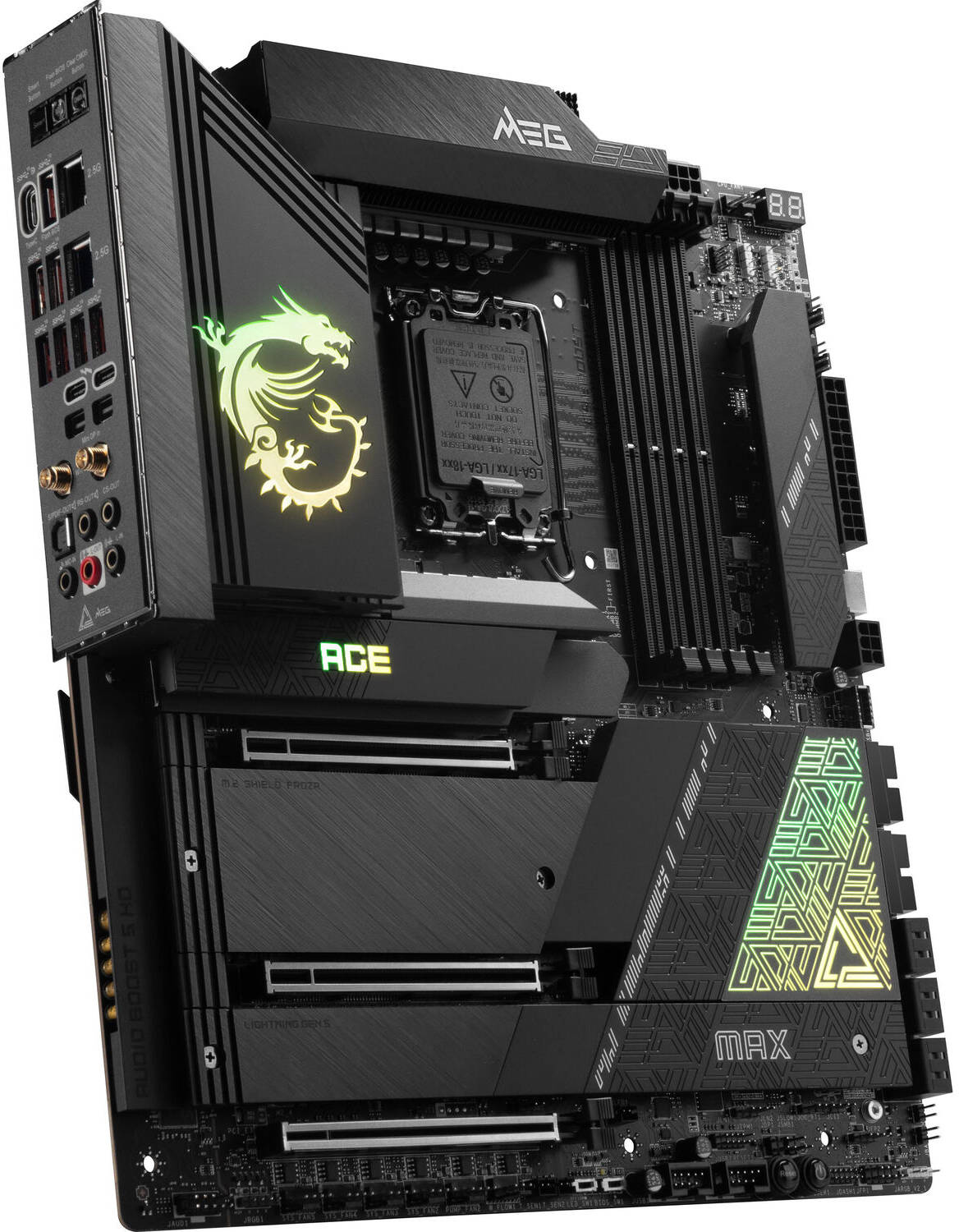

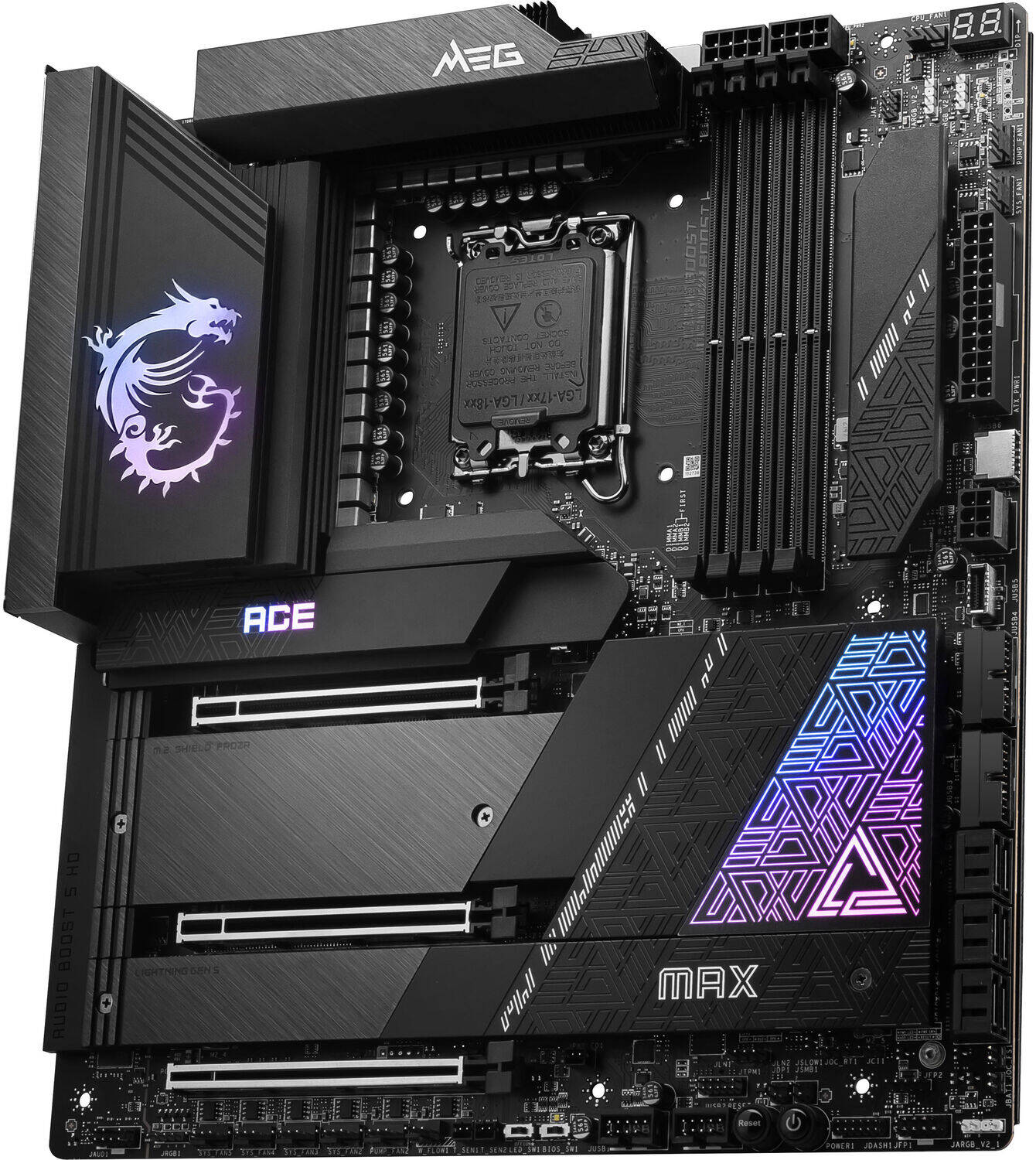

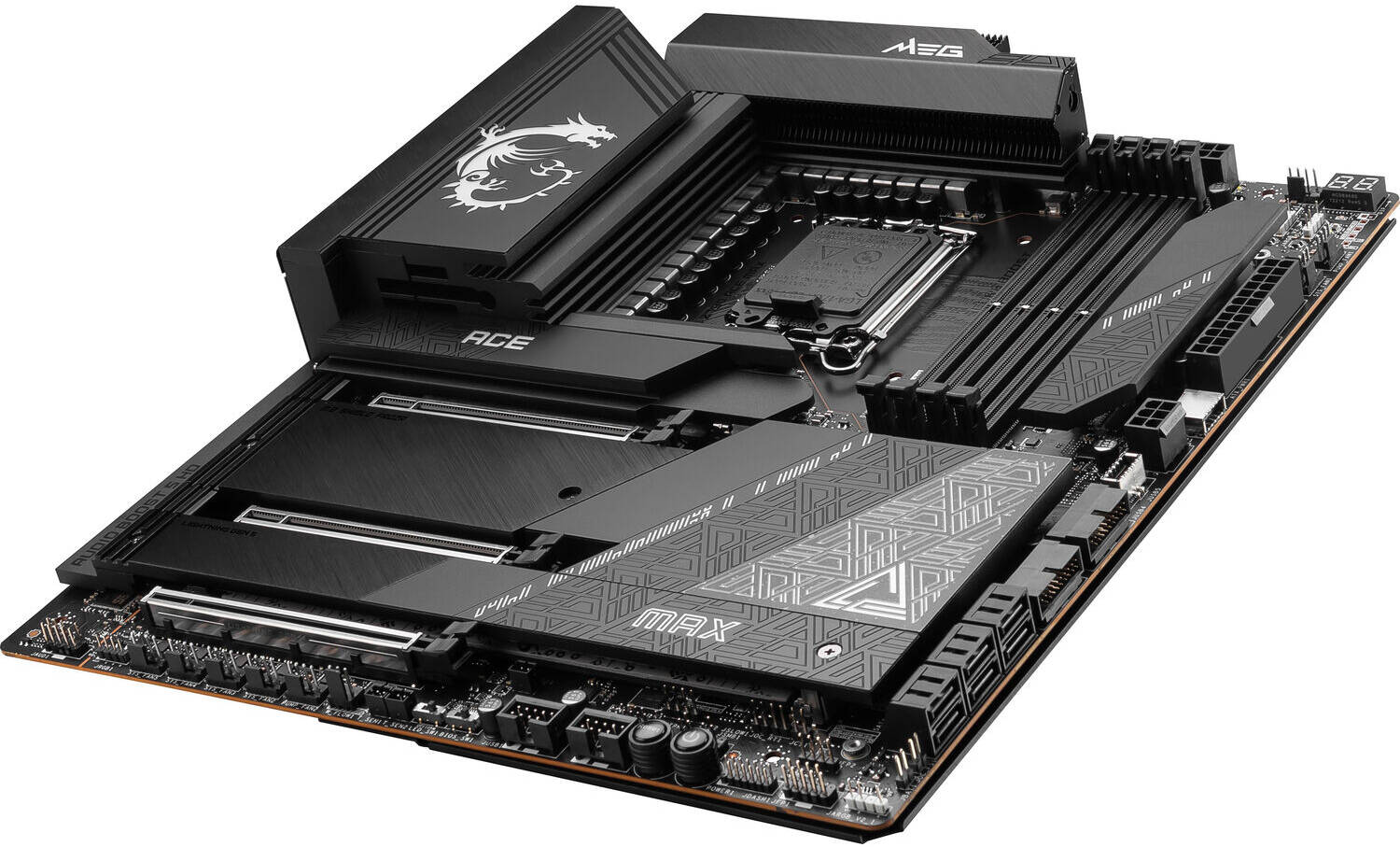

MSI MEG Z790 Ace Max WIFI 7 E-ATX Motherboard (LGA 1700) – Features Intel Z790 chipset, 4x DDR5 slots (up to 192GB), 5x M.2 slots, dual 2.5G LAN, Wi-Fi 7, and multi-GPU support. Model: 911-7D86-006/-008.

Unleash the power of gaming with MEG Z790 ACE MAX. Boasting premium aesthetics featuring a sleek black finish and silver embellishments, this E-ATX gaming motherboard takes Intel®’s 14th Gen and 13th Gen Core processors to new heights. With exceptional hardware support and durability, it thrives in extreme settings, pushing boundaries in processor overclocking, DDR5 memory, and graphics card (GPU) performance. Elevate your gaming experience with MEG Z790 ACE MAX.

Features

• Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket

• Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC)

• Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.

• Extreme Power Design: 24+1+2 phases power design with 105A Smart Power Stage and dual CPU power connectors are ready to unleash the maximum performance.

• Outstanding Cooling Solution: Stacked Fin Array, Direct Touch Cross Heat-pipe, Aluminum Backplate, 7W/mK thermal pads, Double-sided M.2 Shield Frozr and Frozr AI software ensure the extreme performance with low temperature.

• Latest Wi-Fi 7 solution: The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.

• Dual 2.5G LAN: Onboard dual 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN, delivering the best online gaming experience.

• Maximum 5 x M.2 Connectors: Onboard quintuple M.2 connectors including one PCIe 5.0 solution for the maximum storage performance. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.

• Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Dual Front USB 3.2 Gen 2×2 20G with one 60W USB Power Delivery.

• DIY Friendly Design: Patented Magnetic & Screwless M.2 Shield Frozr, EZ M.2 Clips, EZ Antenna, Smart Button, Pre-installed I/O Shield, Steel Armor

• Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience
