ASUS Prime H610M-K D4 Intel LGA 1700 DDR4 Micro-ATX Motherboard

ASUS Prime H610M-K D4 Intel LGA 1700 DDR4 Micro-ATX Motherboard image-3

ASUS Prime H610M-K D4 Intel LGA 1700 DDR4 Micro-ATX Motherboard image-2

ASUS Prime H610M-K D4 Intel LGA 1700 DDR4 Micro-ATX Motherboard – 90MB1A10-M0EAY0

279.00 AED

Expected Delivery N/A

SKU: N/A

Model Number: N/A

Compare

Remove

279.00 AED

Expected Delivery N/A

50 in stock

Quantity:

Payment Methods:

Model	PRIME H610M-K D4
CPU	Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® ProcessorsSupports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Refer to www.asus.com for CPU support list. Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel® H610 Chipset
Memory	2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered MemoryDual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP) Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.
Graphics	1 x D-Sub port1 x HDMI® port* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots	Intel® Core™ Processors (14th & 13th & 12th Gen)*1 x PCIe 4.0 x16 slotIntel® H610 Chipset1 x PCIe 3.0 x1 slot
Storage	Total supports 1 x M.2 slot and 4 x SATA 6Gb/s portsIntel® H610 ChipsetM.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)4 x SATA 6Gb/s ports* The M.2 slot shares bandwidth with the SATA6G_4 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_4 port cannot be used.
Ethernet	1 x Realtek 1Gb Ethernet
USB	Rear USB (Total 6 ports)2 x USB 3.2 Gen 1 ports (2 x Type-A)4 x USB 2.0 ports (4 x Type-A)Front USB (Total 4 ports)1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports1 x USB 2.0 header supports additional 2 USB 2.0 ports
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Dedicated audio PCB layers A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports	2 x USB 3.2 Gen 1 ports (2 x Type-A)4 x USB 2.0 ports (4 x Type-A)1 x D-Sub port1 x HDMI® port1 x Realtek 1Gb Ethernet port3 x Audio jacks1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors	Fan and Cooling related1 x 4-pin CPU Fan header1 x 4-pin Chassis Fan headerPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connectorStorage related1 x M.2 slot (Key M)4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports1 x USB 2.0 header supports additional 2 USB 2.0 portsMiscellaneous1 x RGB header1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x S/PDIF Out header1 x Speaker header1 x SPI TPM header (14-1pin)1 x 10-1 pin System Panel header
Special Features	ASUS 5X PROTECTION III- DIGI+ VRM- LANGuard- Overvoltage Protection- SafeSlot Core- Stainless-Steel Back I/OASUS Q-Design- Q-DIMM- Q-SlotASUS Thermal Solution- Aluminum heatsink designASUS Lighting Control- RGB header
Software Features	ASUS Exclusive SoftwareArmoury CrateAI Suite 3- Performance And Power Saving UtilityTurboV EVOEPUDIGI+ VRMFan XpertASUS CPU-ZNorton Anti-virus software (Free Trial version)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE

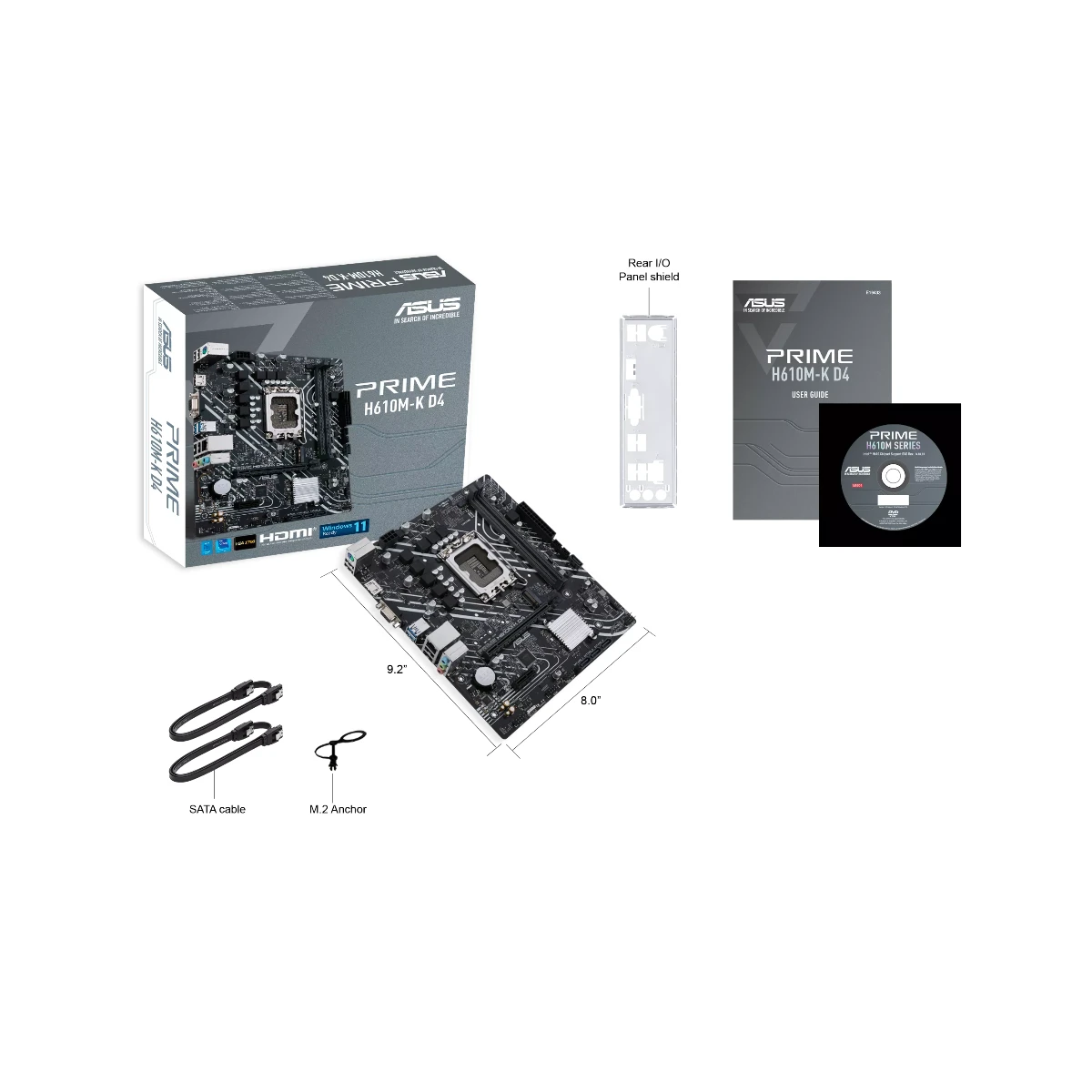

Accessories	Cables2 x SATA 6Gb/s cablesMiscellaneous1 x I/O Shield1 x M.2 ANCHORInstallation Media1 x Support DVDDocumentation1 x User Guide
Operating System	Windows® 11 64-bit, Windows® 10 64-bit
Form Factor	mATX Form Factor9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )

The ASUS Prime H610M-K D4 Intel LGA 1700 DDR4 Micro-ATX Motherboard is a dependable foundation for modern PC systems in United Arab Emirates. Powered by the Intel® H610 chipset, it supports 14th, 13th, and 12th Gen Intel® Core™ processors, along with Pentium® Gold and Celeron® CPUs, delivering stable and efficient performance for home, office, and entry-level gaming setups.

With 2 DIMM slots, this motherboard supports up to 64GB DDR4 memory with speeds up to 3200MHz (depending on CPU), ensuring smooth multitasking and responsive system performance. The PCIe 4.0 x16 slot allows you to install modern graphics cards for enhanced visuals, while an additional PCIe 3.0 x1 slot provides flexibility for expansion devices.

For storage, the board includes 1 x M.2 slot (PCIe 3.0 x4 & SATA mode) and 4 x SATA 6Gb/s ports, giving users in United Arab Emirates versatile options for SSDs and HDDs. Networking is handled by Realtek 1Gb Ethernet, ensuring stable wired connectivity for work and entertainment.

Display connectivity includes HDMI® with 4K@60Hz support and a D-Sub port, making it compatible with both modern and legacy monitors. The motherboard also features Realtek 7.1 Surround Sound HD Audio, enhanced with audio shielding and dedicated PCB layers for clear and immersive sound output.

Built with ASUS 5X Protection III, including DIGI+ VRM, LANGuard, Overvoltage Protection, and SafeSlot Core, this motherboard ensures durability and long-term reliability. Its compact mATX form factor (23.4 cm x 20.3 cm) makes it perfect for space-saving PC builds across United Arab Emirates.
